1. Application

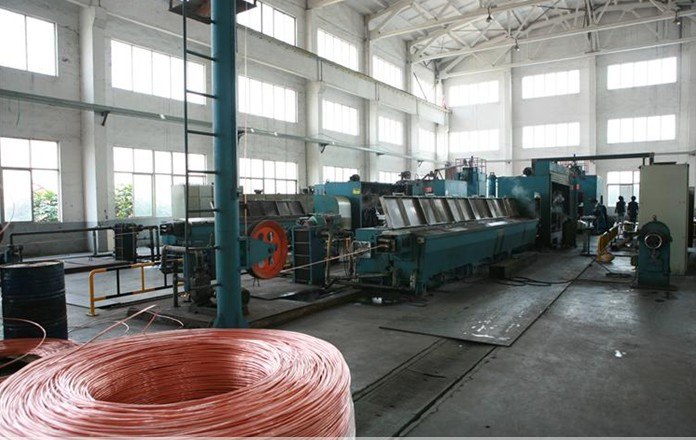

This machine is used to draw copper rod in diameter of 8mm to copper wire in diameter of 1.35mm-4.0mm. Drawing capstan adopts linear horizontal arrangement, with continuous drawing and continuous annealing. Machine speed matches with the electrical speed, which achieves quick die changing and automatic bobbin shift without pause. This machine takes advantage of easy operation, high production efficiency and high product quality.
2. Composition
It is composed of pay-off stand, drawing host, wire continuous annealer, dual take-up (or coiler), wire pointer and stripper, vapour generator and electric control system.
3. Features
3.1 In horizontal layout, modular combination simplifies the equipment in assembly and installation.
3.2 Driven by double motors achieves fast die-changing system.
3.3 Driven by precise bevel gear with high performance, high efficiency and low noise.
3.4 A fully immerging emulsion system ensures effective cooling and lubricating for wire and dies.
3.5 A horizontal two-section DC annealer, easy for threading.
3.6 Automatic dual spooler achieves high automation and production efficiency.
| Input wire Dia. (mm) | 8.0 |
| Output wire Dia. (mm) | 2.0-3.5 |
| Max. outlet speed (m/s) | 18 |
| Drawing pass | 9 |
| Main motor (kw, DC) | 220 |
| Max. annealing speed (m/s) | 18 |
| Max. annealing voltage (V) | 60 |
| Max. annealing current (A) | 6000 |
| Accumulating wire length (m) | 7.8 |
| Max. take-up speed | 25 |
| Take-up bobbin | PND500/630 |
| Total weight (KG) | 46000 |
| Overall dimension | 25000x4400x4500 |
