Light Weight Block Making Machine

Light Weight Block Making Machine
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
AAC block is made of fly ash, lime, cement and aluminum powder, and with the procedures of crushing, measuring, mixing, pouring, autoclaving and cutting. AAC block has advantages of extremely light weight, excellent thermal insulation, heat insulation, energy conservation, waste recycling, convenience etc. As a new building material, AAC block is emphatically promoted by the world.

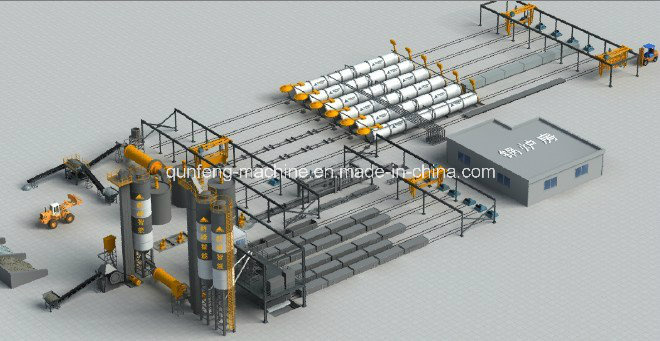

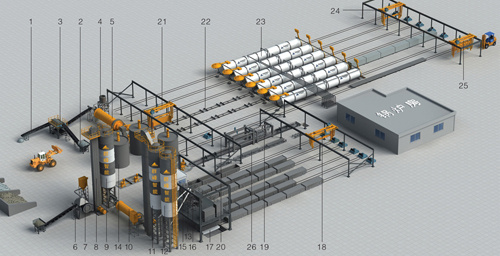

AAC Block Production Line
(01) Belt Conveyor
(02) Batching Machine
(03) Roller Screen
(04) Grinding Head Silo
(05) Wet Ball Mill
(06) Jaw Crusher
(07) Dust Catcher
(08) Bucker Elevator
(09) Silo For Coarse Lime
(10) Dry Ball Mill
(11) Silo For Fine lime
(12) Cement Silo
(13) Screw Conveyor
(14) Slurry Storage Tank
(15)  Weighing Hopper For Slurry
(16), Weighing Hopper For Lime And Cemen
(17)Ferry Cart
(18) Turning Crane
(19) Vertical Cutting Machine
(20) Horizontal Cutting Machine
(21) Turning & Grouping Crane
(22) Curing Cart
(23) Autoclave
(24) Finished Product Crane
(25) Block Clamping Machine
(26) Winch For Side Plate Return

Technological process:

1. First, dose and match measured raw materials;
2. After distributing, feed raw material into pouring mixer to make slurry.

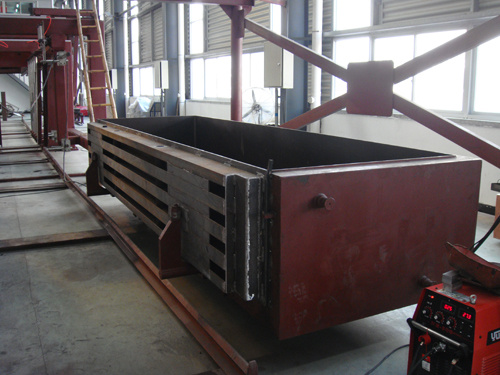

3. Through thoroughly mixing, the slurry is poured to mould; ,
4. After pre-curing under a certain temperature and time, the block would reach a certain hardness and prepare for cutting;
5. Tilting hoister would turn over 90 degrees of mould;

6. Then open the mould and separate it from block. And take the block with side plate to the cutting cart;

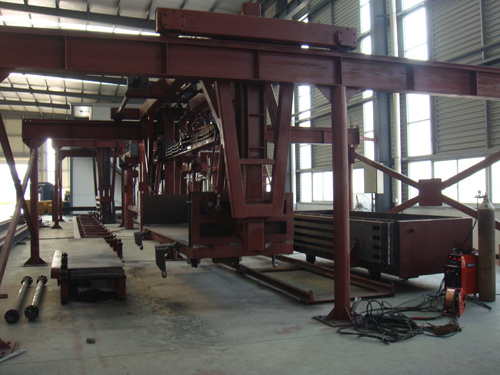

7. Firstly, the cutting machine vertical cuts blocks from both sides.

8. Secondly the horizontal cutting;
9. Finally the vertical cutting;
10. After cutting, the block is hanged to trolley with side plate by semi-finished product hoister;

11. Organizing the cut blocks and put them into autoclaves;
12. Hardening the blocks under certain temperature and pressure;
13. Carry the finished product out of autoclave
14. The finished product hoister take the finished product to stock shield;
15. Packed for loading;

16. The side plate return back through side plate roller;
17. Side plate would be organized with open mould; .
18. Clean the mould and prepare for next pouring;
19. Steel bars processing line for slab production.
AAC Block Production Line
AAC Block Production Line
Prod Model: 50, 000CBM/year
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Productivity: 150㎡/h
Condition: New
Machining Process: Brick Production Line
Certification: ISO9001: 2000
Type: Light Weight Block Making Machine
1. Specializing in R & D, manufacturing and vendition and after-sale service.
2. The production base with total investment at 52 million USD, covering 186, 081 m2.
3. Assembly and commissioning workshop cover 36, 000 m2, with Various types of CNC equipment in high automation.
4. Mould workshop cover 18, 000m2, with a Heat treatment equipment in Germany technology, highly improve the quality and lifespan of mould.
5. Providing comprehensive technical service, including: investment proposal, construction planning, quality warranty, after-sales service, problem-solving, free training etc.
6. With office and spare parts warehouse in Brazil, Qatar, Algeria, India and South Africa;
7. More than 50 technicians working overseas providing after-sales service support for customers.
8. With CE Certificate;
9. With 50 national patents
10. Involved in the drafting and revision of more than 10 national industry standards;
11.65% of orders from overseas;
12. Our Machine working well in 106 countries and area;
13. Over 7000 customers worldwide.
