Lightning Protection Exothermic Welding Mould
| Price: |
US $ 56-65/Piece |
| Trade Terms: |
EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Paypal,Western Union |

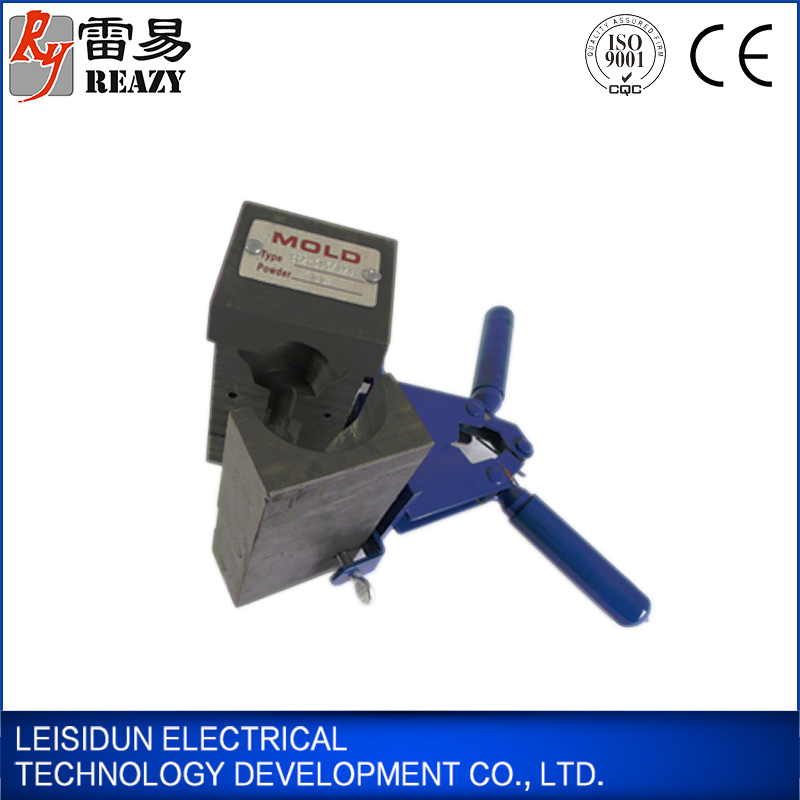

Lightning Protection Exothermic Welding Mould
Exothermic chemical reaction using a solvent as a heat source, produce High temperature (instantaneous temperature reaches 2787 degrees heat) and by welding the weld mode to achieve the purpose of welding, it does not need to provide power. It is the best method of welding metal conductor. Can complete fusion between the same or different copper and coppe, copper and steel, to the true binding molecule, welding effect become permanent maintenance.
Exothermic Welding explaination:
Exothermic welding is one kind of exothermic welding methods which use super high heat produced by chemical reaction (exothermic reaction) to complete welding. Exothermic welding is also called as fireclay fusion joining, fireclay fusion welding, exothermic fusion welding, exothermic welding, chemical heat fusion welding, etc. Chemical reaction rate for exothermic welding is so fast that it only needs a few seconds to complete welding. Produced super high heat can effectively conduct to fusion part so that it is melted to form bonded molecular. No other heat is required. It is the best method to weld metal conductor for ground circuit. See IEEE std.80-1976. Exothermic welding mainly weld pure copper, brass, bronze, copper, copper-clad steel, pure iron, stainless steel, ductile iron, zinc plated steel, cast iron, copper alloy, alloy steel and etc. Welding materials produced by our company are safe, nontoxic and friendly environmental since they do not use phosphor and dangerous chemicals easily producing metal toxic gasses used by other flux. Gasses produced by reaction are CO2 and H2O so that there are no occupational diseases risks for operators and emission gasses has no pollution to atmosphere. Our company adopts unique formula with delay reactant, pore removal agent, residue resistant agent, etc. to effectively assure welding mould / mold quality and personnel operation safety. welding mould
Contact Information:
Mobile: +86 18928709691
| Prod Model: |
RY-HM-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
85*85*170mm, 95*95*195mm, 100*100*220mm |
| Advantage: |
Exothermic Weld Materials Is Safety and No Polluti |
| Core Material: |
Graphite |
| Corrosion Resistant: |
Strong |
| OEM: |
Yes |
| Factary Add: |
Guangzhou, Guangdong, China |
| Precision: |
High Precision |
| Certification: |
CE |
| Demoulding: |
Pull Core |
| Heating System: |
Electric |
| Function: |
High Temperature Resistance |
| Mould Life: |
>1,000,000 shots |
| Automatic Grade: |
Semiautomatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
24 Months |
Guangzhou leisidun Electrical Technology Development Co., Ltd is located in Suite 3, NO. 15 Dong sheng Road, Cha dong village, Da long Avenue, Pan yu district, Guangzhou. Company is specialized in lightning protection grounding products, lightning tower, electrical equipment research and development, production, sales, design, construction, technical consultation and so on integrated companies. Company technical force is abundant, has a group of outstanding technical staff, product development engineers, and engineering construction practice, strict scientific management, with quick and clever response speed, strictly implement the ISO9001: 2000 quality management system, to ensure the sustainable development of the product quality and product development technology, always in the same industry leading position. Company with many domestic research institute, power grid companies, ZhongTieJian company, sinopec, telecommunications construction company...Companies such as a long-term technological exchanges and business cooperation, and cooperation with many domestic colleges and universities set up talent and technology, for domestic and foreign customers to provide professional grounding grounding engineering products and overall solutions.
The company's production area and office area of 2100 square meters, independent research and development production of anti-corrosion type constant drag reduction agent, grounding module, heat flux, copper plating, ion grounding type, cold drawn steel grounding copper clad steel grounding pole, zinc, copper clad steel compound grounding plating steel strand have had its wuhan high voltage research institute, "the 5th electronics research institute, the ministry of industry and information technology and the SGS international certification authority" product inspection report ", products are widely used in substation, power plants, wind farms, communication base station, subway station, oil depot, computer room, in areas such as financial data center, airport, high-rise building as important lightning proof grounding material.
The company spirit of "mutual trust, the pursuit of excellence, full of self-confidence, strive for the" spirit of enterprise and "the development of the cause lightning protection, the benefit of human society" the enterprise idea, with "excellent quality, reasonable price, perfect service" business purposes, continuously bring brand-new products and high quality service for the customer, to create a quality trustworthy "ray easy REAZY" brand. Company sincerely welcome your visit and look forward to pleasant cooperation with you, together create a new record, the new achievements of lightning proof grounding industry!
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will get back to you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
