Linear Cabinet Foaming Line

Linear Cabinet Foaming Line
Price: Negotiable
Min Order: 1

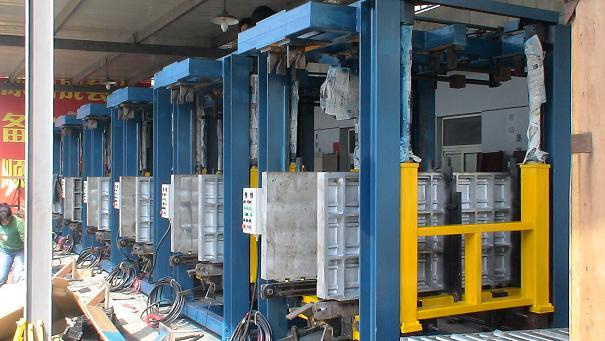

Linear Cabinet Foaming Line

Generally speaking, the line introduces linear confirguation with non-freon design and the hardening position as six-position. The line is composed with six units of cabinet-foaming fixture, a set of injecting manipulator, a set of both-way carrying car for loading & unloading cabinet, a set of water-heating system, a set of safety exhausting system, a set of safety system, a set of safety fencing together with electronic controlled system for the line. (Note: The safety fencing is built by buyer with the drawing and technical requirement giving by seller, all the equipments doesn't include molds)

This foaming line is designed only for refrigerator not for freezer. Because of the freezer inner is aluminium plate, and that refrigerator inner is ABS. The foaming mold of freezer is expand mold, and that the foaming mold of refrigerator is fixed mold. The expanding mold and jig outside should be make for freezer foaming in addition.

The line comprises several processes including loading, transporting, clumping, injecting, hardening, cabinet-unloading with characteristics of beautiful appearance, high production efficiency, low labour intensity and etc.

The main technical performance parameters
1. L*B*H: External dimensions of the line: 15000*18000*4000(for reference)
2. L*B*H: Specification of the cabinet: 800*800*1800(MAX size of refrigerator)
3. Foaming agent: POL+ISO type
4. Harden time: Adjustable
5. Mold temperature: 30--60degree temperature adjustable
6. Injecting pattern: Side of single-gun(opposite of the cabinet loading)horizontal injection
7. Working position: 8+8
8. Index of production: 60S(based on 5 min of the harden time)
9. Power supply: 380V, 50Hz, voltage: 24V of Control component outside the cabinet
10. Power capacity: 120KW(for reference)
Prod Model: 2000*1000*650
KCM Machinery Manufacturing Co., Ltd. is a professional plant special for providing sets of non-standard equipments and moulds of refrigeration production etc. In which including the complete procedure of designngi, manufacturing, installing and debugging etc. The company is a High-tech Enterprise of Anhui Province, Chuzhou Private Science&technology Enterprise and Manufacturing Trade Informationizing Model Enterprise. The company subdivides KCM Branch Plant(Nanjing) and Chuzhou headquarter who belonging to members of China Mould Industry Association, China Home Appliances Industry Association and China Machine Tools Industry Association. The company is located in Ecolomy Technology Development Area of Chuzhou City where acrossed the national road 312 and 104, and the average distance to Nanjing and Heifei is less than 100KM, so here is very convenient to anywhere. The company also has ability of 1000 sets refrigeration equipments and moulds manufacturing who has been already selected as one of important enterprises of 861 project in Anhui province.

The company was founded in 8, 2003 who has already rapidly grown as newly borned strength in manufacturing trade with continuely growing and powerful of China home appliances enterprises. She owns a young and energizing employee's team work under high level education. In addition all kinds of high level, precise, expertising machining equipments and complete quality inspection instruments are three major treasures to ensure Elite winning more and more market's occupation. The company has abundant technology capability in which the engineerers take 40 percent among all staffs, CAD&CAM is adopted in designing and manufacturing of R&D system., We have built complete quality guarantee system and designing&manufacturing process on base of digesting and absorbing advanced technologies of inland and oversee so as to enforce and expand production scope and manufacturing ability.

The cultural core of Sincertity, Innovation, Bravery and Cooperation has already formed since the day of company's foundation, and continuously insisting development strategy of high-tech, high-quality and manufacturing essence products in this industry. As the same time, under the premise of high-quality guaranteeing, to win the costumer's glance and favor by our swift and high-effective fore-sell, inselll and after sell service system, quick and intime delivery of our advanced and stable quality productions. So far we have nearly forty famous cooperative partners like Haier Group, Xingxing Group, KONKA Group and SIMENS etc. Meanwhile, successfully exported sets of refrigeration equipments to such clients from Pakistan, India and Negeria etc. This is only our first step of market strategy that going out national gateway and striking in the world's market.
