| Price: | US $ 5000-50000set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union |

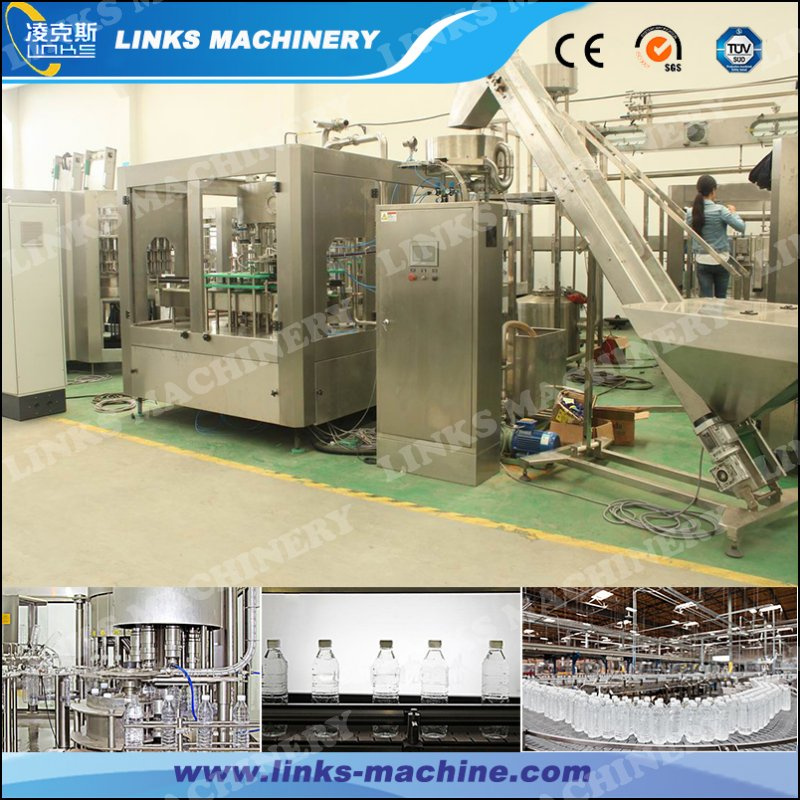

XGF14-12-5 three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to water filling processing demands
Main features
1.This machine has a compact structure, completed control system, easy to operate and highly automated.
2.By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3.The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.
4.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5.The machine adopts high effective cap sorting system and completely self control and protective device.
6.The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
7.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
8.The electric components and pneumatic components are all introduced from world famous brand products.
Model | XGF14-12-5 |
Amount of working position | Rinsing 14, filling 12, capping 5 |
Production capacity | 5000BPH(500ml) |
Pressure of air source | 0.5Mpa |
Air consumption | 0.6m3/min |
Rinsing water pressure | 0.2-0.25Mpa |
Rinsing water capacity | 0.8T/H |
Main motor power | 2.0kW |
Total power | 3.0kw |
Dimension | 2500X2050X2200mm (L×W×H) |
weight | 2800kg |
We also provide the Complete Automatic Pure Water Bottling Plant
It Includes 4 main parts:
1/ Plastic bottle blow molding machine
2/ Water cleaning system
3/ Water washing, filling, capping machine.
4/ Conveyor system, labeling machine, dating machine, film wrapping machine
The complete line main description:
1/ The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.
2/ The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.
3/ We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.
4/ The material is stainless steel 304, food grade much clean and safe.
5/ We provide the engineers for customer installation, training in customer's factory.
Models and Speed List
Model | XGF8-8-3 | XGF14/12/5 | XGF16/16/5 | XGF24/24/8 | XGF32/32/10 |
Washing hands | 8 | 14 | 18 | 24 | 32 |
Filling valves | 8 | 12 | 18 | 24 | 32 |
Capping hands | 3 | 4 | 6 | 8 | 8 |
Suitable PET/Glass Bottles(150ml to 2000ml) | |||||
Capacity(Speed) Base on 500ml | 2000BPH | 5000BPH | 7000BPH | 12000BPH | 15000BPH |
Electric Components Brands Supplier
Main composition | Description Supplier |
PLC | Mitsubishi (Japan) , Siemens (Germany) |
Touch screen | Weinview(Taiwan) |
Frequency converter | Mitsubishi (Japan) , Siemens (Germany) |
Air switch | Schneider (France) |
Breaker | Siemens (Germany) |
Contactor | Siemens (Germany) |
Photoelectric switch | Omron (Japan) |
1. We provide the complete machines' layout, design according to customer's factory.
2. We provide the complete English manual book for customer, all the machines' touch screen operation is English words, we have Russia, Spanish, Portuguese, French..ect to choose.
3. After delivery, we will send our engineer to customers' factory to install the machines and also train workers how to operate and maintenance. Engineer's salary: 80USD/Per day.
4. Our warranty time is 18 months after the machines installation.
5. We provide the 12 months easy broken spare parts as free, and also provide the spare parts book to customer.
6. Payment method: 30% T/T as deposit after signature the contract, 70% T/T or L/C after inspection before delivery.
7 Common delivery time: 45-70days after confirm the bottle and cap design.
| Prod Model: | Liquid Filling Machine |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Xgf Series |
| Control System: | PLC Mitsubishi |
| Bottle Type: | Plastic Bottle / Glass Bottle |
| Bottle Volume: | 200ml to 2500ml Adjustable |
| Beverage Drinks: | Pure/Mineral Water |
| Exchange Parts For Different Bottles: | Provided. |
| Machines Main Material: | Stainless Steel 304 Food Grade |
| Capacity Base On 500ml Bottle: | 2000bph to 18000bph |
| Voltage: | Be Designed by Customer Requests |
| Certificate: | SGS, CE, ISO. |
| Type: | Volumetric Filling Machine |
| Automatic Grade: | Fully Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Multi-Room Feeding |
| Filling Principle: | Atmospheric Pressure |
| Packaging Container Lifting Structure: | Chute Pneumatic Combination Lifting |
| Structure: | Rotary |
| Packaging Type: | Bottle |
| Packaging Material: | Plastic |
| Dosing Device: | Volume Pressure |
