Material: ASTM Grade 450-240
Weight: 180.2KG
Smelting:medium frequency furnace
Sand Core Type:none
Material of mold:foamed plastic
Machining method:CNC lathe,radial drilling machine

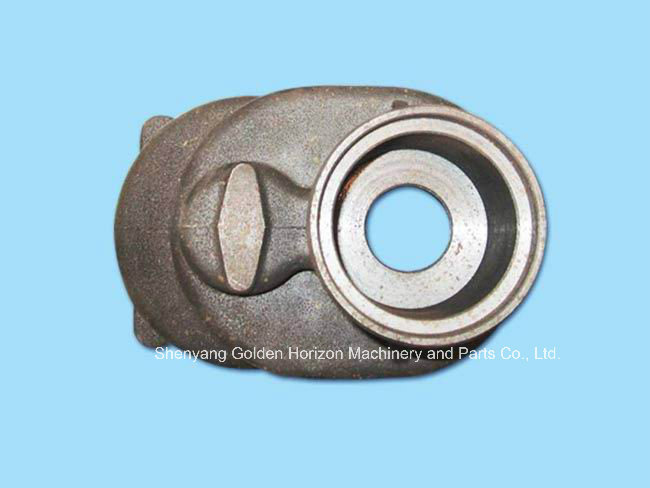

Application:Metallurgical mining equipment
Surface Treatment: surface coated with anti-rust oil
Dimensional tolerance: casting dimension according to CT11,machining dimension according to the requirement of drawing
Surface Roughness:casting surface-Ra25 machining surface: Ra1.6
Testing equipment:autocollimatic spectroscope, Mechanical properties - universal mechanical testing machine.
Certification:ISO 9001
Heat treatment : normalizing + tempering
Epc (also called real mold casting) and casting size shape is similar to that of paraffin wax or foam model binding into clusters, brush after refractory coating and drying, buried in the dry quartz sand vibration model, under the negative pressure casting, make the model of gasification, liquid metal model position, after cooling solidification form a new type of foundry casting method.
Because of the existence of the model, gasification model need to absorb heat in the process of casting, so the lost foam casting pouring temperature should be slightly higher than that of sand mold casting. For different alloy material, compared with sand mold casting, lost foam casting pouring temperature general control in 30 ~ 50 ºC higher than that of sand mold casting. 30 ~ 50 ºC higher than that of the liquid metal heat can meet the needs of heat model of gasification.
Pouring temperature is too low casting prone to defects such as misrun and cold shut, wrinkled skin. Pouring temperature is too high easy to produce the defects such as adhering sand castings.
