Product Description
Specifications
Drawing wire machine
Input wire: 6.5mm output wire: 2.0mm
Output: 10T/per day
Water tank: Input2.0mm, output: 0.2mm
ISO90001
Description:

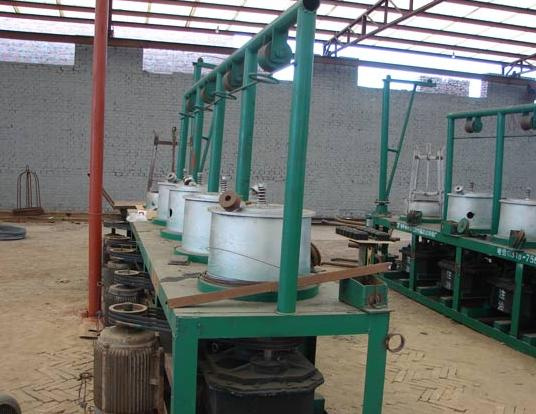

LW1-6/550 wire drawing machines, drived by gears, are capable of drawing rod wires of high-, medium-, low-carbon steel, copper, aluminium, ect. And appliable to manufacturing industries such as wood screw, nail, conducting wirerope for electrician use, spring, etc. With electrical control, this kind of machine is safe in operation, low in noise, and high in effciency.
Specifications: Modle: LW1-6/550
Diameter of the spool(mm): 550
Drawing range(mm): 6.5-2.2
Speed of the spool(rpm): 27-168
Power of a single machine(kw): 15-22
Weight (kg): 1400
Overall dimensions(LxWxH): 6050x1685x2100
max input diameter | 6.5/6.0 | mm |
| min output diameter | 2.2/2.0 | mm |
| rotation speed | 27-168 | r/min |
| each motor power | 15-22 | kw |
| each weight | 1400 | kg |
