Main features:
Flake cutter blade is in between claw and flat cutter blade. Suitable for recycle and restore of conventional sheets, tube plastics, profiles. Packing plastics, extrusion mould products & runners.
General operation adopted with airtight sealed bearing to allow long hours rotation; Well designed cutter blades, to ensure the balance of pellets sizes after crushed; Cutter base with special heat treatments, elegant in appearance.
Model
|
Crushing chamber(MM)
|
Crushing capacity(KG/H)
|
Fixed blade(PCS)
|
Rotating blade(PCS)
|
Power(KW)
|
Dimensions (MM)
|
Net weight(KG)
|
WS230
|
230*200
|
100-150
|
2
|
6
|
4
|
950*600*1190
|
290
|
WS300
|
310*200
|
150-200
|
2
|
9
|
5.5
|
1000*720*1290
|
435
|
WS400
|
410*235
|
200-250
|
2
|
12
|
7.5
|
1030*840*1390
|
500
|
WS500
|
510*290
|
300-350
|
2
|
15
|
11
|
1230*1010*1630
|
900
|
WS600
|
610*320
|
350-450
|
4
|
18
|
15
|
1320*1110*1830
|
970
|

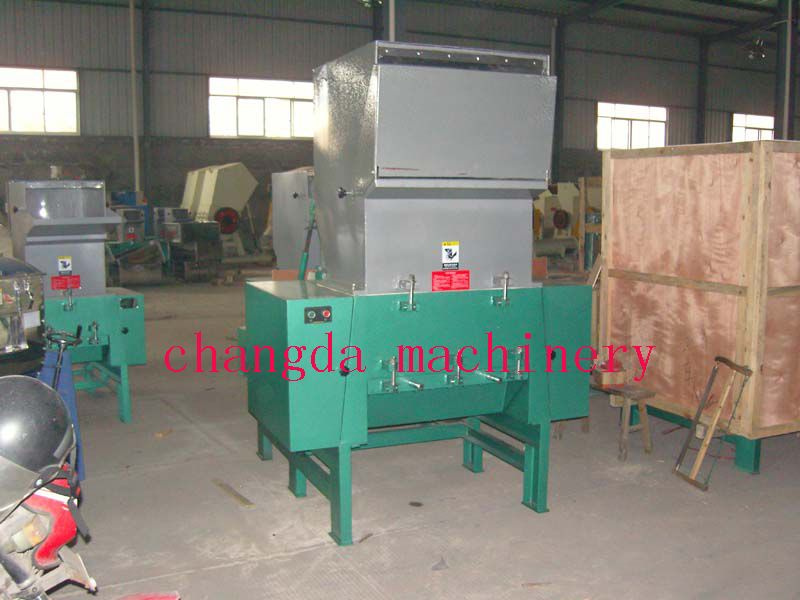

WS800
|
815*470
|
450-600
|
4
|
24
|
22/30
|
1730*1490*2300
|
2000
|
Taizhou Changda Machine Factory was established in 1988, which produces plastic machine equipments professionally. With decads of years course of development, Changda, which based on its advanced enterprise management system, powerful equipment foundation and strong technology development force, always makes the product' S quality and performance be on top through continual sucking in new technique and craftwork.
Through decades of years of rough course and struggle. Changda has formed three series of plastic machine, including plastic crusher series, extruder series and washing line series. We' Ll use powerful technique force, high-quality products performance, reasonable price and thoughtful fast service as our principle of enterprise all the time. Winning vast old and new customer' S trust.
From yesterday to today, until to the future, Changda would like to cooperate sincerely with you and contribute our pygmy effort to plastic industry of China.
