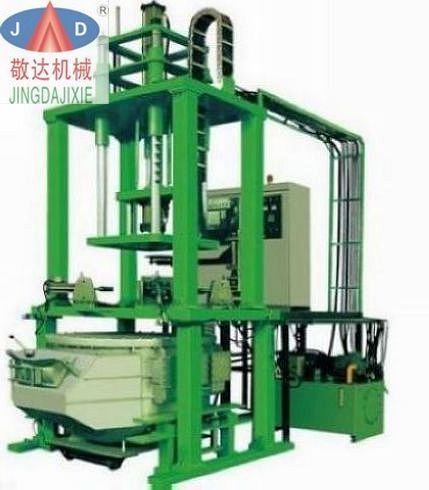

Low Pressure Casting Machine JD45
I...Application
The series of Low Pressure Casting Machine JD45 including: JD451, JD452, JD455 and JD458. They are commonly used for producing large aluminum alloy castings like some auto parts, such wheels and engines, etc. The control system of the Low Pressure Casting Machine is of Siemens brand.
Its working principle is to inflate dry compressed air into the sealing holding furnace. Under the action of air pressure, metal liquid will go through the lift tube to form molds in the mold cavity. Then metal liquid will consolidate in the mold cavity to become compact castings (under the pressure ). This machine is widely used in the industries of automobile, motorcycle, instrument, textile machinery, aerospace industry and so on
II. Machine components
It's components including: The main engine, hydrolic system, holding furnace of molten pool type, filling control system, electronic control system and mould cooling system. All the composents are made of world-famous brands, like Siemens, Schneider, OMRON and AIRTAC, etc...Therefore we can assure you that our products are of high quality.
III. About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
| Main specifications and technical parameters |
| Item | J451 | J452 | J455 | 458 |
| Furnace Capacity (kg) | 150 | 200 | 500 | 800 |
| Mould Size(L*W*H)mm | 600*400*400 | 700*600*450 | 800*800*500 | 1000*1000*500 |
| Horizontal Opening Cylinder | 2/3 | 2/3/4 | 2/3/4 | 2/3/4 |
| Bore/ Rod Diameter | 100/50 | 125/63 | 125/70 | 125/70 |
| Stroke | 200 | 250 | 300 | 350 |
| Center Height (can be adjusted) | 110 | 130 | 150 | 160 |
| Center Height: bore/ rod diameter | 125/70 | 125/70 | 140/80 | 140/80 |
| Closing Cylinder: stroke | 500 | 600 | 800 | 1000 |
| Hydraulic system Pressure Flow | 12/63 | 12/63 | 12/63 | 12/80 |
| Compressed air | 0.6 | 0.6 | 0.6 | 0.6 |
| Power | 30 | 40 | 50 | 60 |
| Machine weight | ~6 | ~8 | ~10.5 | ~15 |
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
