Low Price Motorcycle Bicycle Inner Tube Vulcanizer
Specifications

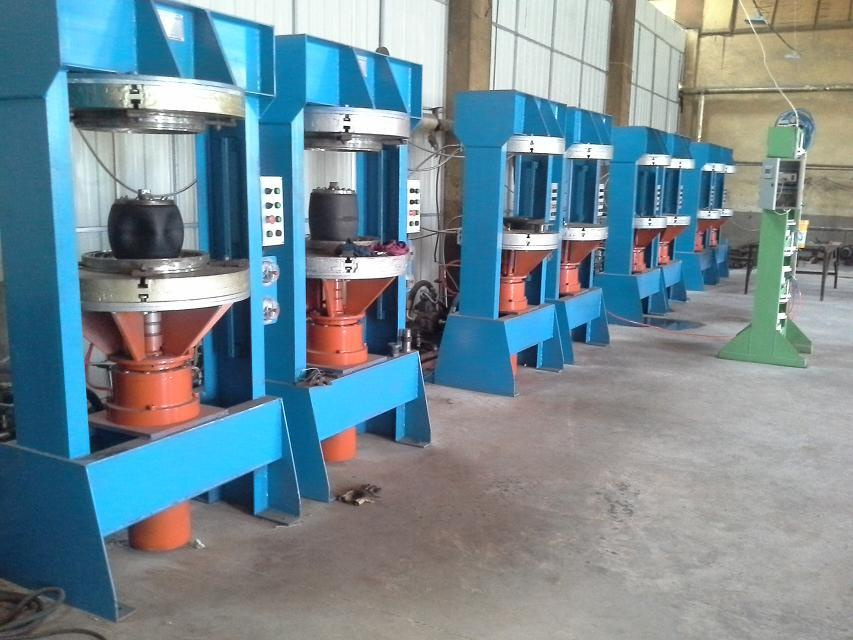

Four columns vulcanizing machine
1.CE,ISO,SGS
2.Electrical , steam or oil heating
3.Without oil spi
About this machine:
1.The inner tube adopted with one hydraulic system.
2.The heating plates is processed with a type fixed groove and suitable for varies of moulds installation.
3.The tube press has reliable performance ,low noise and durability
4.ThePLC control system makes it easy and reliable to operate.
5.It features a well-organized lineup of pipings and has automatic drain of cooling water.
Parameters/ version |
YL-600 |
YLL-1000 |
YLL-1200 |
YLL-1400 |
Working layer |
2 |
2 |
2 |
2 |
Outside diameter of hot plate |
820 |
830 |
840 |
1050 |
Total pressure (kn) |
600 |
1000 |
1200 |
1400 |
Plunger diameter(mm) |
250 |
300 |
360 |
360 |
High pressure (mpa) |
13 |
14 |
14 |
14 |
Low pressure (mpa) |
1.5 |
1.5 |
1.5 |
1.5 |
Pressure in bladder (mpa) |
1.5 |
2.1 |
2.1 |
2.1 |
Steam working pressure (mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Size (L*W*H)(mm) |
1200*900*2400 |
1200*842*2358 |
1200*900*2500 |
1360*1050*3820 |
Weight (T) |
3.2 |
4.5 |
5.5 |
8 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
