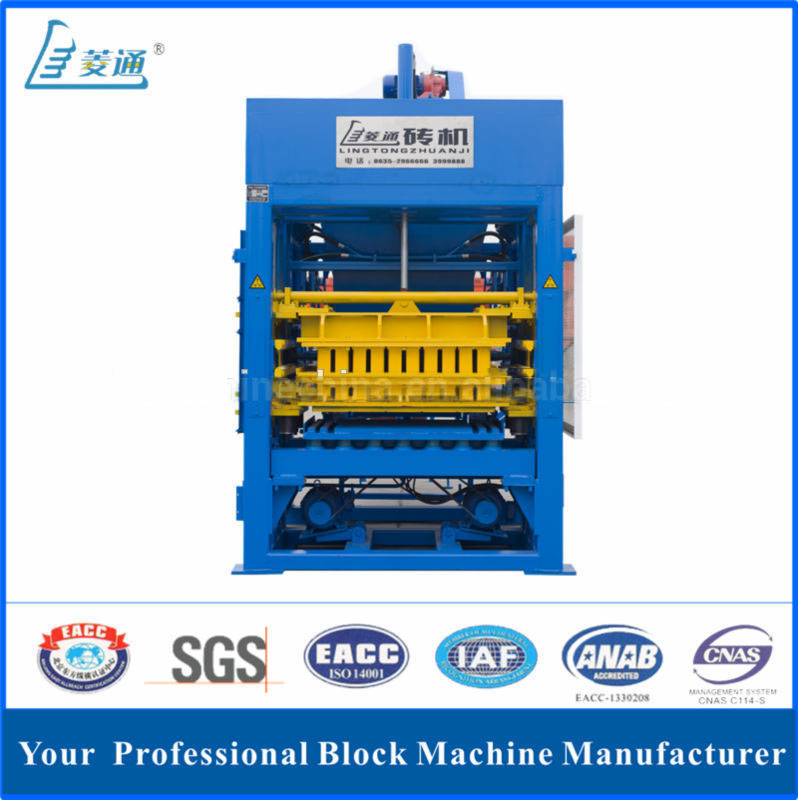

Best price LTQT6-15 constrction waste paving brick portable hydraulic vibration block making machine on hot sale
LTQT6-15 portable hydraulic vibration block making machine features
1. Vibrator and workbench become a whole so as to reduce processing of joint surface, fittings, the loss of energy transfer and improve the efficiency of the vibration, trepanning the workbench hole on the tank, and narrow trepanning area, put an end to the oil, to avoid damage to parts;
At the same time increase the space between eccentric shaft holes, intermediate connection by excessive gear, thereby increasing the vibration effective area, making the vibration more homogeneous, ensuring compactness and strength of
block products.
2. Using the air spring (gasbag pneumatic cylinder)clamping to realize optimal damping effect and the load measurement and height control.
Vibration isolation effect is good and can reduce the noise generated by mechanical vibration.
3. Quick mold changeover equipment, guarantee the clearance homogeneous between the upper
pressure head and mold frame and mold replacement is quick and easy.
4. Using the displacement sensor (electronic ruler). The sensor can send message and control by displacement sensor.LEZ slideblock type mobile sensor
(electronic ruler), with the durable conductive plastic resistor rail inside,
is suitable for the applications of position measurement and automation control.
5. Increase the racks. A vibration table does not bear a mold and external load, and can reduce the number of vibration isolation spring, so that the vibration isolation system is more flexible and the noise will decrease accordingly.
LTQT6-15 paving brick portable hydraulic vibration block making machine Product Quality
Products produced at the production line must conform to the corresponding standards.
1. The Hollow Brick
Specification: 390*190*190mm
Quality: the compressive strength can be more than 10 Mpa (the hollow block can add a
certain amount of fly ash and the proportion is about 30%).
2. Multiple-hole Brick
Specification: 240*115*90mm
Quality: the compressive strength is greater than 15 Mpa
3 Solid Brick
Specification: 240*115*53mm
Quality: the compressive strength is greater than 15 Mpa.
4. Colored Pavement Brick
Specification: 200 * 100 * 60 mm
Quality: the compressive strength can be greater than 30 Mpa
Parameters of Block Making Machine
Technical parameters |
Dimensions of main frame(L*W*H) |
7600*1850*2850mm |
Molding height |
50-190mm |
System pressure |
25Mpa |
Virbration forcement |
75KN |
Dimension of pallet |
1100*680*30mm |
Whole weight |
11000KG |
Molding cycle |
15s |
Power of main frame |
37.4kw |
Capacity of Block Making Machine
Block sample |
Size |
Pieces/time |
Pieces/H |
Hollw block |
390*190*190mm |
6 |
1440 |
Multi-row perforated brick |
240*115*90mm |
20 |
4800 |
Standard block |
240*115*53mm |
36 |
8640 |
Pavment brick(single color) |
200*100*60mm |
0.48m2 |
72m2 |
Device Configuration of Block Making Machine
concrete spreader
automatic discharging plate mixer
PLC electronic control system
ayer pallet mixer
hydraulic system
secondary concrete spreader
part of host computer
automatic palletizing machine
automatic unloader machine
electronic batching station
loading machine
cement silo
We use Siemens PLC touch screen, Schneider Contacter and thethermorelay, Omron proximity Switch.
1. Loader.
2. Concrete Mixer.
3. Cement Silo
4. Ingerdients conveyor machine
5. Fabric Machine
6. Automatic forming machine.
7. PLC control system
8. Pallet outed machine
9. Automatic Stacker
10. Forklift
1. Control system: PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trainning to the operator.
2. Vibrator: It adopts sensor and hydraulic proportion drive technology, forced centrifugal distributed by action of oscillating type charge car and arch breaking mechanism, multi-source vibration, adjustable frequency and breadth, creates low frequency distribution and high frequency forming, applicable for various material. Vibrating acceleration could achieve 17 grades.
3. Frame of forming machine: It adopts high-strength section steel and special welding procedure, utmost firm.
4. Lead: It is made of the super-strong and special type steel material, the surface is chromeplated which has favourable torsion and abrasive resistance.
5. Material feeder: It is a special material feeding device which equiped with rotary forced charing device so that it can resolve the problem of wet slurry and material distribution to perforated bricks production.
6. Raw material: Various waste slag could be used, such as sand, stone powder, coal gangue, flyash and the steel slag etc.
Our Professional Service :
1. Our good after-sale service would provide our customer with both the technology and the skills.
2. Our overseas technicians would be there to help installation and teach the using method.
3. We could provide the manual brochure if needed.
4. We would provide professional help with plant building by providing the foundation drawing.
FAQ :
Q. How much land should I prepare for starting a brick factory?
A. Land requirement is verified according to different production capacity, generally ranging from 15,000 m2 to 30,000 m2 It is necessary to prepare at least 10,000 m2 to start.
Q. How to choose a best block making machine?
A. According to your capacity one day, and what is your material, which bricks do you want to make
Q. How to install the block making machine ?
A. We will send our engineers to customers place for installation and training , and send more specifications or video for you .
