| Price: | US $ 49500SET |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1SET |
| Pay Type: | L/C,T/T |
| Parameter of the machine | ||
| Item | Unit | HY-1100/1250 |
| Forming area | mm | 1100x1250 |
| Forming depth | mm | 100 |
| Production efficiency | s/Die | 3-5 |
| Heating area | mm | 1200x2800 |
| Installation power | kw | 110 |
| Installation size | m | 16x5x3 |

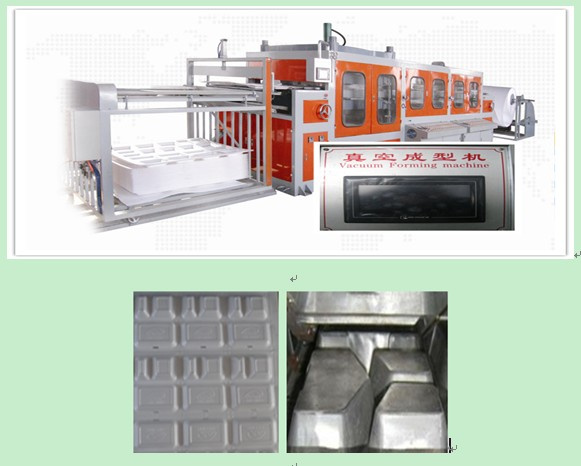

2.the machine for making ps foam container

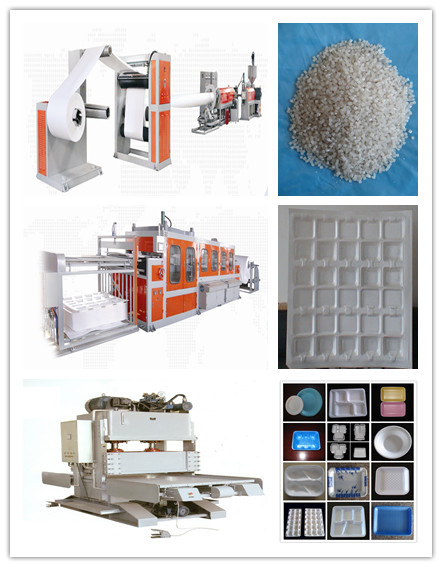

make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)
parameter of the machine HY-1100/1250
forming area of the machine is 1100x1250mm
heating area of the machine is 1200x2800mm
installation power is 110kw
The cutting machine is separately working with vacuum forming. Put the Ps foamed sheet to vacuum forming molding, after that, put the molding sheet to cutting machine manually. After cutting, manually can get the final tray and lunch box, then packing buy hand
| Prod Model: | HY-1100/1250 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: | Automatic |
| Shaping Mode: | Die Molding |
| Application: | Machinery & Hardware, Food & Beverage |
| Driven Type: | Electric |
| Computerized: | Computerized |
| Raw Material: | PS |
| Power Supply: | 3 Phase 380V 50Hz |
