Product Specification

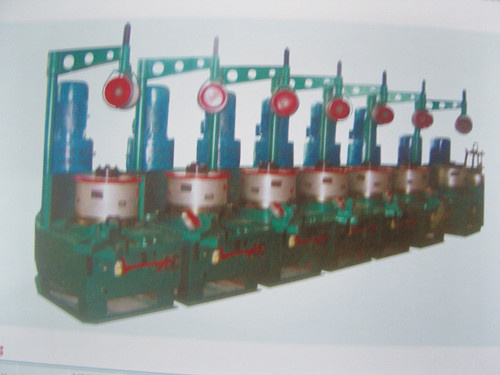

Pulley/OTO Wire Drawing Machine is a traditional drawing equipment, it is especially suitable for medium/low carbon standard wire rod, such as trunk-type unloading wire machine, plate weight can be unloaded under 800kg, front drawing non-stop, in particular, used for fastener industry. According to customers' requirements, it can be single block, multiple blocks. Machine gear case noise is lower than similar products from other companies, and gear massiness, can be paired with ordinary motor, timing motor, frequency conversion control with frequency conversion motor, frequency conversion control with general motor.
Main Technical Parameters |
Item | Unit | 1-8/600 | | 2/560 | 3/560 |
1/450 | 2/450 | 3/450 |
Drawing Material | | High, Middle and Low-Carbon Steel Wire |
Diameter of Inlet Wire | mm | 6.5-5.5 | | 6.5 | 6.5 |
4.0 | 4.0 | 4.0 |
Finished Wire Diameter | mm | 2.5-2.0 | 5.88-5.74 | 5.26-5.0 | 4.69-4.42 |
3.57-3.53 | 3.19 | 2.86-2.82 |
Inlet Wire Strength | Mpa | ≤1200/800/500 |
Total Compression Rate | % | 85% | 18-22 | 34.5-40.8 | 48-53.8 |
Finished Wound Roll Speed | m/min | 300 | | 58.2 | 78.6 |
35.5 | 46.8 | 63.2 |
Single Motor Power | kw | 45-30 | 15-30 |
Weight | kg | 32000 | 2000 | 4000 | 6000 |
Machine Size | mm | 12000*2350*2650 | 1200*1600*2495 | 2240*1660*2495 | 3360*1660*2495 |
Major Technical Parameters |
Item | Unit | | 5/560 | 6/560 | 7/560 |
4/450 | 5/450 | 6/450 | 7/450 |
Drawing Material | | High, Middle and Low-Carbon Steel Wire |
Diameter of Inlet Wire | mm | | 6.5 | 6.5 | 6.5 |
4.0 | 4.0 | 4.0 | 4.0 |
Finished Wire Diameter | mm | 4.19-3.90 | 3.75-3.44 | 3.53-3.04 | 3.0-2.68 |
2.56-2.49 | 2.29-2.20 | 2.05-1.95 | 1.83-1.72 |
Inlet Wire Strength | Mpa | ≤1200/800/500 |
Total Compression Rate | % | 58.4-64 | 66.7-72 | 73.4-78 | 78.7-83 |
Finished Wound Roll Speed | m/min | | 128.2 | 160.9 | 203.1 |
80.2 | 103.1 | 129.3 | 163.2 |
Single Motor Power | kw | 15-30 |
Weight | kg | 8000 | 10000 | 12000 | 14000 |
Machine Size | mm | 4480*1660*2495 | 5600*1660*2495 | 6720*1660*2495 | 7840*1660*2495 |
Major Technical Parameters |
Item | Unit | | 9/560 | 10/560 |
8/450 | 9/450 | 10/450 |
Drawing Material | | High, Middle and Low-Carbon Steel Wire |
Diameter of Inlet Wire | mm | | 6.5 | 6.5 |
4.0 | 4.0 | 4.0 |
Finished Wire Diameter | mm | 2.68-2.37 | 2.04-2.09 | 2.17-1.87 |
1.64-1.52 | 1.47-1.34 | 1.33-1.20 |
Inlet Wire Strength | Mpa | ≤1200/800/500 |
Total Compression Rate | % | 83-86.7 | 86.3-89.6 | 88.9-91.7 |
Finished Wound Roll Speed | m/min | | 309.6 | 379.8 |
201.6 | 248.7 | 305.3 |
Single Motor Power | kw | 15-30 |
Weight | kg | 16000 | 18000 | 20000 |
Machine Size | mm | 8960*1660*2495 | 10008*1660*2495 | 11200*1660*2495 |
