Specifications
1. Easy operation
2. High speed&high efficiency
3. Low noisy&production cost
4. PLC control
5. Excellent after-sales service
1. Machine Name:

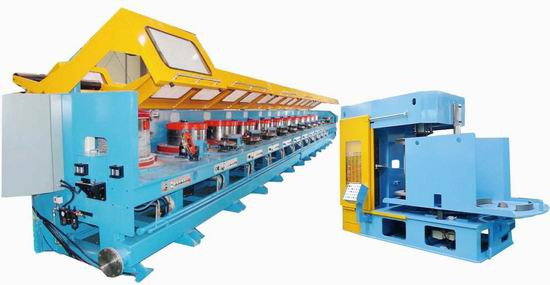

LZ6-400 sraight wire drawing machine
2. Technical parameters:
|
No. |
Item |
Unit |
Data |
|
1 |
Machine type |
|
LZ6/400 |
|
2 |
Drawing passes |
|
6 |
|
3 |
Block diameter |
mm |
Φ400 |
|
4 |
Speed adjustable mode |
|
AC freq. Con. Speed Adjustable |
|
5 |
Motor power |
KW |
6*11 |
|
6 |
Motor Brand |
|
Sanyuantai |
|
7 |
Inlet diameter |
mm |
Max Φ2.5 |
|
8 |
Outlet diameter |
mm |
Min Φ1.0 |
|
9 |
Total compression |
% |
84% |
|
10 |
Average compression |
% |
23% |
|
11 |
Drawing speed |
m/s |
Max speed:20m/s; |
|
12 |
Control mode |
|
Fully digital |
|
13 |
Logical control |
|
SIEMENS |
|
14 |
Converter |
|
SIEMENS |
|
15 |
Touch screen |
|
Panelvisa from Taiwan |
|
16 |
Wire-in strength |
MPa |
≤1250 |
|
17 |
Carbon content in material |
|
High/middle/low carbon steel wire |
|
18 |
Block cooling |
|
"Narrow Gap" water cooling ;
Forced Air Cooling. |
|
19 |
Die box |
|
Direct water cooling |
|
20 |
Water pressure |
|
0.2~0.3Mpa |
|
21 |
Rolling bearing |
|
NSK bearing from Japan |
|
22 |
Air pressure |
|
≥0.6Mpa |
|
23 |
Braking time |
S |
Normal stop≤50s,EMG stop≤5s |
Zhangjiagang Sanyuantai Machinery Co., Ltd is an equipment manufacturer engaged in service for steel cord and metal manufacturers. With an experienced design team, insisting on the purpose of company of " Quality for survival, Reputation to develop, Technology lights path, Service creates brand", following the business philosophy of " Honest, Practical, and Innovative", the company continuously improves the product quality and technical content in order to help your business take off.
The company products mainly include straight wire drawing machine, wet drawing machine, double twist stranding machine, wrapping machine, etc. These products have been exported overseas, such as Korea, Japan, US, and other countries.
