Use and performance
" This machine is widely used in the aerospace, military, automotive, equipment manufacturing, precision measuring tools, molds, electrical components, hardware steel, castings and non-ferrous materials grinding.
Fully implement the national standards and industry standards;
The surface grinder has good rigidity for its itegral bed, Gantry column and cross worktable
Longitudinal movement of worktable and crossfeed movement of wheelhead are driven by hydraulic in stepless speed regulation., The surface grinder which has 2000mm or more than 2000mm working length adopt independent petrol station.
The wheelheade is driven by embedded motor, The vertical feed of wheelhead equipped with rapid lifting mechanism and manual lifting mechanism

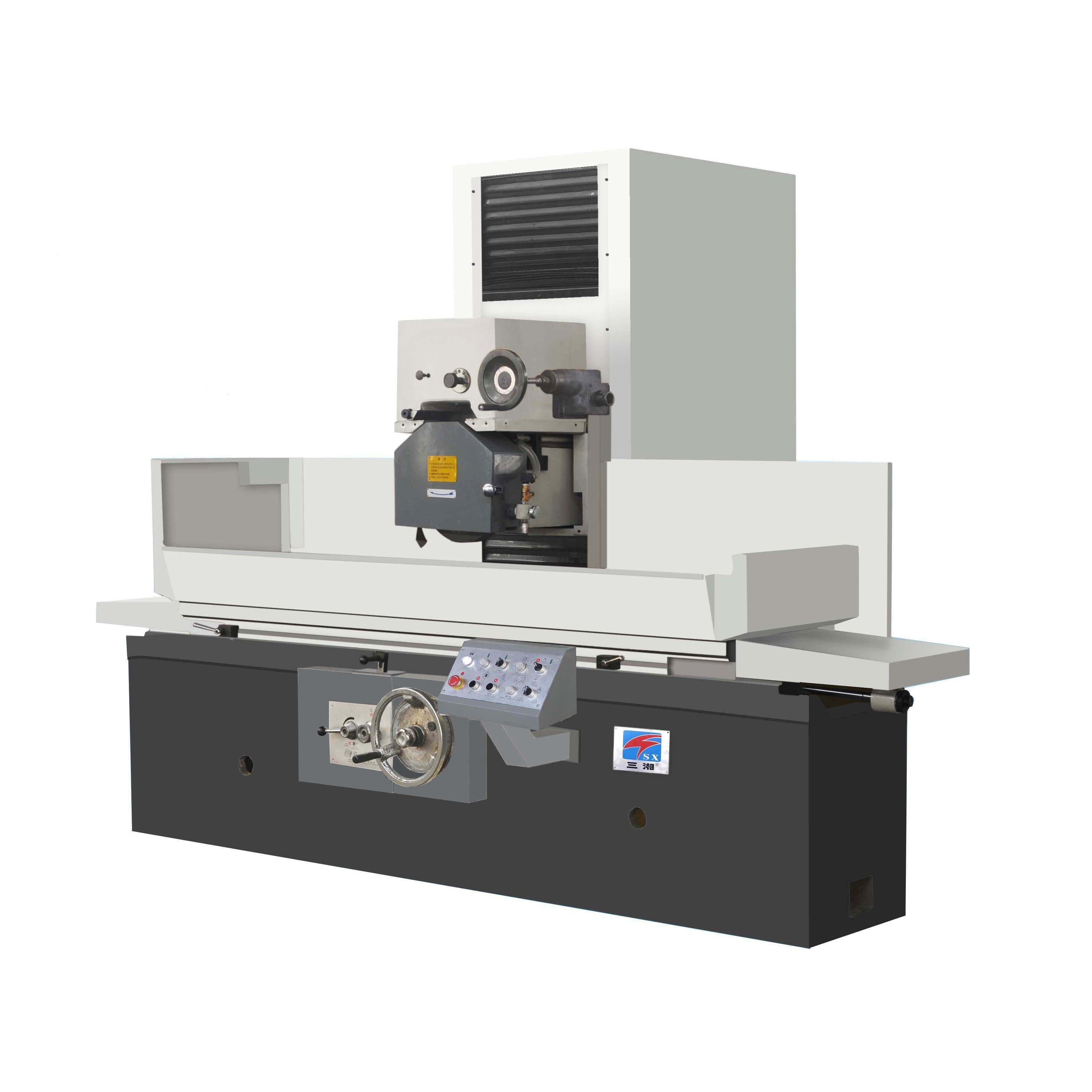

M7140/N-SF Surface Grinding Machine |
Main Specifications | Unit | M7140 | M7140× 16 | M7140× 20 |
Table | Table working surface (W× L) | mm | 400× 1000 | 400× 1600 | 400× 2000 |
Max. size of workpiece to be ground (W× L× H) | mm | 400× 1000× 400 | 400× 1600× 400 | 400× 2000× 400 |
Table Longitudinal travel (Hydraulic) | mm | 200-1100 | 200-1700 | 200-2100 |
Speed of table (Stepless) | m/min | 3-25 | 3-25 | 3-25 |
Table " T" slots Width | / mm | 3 18 | 3 18 | 3 18 |
Max. allowable weight of workpiece (Including electromagnetic chuck) | kg | 624 | 1000 | 1248 |
Electromagnetic chuck size (W× L) | mm | 400× 1000 | 400× 1600 | 400× (1000× 2) |
Grinding wheel head | Max. Travel of wheel-head cross (Manual and hydraulic) | mm | 450 | 450 | 450 |
Automatic cross-feed of wheel-head (Stepless) Continuous Intermittent | m/min mm/time | 0.8-3.5 3-30 | 0.8-3.5 3-30 | 0.8-3.5 3-30 |
Wheel-head feed for each turn of hand-wheel Cross Vertical | mm mm | 3 0.5 | 3 0.5 | 3 0.5 |
Min. feed of down-feed hand-wheel dial | mm | 0.01 | 0.01 | 0.01 |
Grinding wheel size (O. D× W× I. D) | mm | Φ 400× 50× Φ 203 | Φ 400× 50× Φ 203 | Φ 400× 50× Φ 203 |
Electrical equipment total capacity | kVA | 14 | 15 | 17 |
Grinding wheel motor power | kw | 9 | 9 | 9 |
Speed | r/min | 1440 | 1440 | 1440 |
Work accuracy | Working surface to base level parallelism | mm | 300: 0.005 | 300: 0.005 | 300: 0.005 |
Surface roughness | μ m | Ra0.63 | Ra0.63 | Ra0.63 |
Base parameter | Overall dimensions (L× W× H) | mm | 2800× 1888× 2400 | 3400× 1888× 2400 | 4000× 1888× 2400 |
Packing case dimensions (L× W× H) | cm | 270× 210× 276 | 350× 210× 276 | 420× 210× 276 |
N. W | kg | 4800 | 6000 | 6300 |
|
|
|
|
|
|
Standard accessories |
Electro magnetic chuck | Grinding wheel flange | Wheel balancing mandrel | foundation bolts | scraping board |
combination spanner | Wheel Balancing stand | Grinding wheel dresser (Without diamond) | Machine underlay | Grinding wheel |
