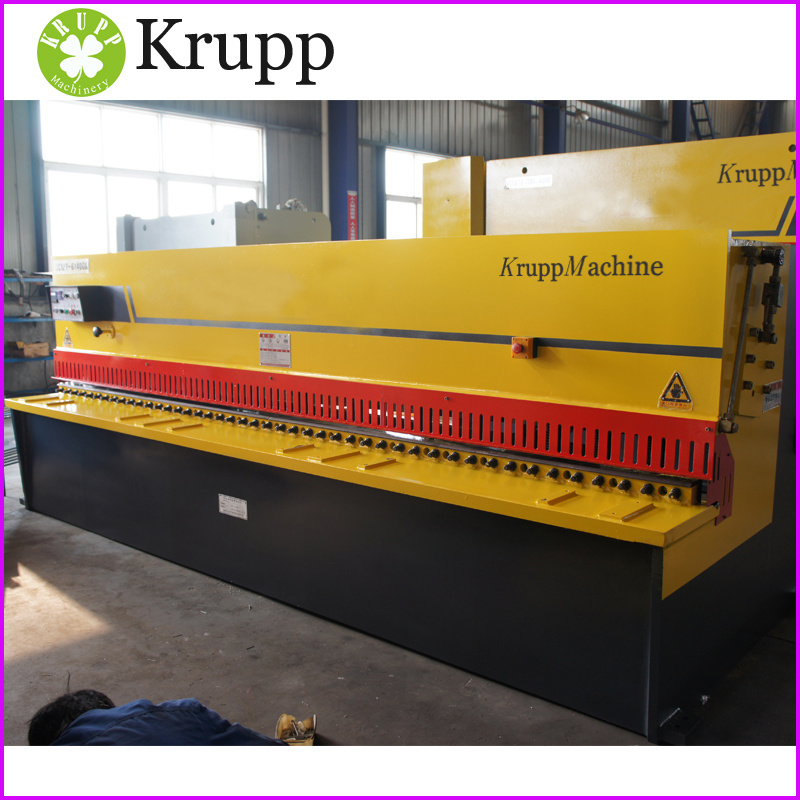

Machinery Manufacturer Hydraulic Shearing Machine/Plate Shears Machine

Price:	US $ 6000-80000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Maanshan Krupp Machinery Trade Co., Ltd.

Showroom Product Company Profile

1.The mainframe is fitted with numeric-control system special for shearing machines.
2.The position of rear stopper is displayed in a real-time manner.
3.Multi-step programming function is available and the rear stopper is able for automatic
operation and continuous positioning,to achieve an automatic adjustment for position of rear stopper.
4.It is provided with counting function for shearing,to display the shearing numbers in a
real-time manner,able for power-failure memory of position of rear stopper ,procedures, and parameters.
5.Imported ball bearing lead screw and liner guide rail are used,to ensure the positioning precision,so that the processing precision of machine is higher.

Model	Cutting thickness (mm)	Cutting width (mm)	Cutting angle(º)	Travel times (min-1)	Stopper adjust range(mm)	Motor power (Kw)	Dimension (L × W ×H) (mm)
4×2500	4	2500	1°30`	≥16	20-600	4	3040×1430×1560
4×3200	4	3200	1°30`	≥12	20-600	5.5	3840×1675×1720
4×4000	4	4000	1°30`	≥10	20-600	5.5	4640×1850×1800
6×2500	6	2500	1°30`	≥16	20-600	7.5	3040×1520×1690
6×3200	6	3200	1°30`	≥12	20-600	7.5	3840×1660×1720
6×4000	6	4000	1°30`	≥10	20-600	7.5	4640×1855×1800
6×5000	6	5000	1°30`	≥8	20-600	11	5786×2200×2160
6×6000	6	6000	1°30`	≥7	20-600	11	6800×2130×2270
8×2500	8	2500	1°30`	≥12	20-600	11	3040×1575×1720
8×3200	8	3200	1°30`	≥10	20-600	11	3840×1675×1750
8×4000	8	4000	1°30`	≥8	20-600	11	4680×1850×1800
8×5000	8	5000	1°30`	≥7	20-600	15	5786×2200×2160
8×6000	8	6000	1°30`	≥5	20-600	18.5	6800×2130×2270
10×2500	10	2500	1°30`	≥10	20-600	15	3200×1960×1800
10×3200	10	3200	1°30`	≥9	20-600	15	3950×1840×1810
10×4000	10	4000	1°30`	≥8	20-600	15	4720×1870×1925
12×2500	12	2500	1°30`	≥10	20-800	18.5	3225×1950×1910
12×3200	12	3200	1°30`	≥9	20-800	18.5	3925×2130×2050
12×4000	12	4000	1°30`	≥8	20-800	18.5	4740×2290×2170
16×2500	16	2500	2°	≥8	25-800	18.5	3240×2182×2040
16×3200	16	3200	2°	≥7	25-800	22	3940×2222×2100
16×4000	16	4000	2°	≥5	25-800	22	4750×2290×2225
20×2500	20	2500	2°30`	≥6	30-800	37	3340×2265×2230
20×3200	20	3200	2°30`	≥5	30-800	37	4050×2400×2330
20×4000	20	4000	2°30`	≥5	30-800	37	4870×2600×2535
25×2500	25	2500	3°	≥5	30-800	45	3400×2430×2335
25×3200	25	3200	3°	≥4	30-800	45	4100×2580×2490
25×4000	25	4000	3°	≥4	30-800	45	4950×2500×2600
30×2500	30	2500	3°30`	≥4	30-800	45	3300×2900×3000
30×3200	30	3200	3°30`	≥4	30-800	55	4200×2500×2600
40×2500	40	2500	4°	≥3	30-800	55	3200×3300×3200
40×3200	40	3200	4°	≥3	30-800	55	4300×3300×3000

The above data is just for you reference,if there is any disaccord please refer to actual data

Prod Model:	QC12y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Thickness (mm):	4-40
Working Voltage:	380V,50Hz
Color:	Customized
Control System:	Chinese
Sealing Element:	Imported
Forging Forming Method:	Mold Forging

Ma'anshan Krupp Machinery Trade Co., Ltd is located in Ma'anshan Bowang

Industrial park. We are near to Nanjing South station and Nanjing Lukou airport, which is convenient to be visited.

Our company adopts international advanced management mode and imports Japanese and German technology. We are the enterprises with collection brand, research and development, design and manufacture.

We passed ISO9001: 2008 international quality system certification and has obtained many patent. All machines are with CE certification.

Our company are professional in producing metal forming machine, including CNC press brake, shearing machine, rolling machine, combined punching shearing machine, hydraulic notching machine, punching machine and all kinds ofmechanical tools, die.

We have rich clients in many countries and regions. Beside offer the machines with good quality, we also have experienced after sales service team. If thereis need, our engineers can go to the buyer's side to offer training and installation at the earliest time.

"Quality Create Future" is our concept. We'll try our best to achieve every product.
