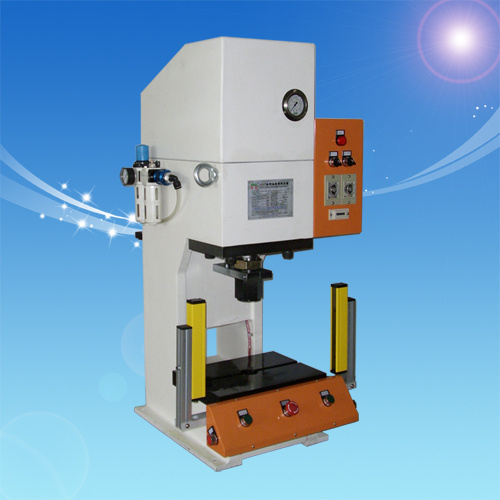

JLYCZ Manual 15tons riveting presses ( Charaters of press )
1) With compressed air as the power, simple to operate.
2) Making no noise during standby of the oil hydraulic system, saving the electricity and reducing Production cost.
3) Cylinder stroke adjustable and custom-made for special request.
4) Simple to adjust the output, the required pressure can be reached simply adjusting the pneumatic Pressure, easy and convenient.
5)Safe and human-centered design, comfortable and durable operation
6) Allows adding heating modules and temperature controller, as well as forcing transduce additionally.
Manual 15 tons riveting Presses ( Operation of press )
1)To start machine by two hand buttons, time relay controls machine's return stroke.
Connected to power, in the "manual" state, operator can make machine do low force inching rise or inching drop action by pressing inching rise or inching drop buttons, so as to correct moulds.
2)In the "automatic" state, machine will start after operator put workpiece on work bed and press switches by two hands. During fast approach stroke, the upper moulds move to workpiece quickly and gently with low-noise, no impact, when upper moulds contact with workpiece machine will build up full power(power stroke) automatically from fast low force approach stroke until set-up time over, then time relay controls moulds returning automatically, so as to insure machine builds up enough pressing force required.
Speed of Fast approach stroke and returning stroke can be adjusted stepless, so as to meet different working frequency requirement.
3)Machine's maintenance system can process inlet compressed air so as to make it gas-water seperated and oil atomization, you can also adjust the pressure of inlet air source stepless, so that machine's output force is adjustable stepless.
With an emergency returning button, moulds can return immediately anytime. There is a power stroke regulating valve, which can adjust pressing force of power stroke while machine's speed is not changed, in this way it can protect moulds and energy-saving.
JLYCZ Manual 15 tons riveting presses ( Application )
Stamping sign Bending profile
Punching die Die cutting rigid material
Touch-welding profile Squeezing die and forming
Flattening and straightening Riveting and forging
Shaping metal plate Closing assembly
Testing material Riveting joint
Stamping sign Bending profile
Punching die Die cutting rigid material
Our company was founded in Changhua County, Taiwan area in 1985. With more than 20 years' development, we have had strong technical force and advanced equipment such as the fully automated CNC machining center, milling machines and Germany-imported special testing tables of hydropneumatic pressure equipment, all of which ensure that our products can achieve the goal of long life, high precision, high output, small volume, zero leakage, and diversified characteristics.
All of our products are selling well in worldwide markets for our good quality, competitive price and prompt delivery, especially for our after-sales service. If you are interested in any of our products, please feel free to contact us for further information.
