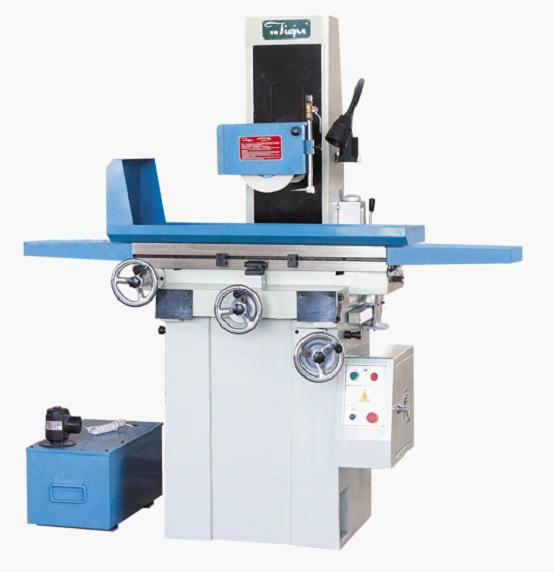

Manual surface grinder M820
Technical Parameters Unit M820
Max. Workpiece to be Ground ( L× W× H) mm 520× 220× 490
Max. Grinding Length mm 530
Max. Grinding Width mm 220
Distance From Table Surface To Spindle Center mm 490
Slide way V-type rail with Steel-ball
V-type rail with Steel-ball Kg 200
Table Size (L× W) mm 480× 200
Number of T -Slot mm× N 12× 1
Speed OF Working Table m/min 3-23
Cross Feed On Handwheel mm 0.02/Graduation 2.5/revolution
Vertical Feed On Handwheel mm 0.01/Graduation 1.25/revolution
Wheel Size (dia. × Width× Bore ) mm 200× 16× 31.75
Spindle Speeds 50Hz rpm 2850
0-6000
Spindle Motor Kw 1.1
Coolant Pump Kw 0.4
Minimum of Numerical Display mm
Machine Size (L× W× H) mm 1680× 1140× 1800
Packing Size (L× W× H) mm 1140× 1240× 1960
Gross\Net T O. 80\ 0.70
