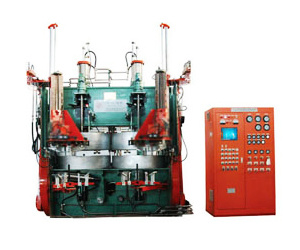

Mechanical double-mold tyre shaping curing machine:
This machine is perfect for vulcanizing TBR, PCR tires or bias tires.
Technical Parameters:
|
Stype |
YLL-600 |
YLL-1000 |
YLL-1200 |
YLL-1400 |
YLL-2000 |
|
Total Pressure(Tons) |
60t |
100t |
120t |
140t |
200t |
|
Layers |
2 |
2 |
2 |
2 |
2 |
|
ID of Shield(mm) |
820 |
830 |
840 |
1050 |
1450 |
|
Diameter of Piston(mm) |
250 |
300 |
360 |
360 |
400 |
|
High Pressure(Mpa) |
13 |
14 |
14 |
14 |
14 |
|
Low Pressure(Mpa) |
5 |
5 |
5 |
5 |
5 |
|
Pressure in Air Bag(Mpa) |
1.5 |
2.1 |
2.1 |
2.1 |
2.1 |
|
Steam Pressure(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Overall Dimension(L×W×H)(mm) |
1200×900×2400 |
1200×900×2358 |
1200×900×2500 |
1360×1050×3820 |
1500×1500×3200 |
|
Weight(kg) |
3200 |
4500 |
5500 |
18000 |
11000 |
Qingdao Shengxinze Industry&Trade Co., Ltd. is a comprehensive enterprise which engaged in manufacturing, import &export business fields, With almost 10 years experience in rubber machinery equipment export. We got the great prestige and the status in the profession. Relying on first-class service, strict management, our company established a long-term strategic cooperation relations with many rubber machinery factory through the way of joint venture. We has formed the seriation product mix, can undertake each kind of rubber production production line.
The main product of our company: Internal mixer, Two roll Mixing mill, extruding equipments, calendar equipments, Cutting machine, cooling equipment, Vulcanizing equipment, and Reclaimed rubber production line, rubber sheet extrusion line, Motorcycle&bicycle Tube &Tires production line, Conveyor Belt production line, V belt production line, rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery.
With the rapid development of our company, Qingdao Sea King industrial Limited was founded. The company has established good commercial relationship with many companies in China by joint venture holding. Products include Rubber Machine, Raw Rubber Material Rubber Products and so on.
During these years, our company has good working relationship with many rubber machinery factory under our strong foundation, restricted management, good service and reputation. Our business scope and quantity are enhancing.
We strictly follow the policy"to satisfy our clients' need with quality work, advanced technology, optimized design solution and excellent service"
