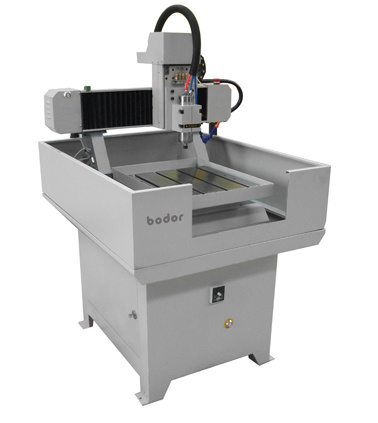

CNC metal engraving machines
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan Hiwin straight line guide rail.
2. Use high speed drive motor, the speed enhanced nearly 1.5 times faster than the original type.
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. with good compatibility, this machine can work with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily
Applicable industry
Moulding industry, it can engrave all kinds of nonmetal molulding, especial for autocar foam moulding, steamship wooden model, aviation wooden model, train wooden model, etc.
Musical instrument industry, it can engrave 3D surface of large scale musical instrument and the contour cutting.
|
Description |
Parameter |
|
BRM0303A |
BRM0405A |
BRM0506A |
BRM0606A |
BRM06075A |
BRM0909A |
Working Area
(X*Y*Z) |
300*300*
100mm |
400*500*
150mm |
500*600*
110mm |
600*600*
110mm |
600*750*
150mm |
900*900*
150mm |
|
Structure |
Whole cast iron |
|
Spindle power |
1.5KW/2.2KW /3.0KW/4.5KW, etc. |
Max Moving
Speed |
15000mm/min |
Max Engraving
Speed |
5000mm/min |
XYZ traveling
positioning accuracy |
± 0.02/300mm |
XYZ repositioning
accuracy |
± 0.02mm |
Cutting thickness
of material |
≤ 40mm |
Platform pressure
deformity |
< 0.02mm(150kg) |
|
Spindle Speed |
6000-24000rpm |
|
Voltage |
AC220V, 50/60Hz(option: AC110V, 50Hz/60Hz, AV380V, 50Hz/60Hz) |
|
Drive motor |
High-precision stepper motor(Option: servo motor) |
Command
language |
G code |
|
System |
NC-studio (Option: DSP or Taiwan LNC System) |
|
Tools |
Specially for metals |
Jinan Bodor CNC Machine Co., Ltd., has been always devoting to the research and manufacture of the CNC products such as laser engraving machine, laser cutting machine, laser marking machine and so on. Today, Bodor CNC has developed to a large worldwide Manufacturing Group, and becomes an excellent leader of the world in this field.
Bodor CNC can supply DOT peen marking machines, Laser Marking Machines, CNC Router (Mechanical Engraving and Cutting Machines), Laser Engraving and Cutting Machines and many other industrial automation equipments. Meanwhile we can also supply industrial automation solutions according to your special needs.
Bodor CNC has earned ourselves a good reputation and ten thousands of faithful customers with our advanced technology, standardized producing management, stable products, and the best services. Through years of international marketing experience, we have established business relationships with the customers from North America, West Europe, South Asia, and Middle East, etc. Welcome to join the world of Bodor CNC, You can experience the world-class products and services together with our customers all over the world.
