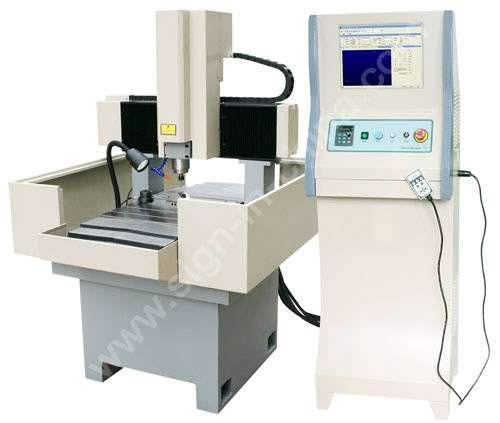

Main Configuration Information:
Engraving Area: 420*420mm
Height of Gantry Lifting: 150mm
Max. Travel Speed: 3.6m(step)/6m(servo)/min
Spindle Power: 1.5 KW
Machine Body: Double column stand, cast iron built, linear guide system. German ball screw, high speed double CPU-CNC control system.
I set of cutters (7 PCS) supplied with each machine.
Application:
The CNC mould engraving machine can very easily satisfy most mould cutting requirements. The hand controller is very easy to operate and allows for faster operations. Suitable for mould injections, heat transfer moulds, press moulds, and other copper and EDM moulds.
Product Highlights:
1. The CNC mould engraver was released in 2005, it uses a double column stand, cast iron built, and linear guide system.
2. This CNC mould engraver comes with a German ball screw, high speed double CPU-CNC control system, SaiO2 controller, microstep driver and a 1.5kw water cooled spindle.
3. This CNC mould engraving machine can very easily satisfy most mould cutting requirements.
4. The hand controller is very easy to operate and allows for faster operations.
5. Equipped with Type3 engraving software. The CNC mould engraver is compatible with other various CAD/CAM software, such as Artcam/ Casmate/ Proe/ UG/ Artgrave, Ucancam V8, etc.
6. 12 Months Warranty on all parts and labour.
7. Power-off protective memory function assures restarting work in the same position after power-off.
Guarantee & Aftersales Service:
Comprehensive guarantee for one year except the wearing parts.
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintaining.
With the following optional devices, more functions can be added to the engraver machine(prices are not included in the selling engraver):
Add fourth axis(Step Motor): + $3520
Add fourth axis(Servo Motor): + $4400
Servo system(half enclosed): +$2088
Servo system(whole enclosed): +$2650
Model |
CNCR-MEII-4242 |
Working Table Size |
440*540mm |
Max. Working Size |
420*420*150mm |
Spindle Power |
1.5KW water cooled spindle |
Positioning Precision |
± 0.03/300mm |
Spindle Rate |
24000r/min |
Max. Travel Speed |
3m(step)/6m(servo)/min |
Engraving Tool Diameter |
Ø 3.175, Ø 4, Ø 6 mm |
Driving Motor |
Step motor, half enclosed |
Power Source |
AC220V± 10% 50Hz |
Consumption |
4.0kw |
Optional Device |
The fourth axis-rotary fixture, Servo motor(half enclosed), Servo motor(whole enclosed) |
Wearing Parts |
Cutter |
Machine Dimension |
1050*1300*1620 mm |
Machine Net Weight |
740kg |
Package |
Fumigation free wooden case package |
Packing Size |
1520*1220*1850mm, 730kg control cabinet: 720*610*1720mm, 90kg |
Gross Weight |
820kg |
