Application:

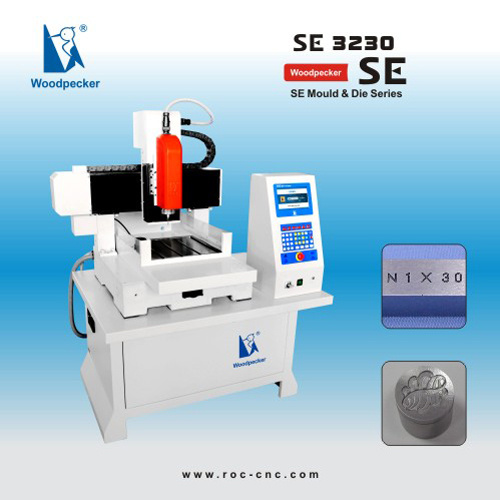

SE-3230 small mould engraving machine is a new CNC engraving machine developed for small moulds and for working on metal.
The machine can have multi-spindle for large-scale production.
Main Configuration Information:
Max. Engraving Area: 320*300*100mm
Max. Travel Speed: 3m (step)/min
Spindle Power: 800W water cooled spindle
Machine Body: Double column design, imported linear
Guide and ball screw, USB 2.0 connector and a large
Internal memory, Linear guide, DSC controller, step motor.
I set of cutters (8PCS) supplied with each machine. Specialized cutters available for hard materials.
Product Highlights:
1. The small mould engraver has a double column design, imported linear guide, imported ball screw. It is small, fast, sturdy and accurate.
2.800W water cooled spindle, double CPU controll system, DSC controller.
3. This CNC engraver comes with a 5.7 inch LCD display, USB memory stick, internal memory and USB communications port.
4. The CNC engraving machine is easy to operate and easy to learn. You can choose speed priority or quality priotity and its easy to switch between the two.
5. The cutting knife goes in at an angle versus a straight line for smoother cutting.
6. The machine gives a high price to performance ratio and can be used on a broad range of applications.
7. I set of cutters (7 PCS) supplied with each machine
8.12 Months Warranty on all parts and labour.
9. Power-off protective memory function assures restarting work in the same position after power-off.
Guarantee & Aftersales Service:
Comprehensive guarantee for one year except the wearing parts.
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintaining.
|
Model |
SE-3230 |
|
Working Table Size |
380*360mm |
|
Max. Working Size |
320*300*100 mm |
|
Spindle Power |
0.8KW water cooled spindle |
|
Positioning Precision |
± 0.04/300mm |
|
Spindle Rate |
24000r/min |
|
Max. Travel Speed |
3m/min |
|
Engraving Tool Diameter |
Ø 3.175, Ø 4, Ø 6 mm |
|
Driving Motor |
Step motor |
|
Power Source |
AC220V± 10% 50HZ |
|
Consumption |
2kw |
|
Optional Device |
The fourth axis-rotary fixture |
|
Wearing Parts |
Cutter |
|
Machine Dimension |
1000*920*1360mm |
|
Machine Net Weight |
180kg |
|
Package |
Fumigation free wooden case package |
|
Packing Size |
1200*1200*1850mm |
|
Gross Weight |
230kg |
