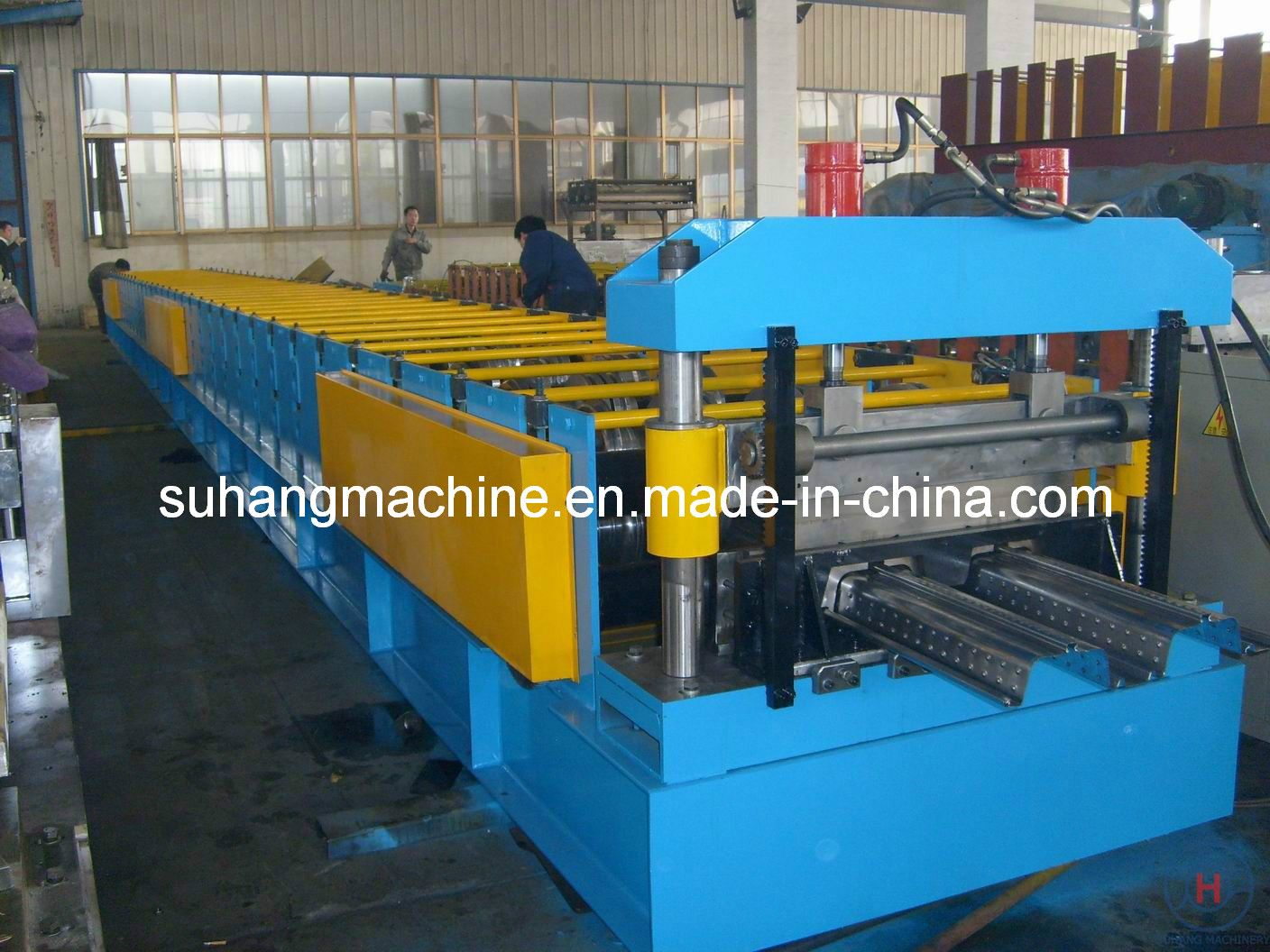

Metal Decking Forming Machine

Metal Decking Forming Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
The panel produced by this machine has high strength with big wave. It adheres well to concrete. It is used on high buildings. It not only saves steel mold plate, but also saves investment.
The deck floor panels forming by this machine is used for high building surface panels, it has so many good advantages, such as high wave, high strongness, high atuomation, low cost.


Machine Components:
Unpowered Decoiler, Main forming machine, Forming cutter, Computer control system, Hydraulic station, Product Rack


Working Flow

Decoiling guiding and feeding roll forming cut to length run out table


TRANSPORTATION
All goods will be shipped to your country, containers number will be decided with how many machines would you choose

Installation of the machine
The individual components of the machine are installed according to the layout and prepared for the commissioning.

The installation comprises of:
- Installation by Suhang service technicians.
- The following services are included:
- Installation of the machine components.
- Adjustment of the machine components.
- Connection of all motors to the control cabinet.
- Installation of the required safety devices.

Delivery extent does not comprise of:
- Media supply (electrics, etc. )to the machine(control cabinet)
- Raw material, process material
- Raw material for test
- Transport and lifting devices
- Auxiliary staff.

The operators of the plant should be present during the installation in order to become familiar with the new machines.
Number Items Unit\Type RF-FD
1 Steel Thickness mm 0.8-1.2
2 Steel feeding width mm 1000-1250
3 Forming Speed m/min 10-15
4 Roller stands stand 30-36
5 Roller Material   45# steel, coated with chrome
6 Hydraulic cutting Power Kw 18
7 Hydraulic pressure Kw 5
8 Hydraulic pressure Mpa Mpa 12
9 Power Supply   380V, 50HZ,3 phase
10 Tolerance mm 1.5
11 Material of cutting   Cr12
12 Control system   PLC with touch screen
13 Machine net weight T 16

Prod Model: RF-FD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Suhang
Voltage: 380V
Power(W): 30kw
Dimension(L*W*H): 15m*1.5m*1.2m
Weight: 15ton
Warranty: 1 Year
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Control System: PLC with Touch Screen
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.

Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.

Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.

Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
