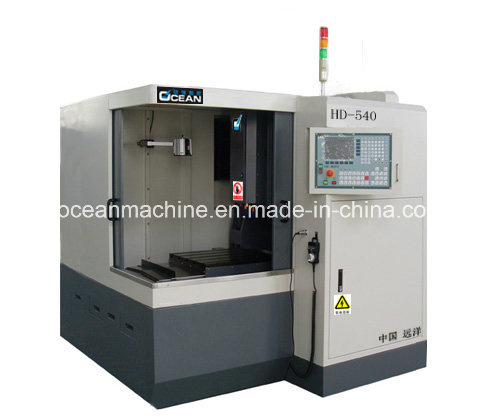

Metal Engraving/Cutting Machine, Japan Servo Motor and Driving, Hiwin and THK Straight Line Guide (HD540)

Metal Engraving/Cutting Machine, Japan Servo Motor and Driving, Hiwin and THK Straight Line Guide (HD540)
Price: US $ 60000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Specifications:
Table size: 500 x 400mm
Working stroke: 500 x 400 x 230mm
Servo motor: Japan Yaskawa 850 AC motor
Spindle power: 5.5kW
Rotational speed: 1, 8000rpm
Install blade method: ER25
Blade specification: 3 to 16mm
Work table loading: 260kg
Repositioning: 0.005m
Localizer resolution: 0.008mm
Maximum traveling speed: 15m/minimum
Maximum cutting speed: 7m/minimum
Cooling system of spindle: Water cooled chiller
Bearing: Japan NSK ball screw
Lead screw/lead rail: C3 ball screw P grade guide
Power supply: 380V AC/10kW
Machine weight: 2, 800kg

Applications:
Whole cast-iron structure, steady structure, high rigidity
An embedded water-cooled motor spindles, high precision rotate speed, 5.5kW design, ultra-fast cutting and chopping
HIWIN, THK linear guide, thin friction coefficient, smart following functions, high speed machining, high strength-oriented, purr machine movement

Japan servo motor and drive + Germany R + W shaft coupling, high precision and stable function
High engraving quality, scan speed 12 to 15m/minute, actual engraving speed 5 to 7m/minimum good finish and high precision (50% advanced than plain milling machine)

Manufacture the plastic mold, engraving the copper public, steel mold
Different styles of dummy sample, aluminum parts, precision component and more
Standard configurations: Baoyuan control system, spindle cooling machine, tool setting gauge, hand wheel, tool cabinet (1 set)
Full enclosed safety work space, operating manual, screw driver (1 set)
Prod Model: HD540
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size: 500 X 400mm
Working Stroke: 500 X 400 X 230mm
Servo Motor: Japan Yaskawa 850 AC Motor
Spindle Power: 5.5kw
Lead Screw/Lead Rail: C3 Ball Screw P Grade Guide
Process Usage: Metal-Cutting CNC Machine Tools
Movement Method: Contour Control
Control Method: Closed-Loop Control
Numerical Control: CNC/MNC
Performance Classification: Economical CNC Machine Tools
Processing Precision: 0.005mm
R&D and Production of Various Machines

Established in 2006, Ocean Machine is a high-technology modern manufacturer specializing in engraving machines, metal cutting machines and milling machines. The raw materials we use include natural marble, high precision driving components from Japan and control system from Taiwan. This results in reliable products with long lifespan. They are applied to mobile touch screens, acrylic, PCS, copper, plastic and processed aluminum shells.

Development History

In 2011, we opened our branch office in Tokyo and started using the most advanced Japanese numerical control technique for a more efficient management system. We have been improving our quality day by day by adhering to our customers' actual requests and studying advanced technology abroad.

In 2012, we implemented the process from automation control technology to international production line. We also launched our glass automatic feed engraving machines and curved glass cutting machines. As a result, we became a leader in the OGS glass and optical equipment processed machinery industry in China. Today, we are a famous brand in the industry and have gained a high reputation among customers globally.

Conforming to ISO Standards

We have a production ability of over 400 sets monthly, and for your assurance, we strictly comply with ISO 9001: 2000 standards.

If you are interested in learning more about us, inquire today.
