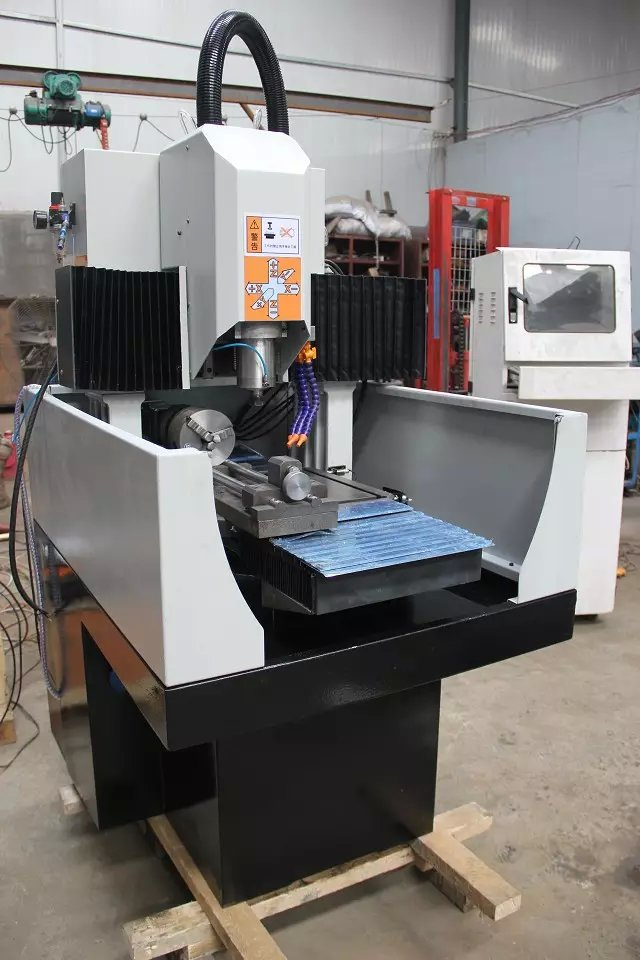

Metal Engraving Machine for Mould

Metal Engraving Machine for Mould
Price: US $ 3600-4600/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Metal Engraving machine for Mould

Specification Parameter

Description

Parameter

TZJD-4040M

Working Area (X*Y*Zmm)

400mm*400mm*180mm

Max Engraving Speed

6000mm/min

Frame

Cast Steel

Spindle power(KW)

2.2KW/3KW/4.5KW/5.5KW

Max. Power Consumption(Without spindle)

1.2KW

Spindle Speed
Maximum cutting thickness
Maximum operating speed

6000-24000rpm
30mm
10000mm/min

Resolution

0.005mm

Repeatability

0.01mm

Voltage

AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)

Drive motor

Stepper(option:Servo motor)

Working Dictate

G Code*.u00*.mmg*.plt

Operating system

Nc-studio/DSP optional

Software environment

Windows98/2000/xp/7

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3,,Ucancam,Artcam Software)

Diamerer of cutter

3.175, 6mm, 12.7mm, 2mm,1mm, etc.

Running Environemt

Temperature: 0ºC~45ºC

Relative humidity: 30%~75%

Machine necessary
Rotary attachment,
Dust collector system, spindle cover,
Japan Panasonic Servo motor(optional),
Auto-oiling system, Tool-sensor,
water tank system, water-cooled system,
spray mist cooling system.

Applicable materials
Jade,Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board, PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.

Product Features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power.
Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.
Prod Model: TZJD-4040M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue White, Also as Demands
Working Area: 400mm*400mm*180mm
Structure: Germany Ballscrew
Machine Body: Cast Iron Whole Body
Guide: Hiwin Square Linear Bearings
Controller: Ncstudio/DSP/Syntec/Lnc
Motor: Stepper/Servo
Driver: Leadshine
Inverter: Fulling
Software: Original Type3 Artcam, English Language
Carving Material: Metal Alloy
Certification: SGS FDA BV
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.

The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

Tengzhou Jianda CNC Machine Co., Ltd  Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.



Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.



Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
