1. The proffessional factory of fittings.
2. The important manufacture of fittings in China.
3. High quality and better price.

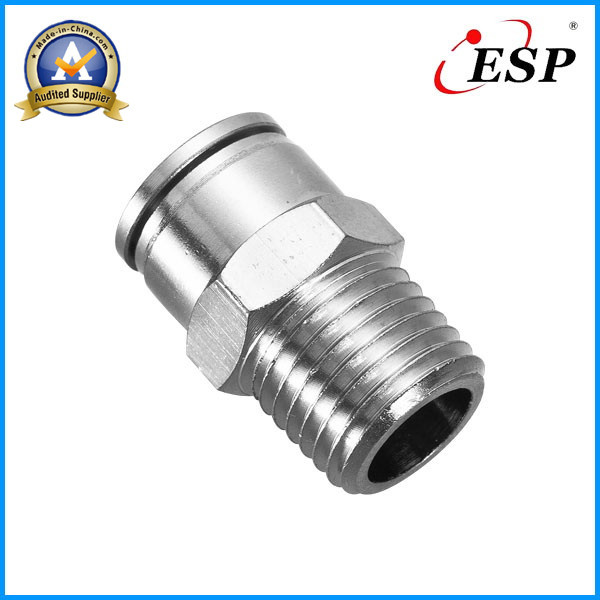

We are factory of pneumatic fittings.
The tube fitting comes in a wide variety of tube and thread sizes. Even after installation the direction of the tubing can be changed freely.
Sizes Available:
Tubing - Inch, Metric;
Thread - NPT, BSPT (R), Metric, Unified (UNF), BSPP (G)
NPT --- National (American) Pipe Tapered Thread
BSPT (R) ---British Standard Pipe Tapered Thread
BSPP (G) --- British Standard Pipe Parallel Thread
1: Quick installation.
2: Aesthetically pleasing nickel-plated metallic optional feature ensures anti-corrosion and anti-contamination properties of an extended product life.
3: Pre-applied sealant on all external threads eliminates the additional sealing requirement.
4: A wide variety of models available to meet customers' changing needs in pneumatic piping.
5: Simple and flexible. The direction of the tube can be changed freely even after installation.
6: Internal and external flat-to flat hexagonal configurations for both metric and inch
Specifications allow a proper tightening or directional orientation upon installation by using
L key or allen wrench for the applicable model types.
7: The color of sleeve button can be changed as your requests.
|
Material |
Body and Collet: Nickel-plated Brass;O-ring: NBR(other material is available on request) |
|
Threads |
BSPT,BSPP,NPT, Metric Threads |
|
Pressure Tube to Connect |
0.8-16bar(see tube) PU, PE, Nylon 6-11-12 |
|
Fluid |
Compressed Air |
|
Temperature |
-10C~60C(see data of used tubing) |
|
Metric Size |
|
Code |
04 |
05 |
06 |
08 |
10 |
12 |
14 |
16 |
|
Dia. |
4mm |
5mm |
6mm |
8mm |
10mm |
12mm |
14mm |
16mm |
|
Inch size |
|
Code |
1/8 |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
Dia. |
1/8inch |
5/32inch |
3/16inch |
1/4inch |
5/16inch |
3/8inch |
1/2inch |
|
|
Metric Size |
|
Code |
M3 |
M5 |
M6 |
M8 |
M10 |
M12 |
M12A |
M14 |
M16 |
M20 |
|
Dia. |
M3x0.5 |
M5x0.8 |
M6x1 |
M8x1 |
M10x1 |
M12x1.25 |
M12x1. 5 |
M14x1.5 |
M16x1.5 |
M20x1.5 |
|
|
55 Taper Pipe Thread(BSPT) |
G-Thread(BSPP) |
|
Code |
01 |
02 |
03 |
04 |
06 |
08 |
G01 |
G02 |
G03 |
G04 |
|
Dia. |
R1/8 |
R1/4 |
R3/8 |
R1/2 |
R3/4 |
R1 |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
|
|
American Standard Taper Pipe Thread(NPT) |
|
Code |
U10 |
N00 |
N01 |
N02 |
N03 |
N04 |
N06 |
N08 |
|
Dia. |
10-32UNF |
NPT1/16 |
NPT1/8 |
NPT1/4 |
NPT3/8 |
NPT1/2 |
NPT3/4 |
NPT1 |
Zhejiang Yipu Pneumatic Technology Co., Ltd. Specializes in producing quick disconnect couplings of plastic pneumatic components, quick straight couplings of moulds, adjustable couplings of pneumatic components, dust blower and pneumatic tools direction control valve(solenoid, air-pilot, handle, pedal, mechanical), air conditioning unit(filter, regulator, lubricator)and pneumatic cylinder, etc. Products are applied very extensively, such as packing machinery, food machinery, printing machinery, textile machinery, purifying water and water treatment trade, automobile industry, mould industry and household use etc.
On the basis of introducing all kinds of talents, in the spirit of constant innovation and improving quality, with sincerity as our shield to meet the demands of clients, our factory controls quality in the process of design, production and delivery, providing good quality products for every client. Our products find good markets both at home and abroad, which are exported to the countries and regions of the United States, Germany, the Middle East, United Arab Earbuda, Sweden, Singapore, Viet Nam, Spain, Syria, Thailand, Turkey, Philippines, Argentina, Lebanon, Liberia, Malaysia, Nether lands, Iran, India, Canada and Taiwan etc.
We will keep "excellent quality, good reputation"continuously. Welcome the massive old and new clients at home and abroad to keep or establish lasting cooperative relationship, seek for good development in business together. Hope to receive precious ideas and suggestions from domestic and overseas' Friends. Let us create good achievements in this hot spot and go out for a nice tomorrow together.
