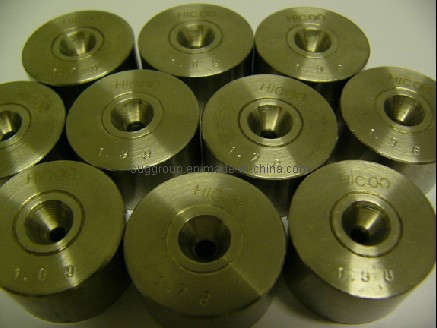

PolyCrystal Diamond Drawing Dies
1. Core: PolyCrystal
Imported Core of Polycrystal Drawing Dies: GE(America), Sumitomo(Japan)
Domestic Core of Polycrystal Drawing Dies: Sifang
2. Case: Stainless steel
3. Advantage:
A)Unique technical expertise
B)high wear resistance, hardness
C)high mechanical strength and tenacity.
Features:
Polycrystal Drawing Dies---- Imported Core
1. Pefect Core --- Imported Core of Polycrystal Drawing Dies
Super Average granule formed by high temperature and pressure and then Crystallized
2. Ensure the anti-round degree and fineness suface in the drawing process
3. Avoid to appear the phenomenon of drawing dies abrade and flat wire
4. Increase the drawing dies service life
Three of five times than diamond, two times than high crystal drawing dies, ten or
Twenty times than tungsten carbide drawing dies
5. Gain easily long term and bright wire material of sable diemensions.
Polycrystal Drawing Dies---- Domestic Core
1. Excelent Core --- Domestic Core of Polycrystal Drawing Dies
2. A kind of man-made diamond product developed in domestic recently several years
3. Imitating imported Polysrystal Drawing Dies
4. More average crystal degree and more reasonable molecule allies structure
5. Produced in high temperature press, can bearing the temperature up to 1200 degree
6. Better product to instead imported Polycrystal Drawing Dies with much cheaper price
Applciation:
PolyCrystal Diamond Drawing Dies are widely applied to a variety of industries, implemented as drawing tools for soft wire products (copper and aluminum wire etc. ), as well as hard wire products (stainless steel, tungsten and copper plated steel wire etc. ).
Suitable for drawing platinum rhodium wire, gold wire, silver wire, copper, aluminum, molybdenum, nickel, tined, copper, tungsten, copper, aluminum alloy, steel, stainless steel, steel cord, iron and other nonferrous metal wire material.
Specification:
Hole size: 0.015mm_10.00mm
Case size: 25x12mm, 28x11mm, 30x15mm, 25x10mm, 24x10mm, 43X27mm, 58X25mm etc.
Tolerance: +0/-0.001---+/-0.1mm
Any other special request, we can do according to customer request.
PACKAGE AS PER CUSTOMER REQUIREMENT
Apart from this, also manufacture all types Extrusion Wire Dies in Carbide, Repolishing and resizing PCD Drawing Dies.
|
|
Soft Wire |
Hard Wire |
|
Entrance angle |
70º +/-20º |
60º +/-20º |
|
Reduction angle |
16º +/-2º |
14º +/-2º |
|
Bearing length |
25--50 |
40-80 |
Exit angle
|
15º +/-5º |
15º +/-5º |
|
Back relief angle |
50º +/20º |
50º +/20º |
|
|
Copper Wire, aluminum wire, brass wire, gold wire, etc. |
Stainless steelwire, coopper plated steel wire, tungsten wire |
|
HOLE SIZE |
TOLERANCE |
ROUNDNESS |
CASZING REF. SIZE |
|
mm |
mm |
|
mm |
|
0.100--0.200 |
0.0015 |
0.0015 |
Φ 25× 6~8 |
|
0.201— 0.500 |
0.002 |
0.002 |
Φ 25× 8~10 |
|
0.501— 1.000 |
0.003 |
0.003 |
Φ 25× 10~12 |
|
1.101-1.500 |
0.005 |
0.005 |
Φ 25× 12~14 |
|
1.501-2.000 |
0.007 |
0.007 |
Φ 25× 12~14 |
|
2.001— 3.300 |
0.007 |
0.007 |
Φ 28× 15 |
|
3.301— 4.600 |
0.010 |
0.010 |
Φ 28× 15 Φ 42× 20 |
|
4.600— 8.000 |
0.015 |
0.015 |
Φ 43× 27 |
|
HOLE SIZE |
TOLERANCE |
CASING REF. SIZE |
|
inch |
mm |
mm |
mm |
|
0.0008 |
0.020 |
0.0006 |
Φ 25X6~8 |
|
0.0008--0.0019 |
0.020— 0.050 |
0.0006 |
Φ 25X8~10 |
|
0.0020--0.0039 |
0.051— 0.100 |
0.001 |
Φ 25X8~10 |
|
0.0040-0.0079 |
0.101— 0.200 |
0.001 |
Φ 25X8~10 |
|
0.0080— 0.0199 |
0.201--0.500 |
0.0015 |
Φ 25X8~10 |
|
0.0200— 0.0399 |
0.501— 1.000 |
0.002 |
Φ 25X10~12 |
|
0.0400— 0.0590 |
1.000— 1.500 |
0.0025 |
Φ 25X12~14 |
|
0.0591— 0.0866 |
1.501— 2.000 |
0.003 |
Φ 25X14 |
|
0.0867— 0.1299 |
2.001— 3.300 |
0.004 |
Φ 28X16 Φ 30X16 |
|
0.1300— 0.1810 |
3.301— 4.600 |
0.005 |
Φ 28X16 Φ 30X18 |
|
0.1811— 0.2164 |
4.601— 5.500 |
0.006 |
Φ 43X26 |
|
0.2165— 0.3150 |
5.501— 8.000 |
0.008 |
Φ 43X30 |
