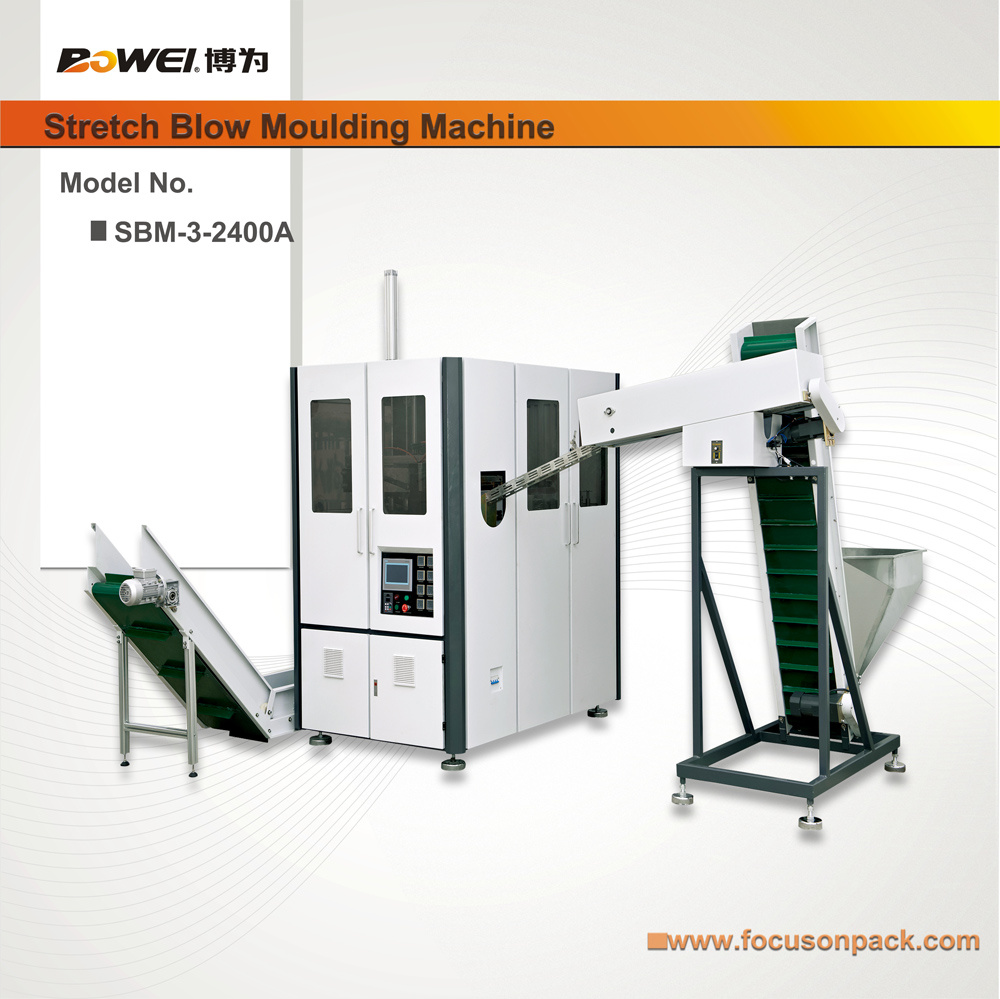

Mineral Water Bottle Blow Moulding Machine

Mineral Water Bottle Blow Moulding Machine
Price: US $ 18500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Mineral water bottle blow moulding machine

Description and Advantage:
Mineral water bottle blow moulding machine is specially designed by us and is our patented product. It is upgraded from semi-automatic PET Bottle blow moulding machine. Compared with semi-automatic, the capacity has been increased a lot which can achieve 2500Bottles per hour and labor cost will be reduce a lot; Compared with full-automatic, the cost is only half. We strongly recommend this model.

How Mineral water bottle blow moulding machine works:
1. Preforms are loaded into the hopper, which holds up to 3000 preforms at a time.
2. An elevator moves preforms up to a gravity-based sorter, which aligns preforms on a conveyor.
3. Preforms are then aligned and loaded onto a chute, where they are gravity-fed into the preform holders. Four preforms simultaneously move through two parallel heat tunnels, each with eight heat zones and two quartz heating elements.
4. The preforms move through the heat tunnels, where they are heated to the optimal blowing temperature prior to entering the molds.
5. From the heaters, preforms are loaded into the custom-designed molds where four bottles are blown at a time. A pressurized liquid chiller keeps the mold temperature in a controlled range to ensure that consistently high-quality bottles are blown.
6. The blown bottles, still in the preform/bottle holders, are placed on the exit conveyor.
7. Bottles are conveyed out of the Blow Molder and into collection receptacles, then moved to storage areas to await processing on the production line.
Model NoHZ-880B-3
Nos of Cavity3Cavity
Output1800-2500BPH(Bottle per Hour)
Power Consumption15KW
Power Supply220/380/50-60V/HZ
Blow Molder Overall:(L×W×H)2.0×1.2×2.1Mtr
Main Body Weight1.2T
Preform Autoloader Overall 1.5×0.85×2.2M
Preform Autoloader Weight0.5T

Prod Model: 880b-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product: Mineral Water Bottle Blow Moulding Machine
Nos Of Cavity: 3
Output: 1800-2500bph
Volume: 0.5-1.5L
Raw Material: PET
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: CE
We are one of leading packaging machinery company in China to help our customers reach their production goals.

Designing and building purified water & mineral water treatment, Liquid filling machines, paste filling machine, linear filling machine, rotary filling machine, e liquid filling machine, corrosion resistant filling machine, rotary capping machines, linear capping machine, adhensive labeling machines, shrink labeling machine, inkjet coder, sleeve shrink wrapping machine, stretch blow molding machine.

Packaging machines to deliver complete turn-key packaging lines which are widely used for cosmetic creams such as shampoo, lotion, liquid soap, hair conditioner, essential oil, food such as edible oil, water, syrup, sauce, chemical such as alcohol, solvent, corrosive liquid and drink water bottling plant, juice plant and yoghurt plant. Our equipments are engineered for durability and ease to use.

Warmly welcome to visit us and establish long-term business relation.
