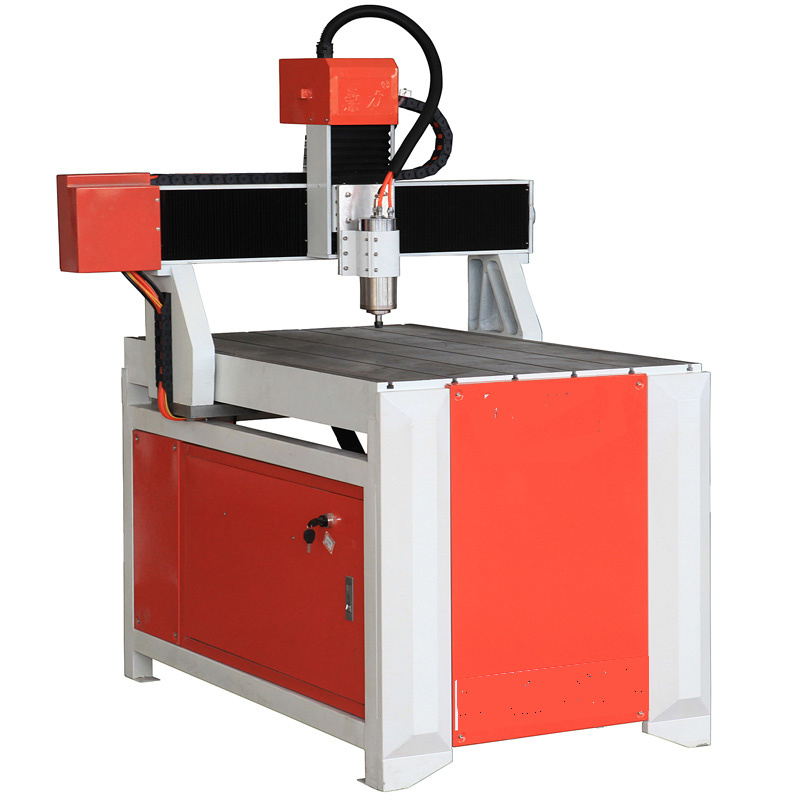

mini CNC wood engraving machine

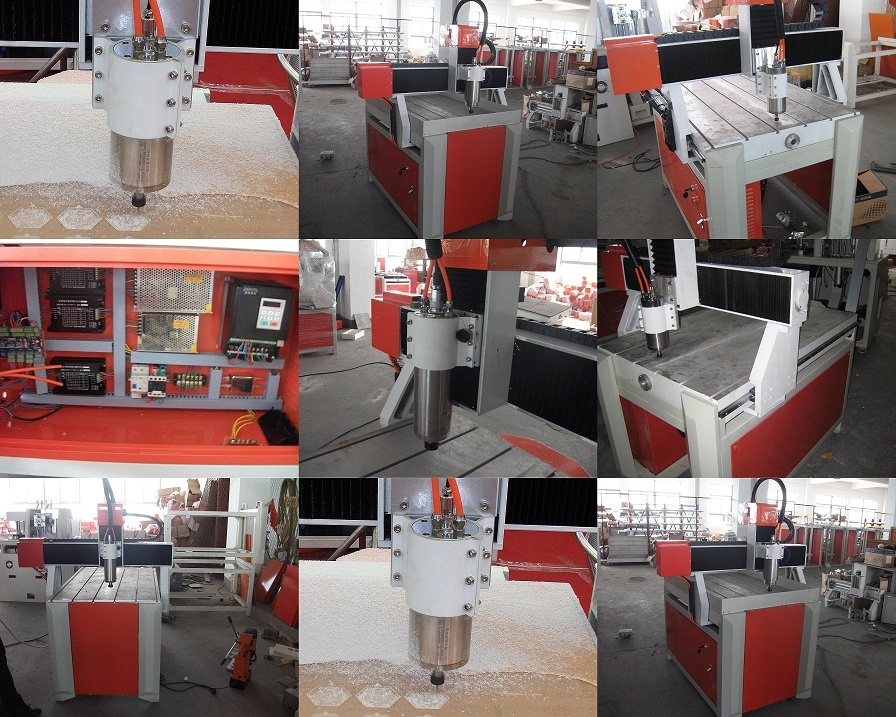

Features
1.The lathe bed is cast iron wholly. High-rigidity ,firmness, without deformation.
2.Three axes adopt the imported ball screw rod with high precision and circular guide rail which ensures the precision of machine.
3.High subdivision step motor with high speed, low noise, running firmly, and powerful torque cutting.
4.Adopts brushless water cooled spindle with frequency conversion. With low noise, the service life is long, and rotated steadily.
5.High-power, deeply incise. It can incise 30mm thickness acrylic once.
6.The software of the machine can be upgraded so as to ensure the machine improved constantly.
7.Opening software interface can connect all kinds of 3D engraving software, compatible with high precision software.
8.Inserting DSP control system can be optional to this machine.
Applications
Advertisement:
engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
Crafts:
engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
Moulding:
engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models:
engraving fine window, fencing and wall patterns, etc.
Seal:
engraving seals and medal on materials such as buffalo horn, wood etc.
Label:
engraving character, number, and other pattern on label for products and on product directly.
Wood processing:
processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture
Specification:
Model | OD-6090 |
Working Zone: (X Y Z) | 600×900×80mm |
Table Size (W×L) | 740×1120mm |
Resolution | <0.002mm |
Cutting Accuracy | ± 0.02/300mm |
Repositioning Accuracy | ±0.01mm |
Axis Drive System (X Y Z) | Precision Ball screw rod |
Drive Type | stepper motor |
Spindle | 1200W liquid-cooled with 24,000rpm,VFD |
Max. Working speed | 8000mm/min |
Collets Type | 3.175mm/4mm/6mm |
Command Code | G*.u00*.mmg*nc.,HPGL |
Operational System Software | Type 3/Artcam/castmate/wentai |
Control System | NC studio/DSP |
Interface | PCI/USB |
Max. Power Consumption | 1.8KW |
Voltage | AC220V±10%/50~60Hz |
Standard Work Surface | Aluminum profiles |
Weight | 230kg±10% |
Warranty | 12 Months (spindle: 6 months) |
