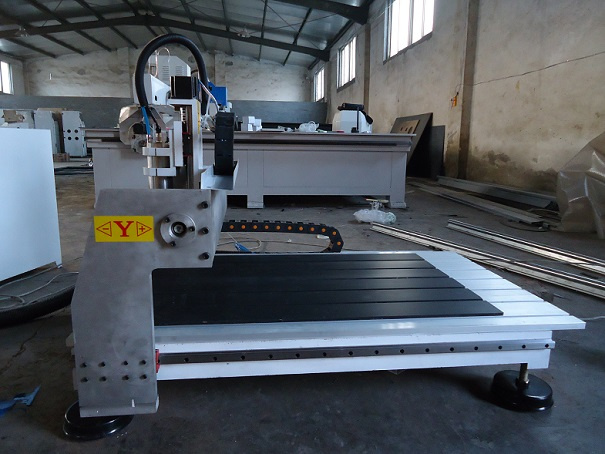

Mini High precision CNC Milling machine1. German Ball Screw Nut and imported Guide; Guarantee the long-life using.
2. Broken-point memory ensures the continuity of work when inciddent happens.
3, Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy.
4. Solid gantry, well structure of lathe bed, stable lathe table.
5. High power cutting of Desktop CNC Router ensures the smoothness and clearness of the processed metal.
6. High-speed spindle with water cooling system works vigorously with low noise and guarantees long time mass processing.
7. Aluminum decorated appearance, beautiful shape and magnificent looking.
8. Wide range of use: Architecture model, school, government departments and enterprises.
9. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
Applicable industryCan be used for advertisement engraving and cutting, handicraft industry, various types of man-made plate, LED, Neon literlly cutting groove, stone processing, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, PCB circult board engraving.
Applicable materialAcryl, wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board, breastplate, indoor & outdoor decoration, etc.
Ad CNC router, CNC engraver/carver for advertising, advertising carving CNC machine, CNC router, engraving cutting machine, CNC machine, CNC engraving machine, engraver, advertising machine, CNC carving machine;
| Description | Parameter |

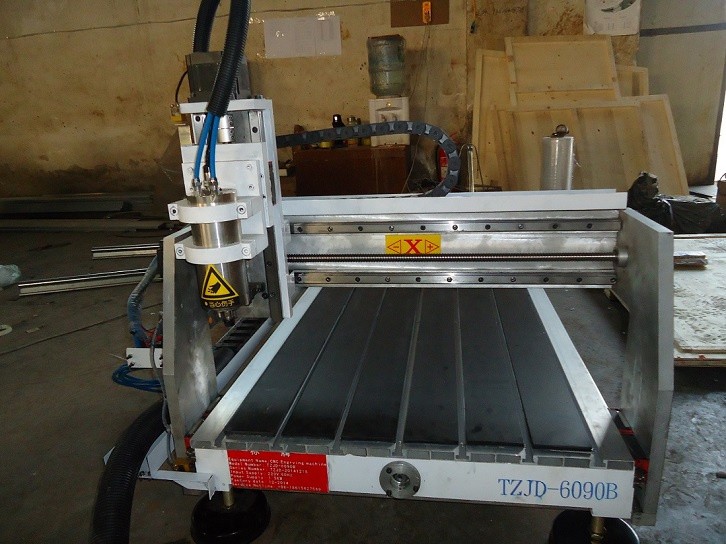

| TZJD -6090B |
| Working Area (X*Y*Zmm) | 600mm* 900mm* 100mm |
| Max Engraving Speed | 6000mm/min |
| Frame | Cast Aluminum |
| XYZ travelling positioning accuracy | ± 0.03/300mm |
| XYZ repositioning accuracy | ± 0.02mm |
| Spindle power(KW) | 1.5 KW /2.2KW/3KW |
| Max. Power Consumption(Without spindle) | 1.2KW |
| Spindle Speed | 6000-24000rpm |
| Resolution | 0.005mm |
| Repeatability | 0.01mm |
| Voltage | AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
| Drive motor | Stepper(option:Servo motor) |
| Working table | T-Slot with PVC board |
| Working Dictate | G Code*.u00*.mmg*.plt |
| Operating system | Nc-studio /DSP/Mach3 optional |
| Software environment | Windows98/2000/xp/7 |
| Interface | USB |
| Flash memory | 128M(U Disk) |
| Software Compatability | Type3,,Ucancam,Artcam Software) |
| Running Environemt | Temperature: 0- 45 |
| Relative humidity: 30% -75% |
| Machine available |
Dust collector system, spindle cover, Japan Panasonic
Servo motor, vacuum absorption table & vacuum pump
system, Auto-oiling system, Tool-sensor, |
