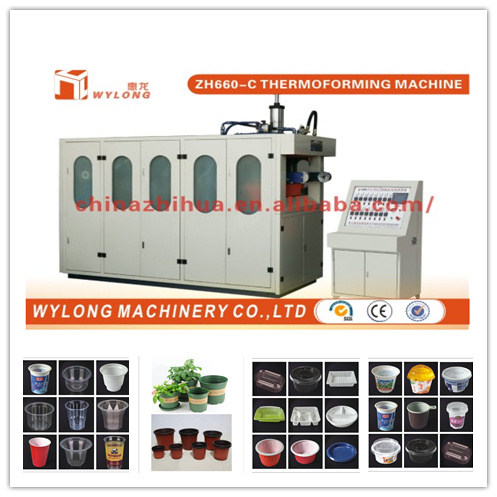

Mini Sauce Case Thermoforming Machine

Product Description                                                                      This model adopts Servo motor feeding and PLC control system. It produces various kind of disposable plastic cups, plastic bowls and other plastic containers for all kinds of cool and hot drinks, ice cream, fast food etc. It is also widely used in package of medical, light industrial and electronic fields.   SPECIFICATIONS Sheet Materials                       PP.PS.PET.PE.ABS Sheet Width                           500-650mm Sheet Thickness                     0.25-2.5mm Max. Forming Area               620x270mm Max. Forming depth             140mm (Can be adjust to220mm with request) Forming Pressure                     0.5-0.8Mpa Productivity                             10-35 mould/min Rated Heading Power             67Kw Starting Power                       70K w Total Weight                           4.5ton Water Temperature                 >30°C Overall Dimensions                 3300x1500x 2200 mm CONFIGURATION LIST PARTS NAME ORIGIN Oil Pump USA (Parker) Reversing Valve Japan (Yuciyuken) Spill Valve Japan (Yuciyuken) Magnetic Valve Japan (SMC) Servo motor Japan (YASKAWA) Relay Japan (Omron) Relay Plate Japan (Omron) Temperature controller Japan (Omron) PLC Germany (SIEMENS) Touch screen Germany (SIEMENS) Other Electrical equipment Schneider      PHOTOS                                                                                                                                  QUESTIONS YOU MAY ASK                                                       Q1: Do you have different models for each machine? Reply: Yes, we have different models and we can make the machine according to your requirements. Q2: What is the production time? Reply: Normally we need around 45 days. Q3: What service you can offer after we buy the machine? Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you. Q4: Should the customer send the sample cups? Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation. Q5: What about the payment terms? Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight. Q6: What is the capacity of the thermoforming machine? Reply: Working 20 hrs/day, the capacity is 300,000-500,000 pcs/day. The accurate capacity depends on the size and material of the products. Q7: How much space it needs for the thermoforming machine? Reply: 5 meters in length (if need stacking machine, require another 3.5 meters), 2.5 meters in width. Q8: What kinds of products can the thermoforming machine produce? Reply: It can produce all kinds of disposible plastic cups, bowls, plates, boxes, yogurt cups, plant pots, food container, etc. Q9: What material can be used in the thermoforming machine? Reply: PP/PS/PVC/PET. Thickness 0.3-2mm. Q10: What is the requirements of the machine for the electricity? Reply: It needs three phase four wire. The copper core cable should be big than 25 mm³, aluminium core cable should be bigger than 50 mm³. Q11: What is the requirements of the machine for the air? Reply: The output volume of the compressed air should be higher than 2.4 mm³/min. The pressure should be higher than 6 kgs. Q12: What is the requirements of the machine for the water? Reply: The displacement of the water should be higher than 1.5 m³/min, and the pressure should be higher than 2kg. The temperature should be between 30°-50 °.      Contact Us
