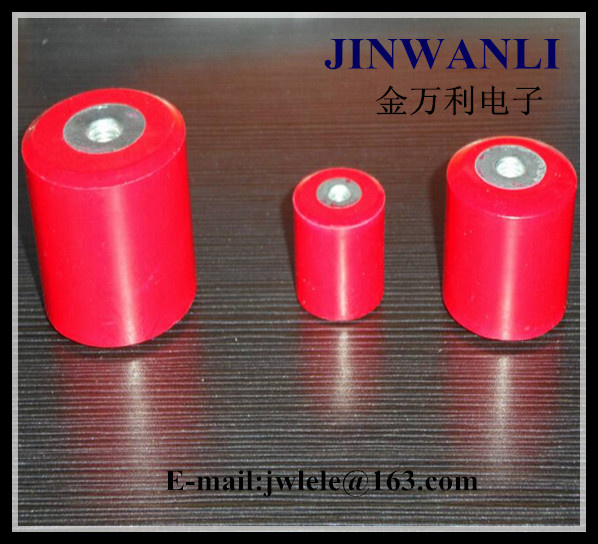

MNS busbar Insulator specification and description
This MNS busbar Insulator product adopts unsaturated polyester glass fiber enhancement mode plastic, excellent electrical edge sex, heat resistance.Be used for Electrical switchgear panel.
Operating Temerature: -40~+140
Insert:Brass.Steel with Zn coating
BMC(Bough Moulding Compound)
SMC(Sheet Moulding Compound)
Color,Insert,material In capability accordance with customer needs!
MNS busbar Insulator outline and dimension
MNS series busbar insulator packing information:
MNS series busbar insulator size(mm):
MNS30 size |
High(mm) | Whorl |
30 | M6 |
40 |
50 |
60 |
MODEL (diameter*high) | Insert Material | Insert/ thread depth | COLOR | PCS/CARTON | HIGH | MOQ |
MNS30*30 | iron | M6*10 | red | 500 | 30 | 1000 |
MNS40*40 | iron | M8/M10*14 | red | 200 | 40 | 1000 |
MNS40*50 | iron | M8/M10*14 | red | 200 | 50 | 1000 |
MNS40*60 | iron | M8/M10*14 | red | 100 | 60 | 1000 |
MNS50*50 | iron | M10/M12*14 | red | 180 | 50 | 1000 |
MNS50*60 | iron | M10/M12*14 | red | 100 | 60 | 1000 |
MNS60*40 | iron | M10/M12*14 | red | 100 | 40 | 1000 |
MNS60*60 | iron | M10/M12*14 | red | 100 | 60 | 1000 |
MNS60*80 | iron | M10/M12*14 | red | 50 | 80 | 1000 |
