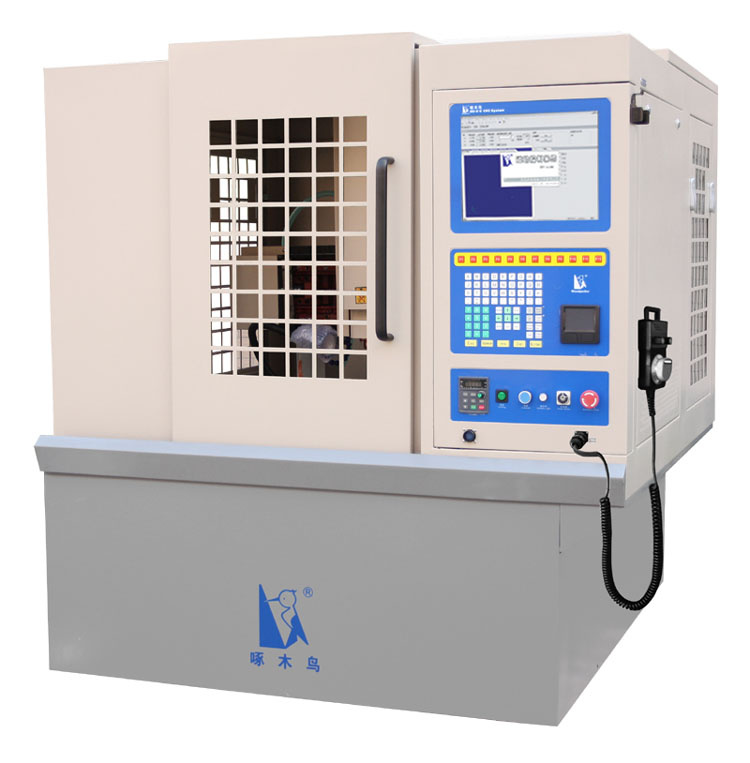

Mold Engraving Machine

Mold Engraving Machine
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Main Configuration Information:
Engraving Area: 550*600mm
Height of Gantry Lifting: 200mm
Max. Travel Speed: 10m/min
Spindle Power: 4.5 KW
Machine Body: Double column stand, cast iron built, linear guide system. German ball screw, high speed double CPU-CNC control system.

Application:
The CNC mould engraving machine can very easily satisfy most mould cutting requirements. The hand controller is very easy to operate and allows for faster operations. Suitable for mould injections, heat transfer moulds, press moulds, and other copper and EDM moulds.

Product Highlights:
1. The CNC mould engraver was released in 2005, it uses a double column stand, cast iron built, and linear guide system.
2. This CNC mould engraver comes with a German ball screw, high speed double CPU-CNC control system, SaiO2 controller, microstep driver and a 1.5kw water cooled spindle.
3. This CNC mould engraving machine can very easily satisfy most mould cutting requirements.

4. The hand controller is very easy to operate and allows for faster operations.
5. Equipped with Type3 engraving software. The CNC mould engraver is compatible with other various CAD/CAM software, such as Artcam/ Casmate/ Proe/ UG/ Artgrave, Ucancam V8, etc.
6.12 Months Warranty on all parts and labour.
7. Power-off protective memory function assures restarting work in the same position after power-off.

Guarantee & Aftersales Service:
Comprehensive guarantee for one year except the wearing parts.
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintaining.
With the following optional devices, more functions can be added to the engraver machine:
Add fourth axis(Step Motor)
Add fourth axis(Servo Motor)
Servo system(half enclosed)
Servo system(whole enclosed).
Model Woodpecker MEII-5560SQ
Working Table Size 600*650mm
Max. Working Size 550*600*200mm
Spindle Power 1.5KW  air cooled spindle
Positioning Precision ± 0.04/300mm
Spindle Rate 18000r/min
Max. Travel Speed 10/min
Engraving Tool Diameter Ø 3.175, Ø 4, Ø 6 ,Ø8, Ø12.7mm
Driving Motor servo
Power Source AC220V± 10% 50Hz
Consumption 9.0kw
Optional Device The fourth axis-rotary fixture
Wearing Parts Cutter
Machine Dimension 1000*920*1360 mm
Machine Net Weight 1600kg
Package Fumigation free wooden case package

Prod Model: MEII-5560SQ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Established in 1992, ROC Machine Electronic System Engineering (Shanghai) Co. Specializes in research and development, production and sales integration of computer numeric control equipment. The company is a foreign owned enterprise, headquartered in Shanghai and occupies over 3000 square meters of office space devoted to research and development, sales and technical services. In addition, the company owns a 50 acre campus in Jiangsu Province, Kunshan with more than 20, 000 square meter of modernized, large-scale factory space.

The company has a team of talented engineers who are responsible for designing hardware, software and CNC applications. Our company has been awarded numerous patents for our designs, innovations and intellectual property in the CNC industry. This is what separates ROC-Mese from other competitors, who do not have these capabilities. ROC-Mese's trademark, Woodpecker, is now a very famous brand in China and the overseas markets.

ROC-Mese's experience in the market has allowed us to build and create machines according to the market needs. We started off with our sign making series of machines and have expanded to include metal mould machines, lock making machines, plasma cutting machines, wood cutting machines and UV printing. We now have several dozens of different machines, which have consistently earned high praise from our end users.

We are the leader in the industry because of our innovation and our brand is famous because of our reliability, expertise and devotion to quality. Quality is extremely important to the company and we strive to have the best quality to price ratio in the industry.

Our company's culture is development of new products with the best quality at an affordable price. The Woodpecker brand will continue to evolve and innovate with new products as we continue to stay one step ahead. Our customers can be confident that Woodpecker will always be there with them.
