Oil type High temperature(300) Two-in-one mold temp controller
Product Description

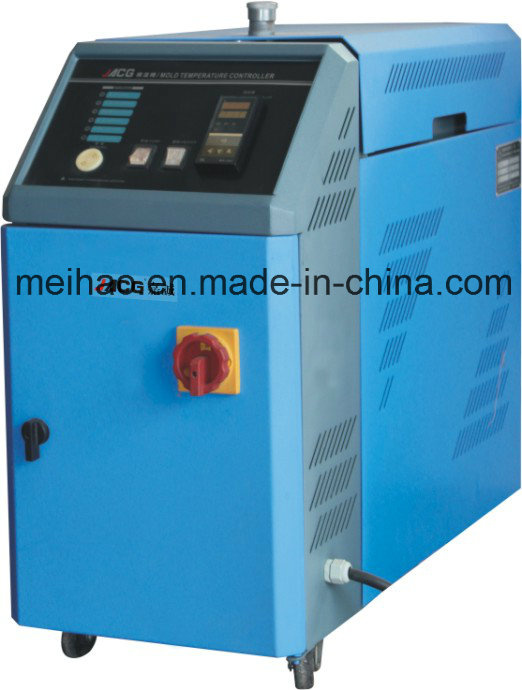

What is Details of mould temperature controller?
Working schematic
Performance characteristic of Mold temperature controller |
Controlled PID micro computer,accurate humidity contol. |
Pump(oil)overload protection to effectively ensure service life. |
Alarm device for low liquid level to guarantee system running safety. |
Swithch of main power source conforms to CE safety standard. |
Phase reverse equipment to guarantee system running safety. |
The machine is equipped converse alarm function Multi fault indicator lamp to facilitate the ustomer knowing the reason and handling in time. |
The heating barrel is made from the stainless steel and cleaned easily. |
Air blowing can be selected for the mould to ensure temporarily clean placing and prolong the service life. |
Specifications
Model | Max temp.°C | Heat Kw | Pump Kw | Flkux L/min | Pressure Bar | Heating Medium | Cooling Mode | Mold Tie Lnch | Exteral Dimensions | Weight(kg) |
JCTC-6W | 95 | 6 | 0.37 | 45 | 3 | Water | Direct Cooling | 3/8"2*2 | 900*350*700 | 65 |
JCTC-9W | 95 | 9 | 0.75 | 56 | 4 | 3/8"4*2 | 900*350*700 | 68 |
JCTC-12W | 95 | 12 | 1.5 | 80 | 5.5 | 3/8"6*2 | 900*350*700 | 70 |
JCTC-24W | 95 | 24 | 2.2 | 315 | 4 | 3/8"8*2 | 900*350*700 | 100 |
JCTC-6W-2D | 95 | 6*2 | 0.37*2 | 45*2 | 3 | 3/8"2*2 | 900*600*700 | 110 |
JCTC-9W-2D | 95 | 9*2 | 0.75*2 | 56*2 | 3 | 3/8"4*2 | 900*600*700 | 115 |
JCTH-9W | 160 | 9 | 0.75 | 165 | 3 | Water | Indirect Cooling | 3/8"4*2 | 900*350*700 | 90 |
JCTH-12W | 160 | 12 | 1.5 | 235 | 3.5 | 3/8"4*2 | 900*350*700 | 115 |
JCTH-24W | 160 | 24 | 2.2 | 315 | 4 | 3/8"4*2 | 900*350*700 | 130 |
What is Specifications of mould temperature controller?
Size: according to clients' requirement Buyer's logos and designs acceptable.
Our Extrusion blow molding machine and other blow molding machine can promise high quality of bottle and enjoy your big quantity requirement.
Taizhou Meihao Machinery Manufacturing Co., Ltd. is located in the famous "mould town" - Huangyan, Zhejiang, China. Huangyan enjoys favorable environment of advanced industry, feasible transportation and excellent molding manufacturing. In the past 10 years, we have been committed to professional peripheral equipment manufacturing and now we have become one of the well-known enterprises which integrate the development, design, manufacture, sale and after-sales service together in China. We have passed ISO9001: 2000 international quality standard certification.
LED by the senior engineering staff members who are in line with international standards and use CAD technology, we have manufactured "Jiacheng" Brand series products, for example, plastic granulators, mould temperature controllers, mould temperature controllers, industrial chillers, plastic hopper dryers, plastic color mixers, automatic vacuum loaders, dehumidifiers and central feeding systems. Due to efficiency, energy saving, convenience and environmentally friendly advantage, our products account for a significant proportion in domestic and international markets, enjoying a good social reputation.
Our future is bright and unlimited. We have full confidence to be your good choice and we are looking forward to your support!
