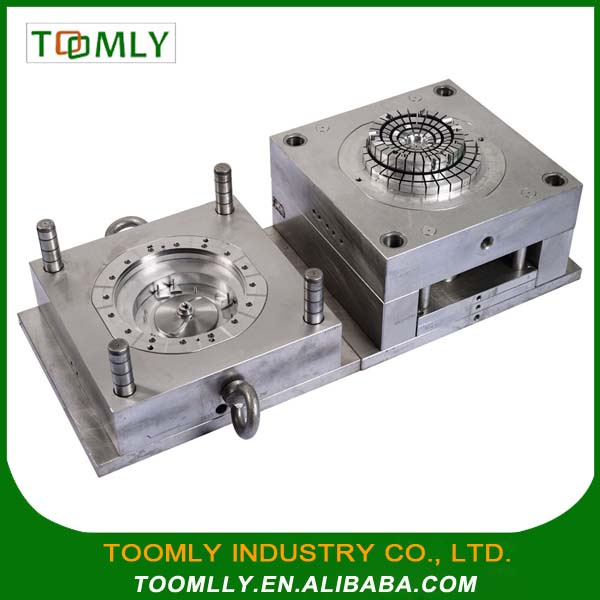

Molding Factory Manufacture Plastic Injection Mold Orders for Customer's Company
Product Description
Features:
1. Precision high quality injection mould
2. Quick leadtime in 3-8 weeks
3. Life time up to 1,000,000 shots
4. Full protection wooden cartons for packing
Specifications:
Mould Base: | LKM / HASCO /DME, etc. |
| Mould Core: | 718, 718H,S136, NAK80, P20 , H13, YK30, etc |
| Product Material: | ABS, PC, PC+ABS, PP, PS, PE, PU, PA6, PMMA, POM, etc |
| Treatment: | Polish / Semi-matt/matt |
| Cavity: | Single / Multi |
| Runner: | Hot / Cold |
| Design Software: | IGES/PROE / SOLIDWORKS / CAD / CAXA, etc. |
| Mould Life: | according to client's specific requirment |
| Mould Installation type: | Half fixed / Mobile / Fixed |
| Precision Machining: | CNC / Cutting / Carved / EDM/Milling/Threading/Drilling, etc. |
| Arrangement type: | I-section / Straight Body Mould |
| Package: | Inner is PP bag, outer is wooden case |
| Delivery Time : | 3--4 weeks and can deal with emergency cases. |
What steel do we use for your molds?
Steel Grade |
Characteristics |
Applications |
S136 |
High purity, high polishing to mirror finish, with good corrosion resistance and low distortion after heat treatment. |
High quality mould insets with mirror surface finish, best suitable for plastic molding of PVC, PP, PC, machine parts for food processing machinery. |
NAK80 |
High hardness, good polishing, excellent photo etching, good EDM machining and wielding. |
Moulds require high wear resistance and excellent surface finishing. |
718H |
High purity and polishing |
High quality mould inserts, best suitable for molding of PS, PE, PP, ABS. |
2316 |
High corrosion resistance |
High corrosion resistance moulds with good polishing |
P20 |
Good polishing |
Suitable for moulds require good surface polishing |
2312 |
Excellent machinability |
Plastic mould for general use and core parts |
How do we work together?
1.Inquiry | Your inquiries will be studied seriously with materials, size, and functions by 3D files, real samples, drawings, ideas. |
| ↓ |
| 2.Quote | Cost will be evaluated based on detailed demands about the molds/moulds, mockup and design fee if needed. |
| ↓ |
| 3.Negotiation | the quality, price, material, delivery time, payment item, ect. |
| ↓ |
| 3.Place an order | After price and details confirmed, place the order, and make the deposit. |
| ↓ |
| 4.R&D | we start R&D. Make the files or improve the design if you needed for your approval. |
| ↓ |
| 5.Mockup | After confirmed final 3D files, we will make mockup for your approval to make sure everthing is right. |
| ↓ |
| 4.Moulding/molding | According to confirmed mockup, move forward to production |
| ↓ |
| 5. T1 shoot | We will review the first samples and make necessary adjustment. |
| ↓ |
| 6. T2,T3 shoot | We adjust the molds/moulds till meet customers satisfactory. |
| ↓ |
| 7.Production | We will make plastic injection as customer's order. |
| ↓ |
| 8. Delivery | Delivery goods or the molds/moulds by sea or by air, according customers requirement |
Packaging & Shipping
Each part to a plastic bag, then into wooden carton to full protected.
Company Information
We are here with more than 10 years experiences in moulding, injection, for automotive/LED-T, Big Molds for Air condition/Medical devices, Mold for Household, Home Appliances/Industrial Pipe, Mold for electronic products, Office appliance, etc.
Our Services
Why us?
We strongly believe that quality is the foundation of a long lasting enterprise, but also emphasize efficiency, reliability, and competitive pricing without sacrificing such quality.
How can we do better?
Convenient in-house facilities allow us to deliver 100,000pcs output per month with strong capability to deal with urgent
and special cases for the immediate needs of customers.
What do we do more?
Not only satisfied products provided, but also high efficient service, ensure every order handling a very happy experience.
Where do we focus on?
Besides high quality supplied, we also focus on R&D, we will keep launching new skills and solutions to enhance competition abilities.
When are e-best available?
We are here around 24hx7days, contact us at:
FAQ
Customer Questions & Answers
Q1. I have an idea for a new product, but don't know if it can be worked out. Can you help?
A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your ideas or design and we can advise on materials, tooling and likely set-up costs.
Q2. My components have already been developed on Proe. Can you use the drawings?
A. Yes! DWG, DXF, IGES, Solidworks files can all be used for quotation.
Q3. Can I test my idea/component before committing to mould tool manufacture?
A. Yes, before start molding, we will be mockup for your evaluation first.
Q4. I have a sample in hand, can you make a mould for it?
A. Yes! Send us the sample, we can use it for quotation and finish the 3D file for you, and make the mould
Q5. What type of plastic is best for my design or a component?
A. Materials selection depends on the application of your design and the environment. We will be happy to discuss the alternatives and suggest the best material by our rich experiences in the field.
Q.6 What type of mould tool do I need?
A. Mould tools can be either single cavity (one part at a shot) or multi-cavities (2,4, 8 or 16 parts at a shot). Single cavity tools are generally used for big items or with small quantities items, up to 10,000 parts per year while multi-cavities tools are for smaller items or larger quantities items. We take your projected annual requirements into consideration and recommend which would be best for you.
Q7. I want change logo for different orders injected?
A. Yes, we will exchange mould inserts for you, and make inserts with different logos, you can use specific insert for different orders.
Q8. I've decided to go ahead with my project. How long will it take to get my parts?
A. It is about 3-8 weeks, depends on the complexity of the mould. Any emergency cases are able to deal with.
Q9. Shall we deliver the mould to our country?
A. Yes, we will pack with PP material inside and wooden cartons outside to fully protect the mould, and deliver by sea or air, depends on customer's time emergency.
Q10. Would you do injection for us in China?
A. We can inject for you here and export FCL or LCL to your destination, and we will keep you model in good shape while not manufacturing.
