Product Description

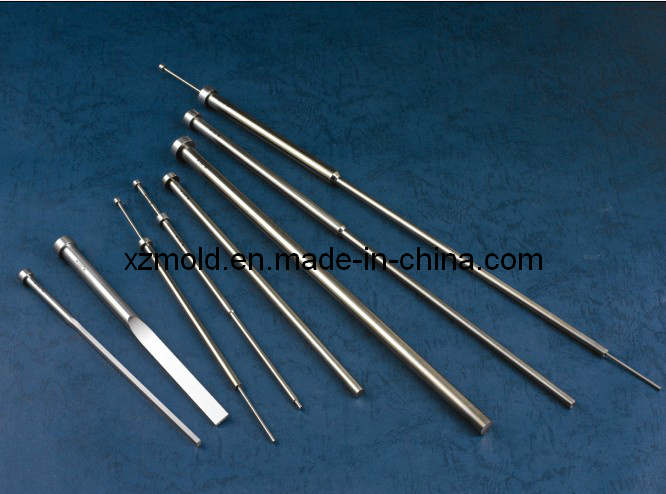

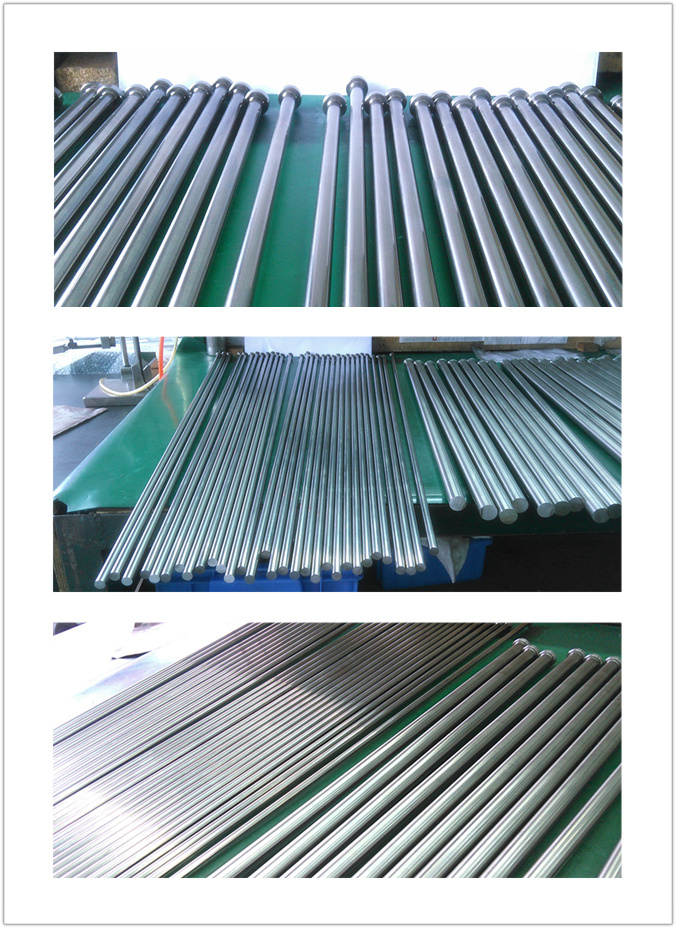

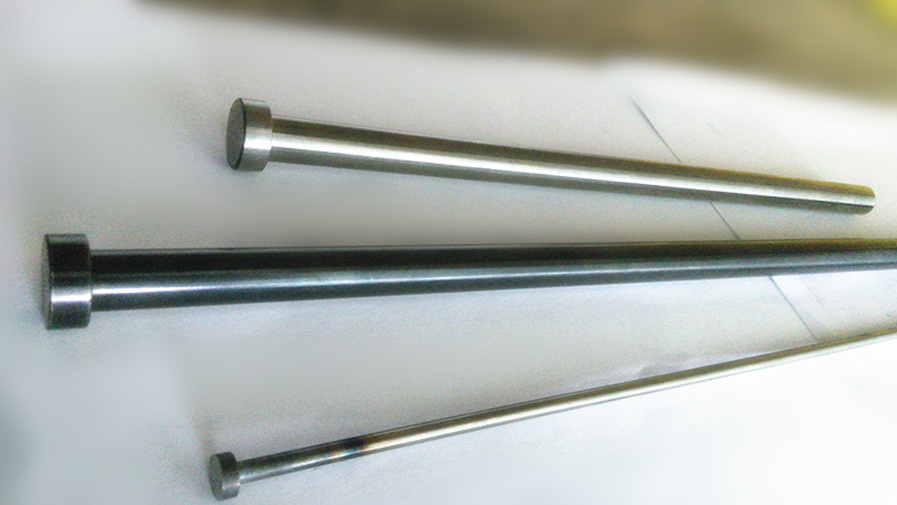

Product's name: Straight ejector pin
Raw Matarial: SKD61,SKH51, 1.2344, H13
Heatment: Nitrided
Hardness: Inner HRC41-44
Surface HV900-1100
Packing: 1)Double layers plastic bag package
2)Sponge
3)Thick cartons box
4) in wooden case
Grinding Precision: 0.001mm
EDM Precision: 0.002mm
Surface Roughness: Ra 0.025
Plastic Mold Part: For Plastic Mold
Machine: CNC, EDM, Wire-EDM
EDM Clearance Angle: R 0.03mm
Export Markets: Global
Compatible with DME, DME-EOC, HASCO, CUMSA, STRACK, RABOURDIN, PCS, PROGRESSIVE, MISUMI, PUNCN.
1. Factory information:
| Company:Dong guan city Xiang zhen mold parts Co.,Ltd |
| Web: www.xzmold.com |
| Location:Dong guan,China (close to Hong Kong,Shen Zhen,Guang Zhou) |
| Software:PDF,Auto-CAD,Pro-E,UG etc are available |
| Employee:100-200 |
| Manufacture in:High precision mold parts/Hot-runner and related parts/CNC/EDM parts/Grinding parts/Customized mold parts |
2. Equipment and Inspection measurement:
| Description | Machine type name | Origin from and brand | Quantity | Precision level(mm) |
| Processing equipment | Automatic forging machine | China | 4 | |
| Gun drill | China | 2 | ±0.01 |
| CNC Center | Japan(OKUMA) | 4 | ±0.005 |
| CNC grinder | Taiwan | 1 | ±0.01 |
| WEDM | Japan(Sodick) | 2 | ±0.001 |
| WEDM-HS | China | 2 | ±0.01 |
| EDM | Taiwan | 2 | ±0.005 |
| Centerless grinder | Taiwan | 6 | ±0.001 |
| Surface grinder | Taiwan | 6 | ±0.002 |
| Punch grinder | Taiwan | 5 | ±0.001 |
| ID Grinder | Taiwan | 2 | ±0.0025 |
| Nitriding furnace | China | 1 | |
| Internal and exterinal grinder | Taiwan | 1 | ±0.01 |
| Depth drill | Taiwan | 1 | ±0.01 |
| Inspection equipment | Micro-Hite | Japan(Mitutoyo) | 1 | ±0.01 |
| 2.5 D Projector | Taiwan | 1 | ±0.01 |
| 3 D Projector | Germany(Zeiss) | 1 | ±0.01 |
| Projector | Taiwan | 1 | ±0.01 |
| Rockwell hardness tester | Taiwan | 1 | |
| Vickers hardness tester | Taiwan | 1 | |
3. Precision parts information:
| Accuracy for EDM | Clearance angle | R0.03mm |
| | Surface Roughness | Ra0.05mm |
| Accuracy for Grinding | Clearance angle | R0.02mm |
| | Shape tolerence | ±0.001mm |
| | Accuracy for surface | Ra0.05mm |
| | Minimum thickness | 0.1mm |
| | Minimum groove | Wide 0.01mm;Depth 0.25mm |
| Material | Japan:SKD61/SKD11/SKH51/SUJ2 | |
| | Germany:1.2343/1.2344 or as Customer's request. |
| Size | Standard as DME/Hasco/Punch etc or Customized |
| MOQ | 1Pcs/Type | |
| Price | EXW/FOB/CNF/CIF | |
| Payment | T/T or %advance-%against shippment |
4. Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response (7/7)
Warranty: Depend on product type.
Standard parts: 500K---2M cycles
5. How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first
6. Contact Info:
Sales Manager:Nancy
Tel: +86 769-83516188 ext 8831
Fax: +86 769-83510866/83510966
Dongguan City Xiangzhen Mold Parts Co., Ltd. is a professional manufacturer of standard components and plastic molds.

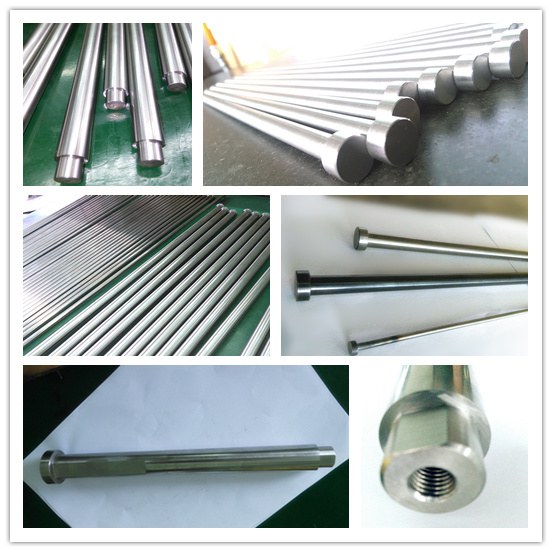

The ranges of our products include standard (HASCO, DME and JIS) and customized high-precision ejector pins, ejector sleeves, shoulder ejector pins, blade ejector pins, core pins, guide posts, bushings, punching parts, fixtures and other parts.
We not only produce these standard components, but also help solve problems in the production of plastic molds and die casting parts.
Our factory is equipped with Taiwanese CNC working centers, NC gun drilling machines, centerless grinders, cylindrical grinding machines, internal grinding and honing machines, high-speed precision desk-top lathes and surface grinding machines.
We follow the spirit of "teamwork" and establish close and cooperative partnership with our customers. The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation!
We have significantly essential support from local customers that are leading mould manufacturers and reputable foreign agents in mould industry.
