HPM series high-pressure foaming machine is zhangjiagang strength and industrious Machinery Co. Ltd following the international latest high technology and according to word wide the PU industry that independent innovation high technology products .The main parts are import from foreign country, equipment technical and safely performance are reached the word wide advanced capacity. The equipment is widely used automobile industry, insulation industry, air conditioning industry, electric appliance industry and furniture industry and so on. Also, expanding the application field .
HPM high -pressure foaming principle
Both Polyol and Isocyanate are stored separately in two tank, and used two rotary axial metering pumps to take material to mixing head, two components injection to a small mixing room at high pressure and flow rate when mixing head started in the hydraulic control, and collide with each other instantly, pass moving transformation that reached to mixing and flow to mold control, after pouring output time that mixing head piston rod forward, all material are pushed to mixing chamber and mixing chamber is cleaned by piston rod, don't left any material. Component passed beside of piston rod return to material tank. If it don't inject in a long time , low-pressure recalculation switchover unit but two-control component into low recalculation.
Because of equipment' exact calculation, has a small loss and needn't clean and it will be good at environment-protect and reduce the material costs. In the all areas that is to be more and more widely used.

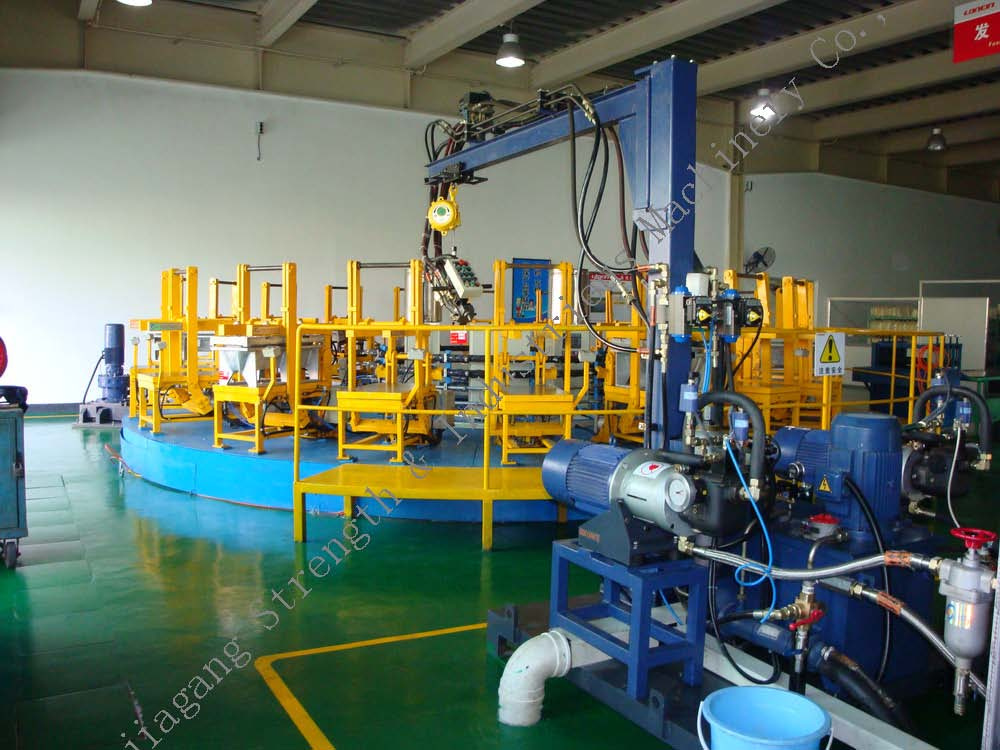

RT9000/20 the motorcycle seat cushion PU foaming line
That is composed of 1 set HPM20/10 high pressure foaming machine, 1 set diameter 9 meters rotary table foaming line by including installed on the rotary table 20 sets of MP5085 mold carriers, the mold temperature controller and so on.
This production line uses the production pattern that the automatic intermittent type or the continuous working, the rotary table rotational speed by the frequency converter, automatically opening\ closing the mold carrier, automatic identify mold number, by manual control or automaticcontrol mixing-head to pouring, various equipment components have provided the advanced electricity control system, may separable step debugging, when production it is operated on-line.
| NO. | Item | Parameter |
| 1 | Production tact | 30~60sec |
| 2 | Time of per circle for mold conveying on the line | 6~12min |
| 3 | Rotary table height | 425mm |
| 4 | Production ways | Automatic intermittent type stopped pouring; or the continuous working, manual following pouring |
| 5 | Main motor power | 5.5 KW |
| 6 | Heating power of the mold temperature controller | 30 KW |
| 7 | The compressed air supply required | The pneumatic cylinder: 0.8Mpa, dry, oil mist; flow capacity: 1000NL/min; The gasbag: 0.45Mpa, dry, oil-less; flow capacity: 1000NL/min |
| 8 | Power supply required | 3×380V/50HZ±10% |
| 9 | Floor space | ~11000*11000mm |
Zhangjiagang Strength and Industrious Machinery Co., Ltd. (ZSIM) is a specialist which provides complete equipment and project key-scheme for customers in polyurethane foaming field. ZSIM obtains to TUV ISO9001 Quality System Certification and CE Certification.
All the time, we focus on customers' requests and regard "Marketing, Technical Development and Service" as our main responsibility. With the latest technology and advanced machines, our products are manufactured by a professional engineer team. We provide equipment featuring high-tech performance, the best combination and low price. What we are doing now is to maximize customer satisfaction.
ZSIM can provide various project key-scheme, equipment and service for customers who always have special request in automobile industry, insulation industry, air conditioning industry, electric appliance industry and furniture industry. Also, we can provide environment-protecting foaming machines and production lines using Cyclo-pentane and other materials.
The business policy of ZSIM is "humanism-management and famous-brand strategy". We always carry out the principle of "practice and innovation, excellent service for customers", by focusing on customers' requests and improving our work with persistence.
Technical Service:
Providing Whole Technical Scheme for Customers' Projects
According to customers' requests, we provide whole technical scheme for their projects, including choice of processing techniques, equipment, as well as the choice of PU material and its quality control advice.
Designing for Customers' Requests
ZSIM has a team of engineers and many members of them were trained by European company and are experts of PU foaming industry. So we surely can bring perfect scheme and design the updated equipment for customers.
Training
We provide training for customers about the content of machine operation, maintaining and relevant technology of PUR processing by learning and practicing.
Spare Parts Supply
The storage of our spare parts is perennial and we can provide any parts of PU equipment produced by ZSIM. We also provide universal parts of worldwide high pressure foaming machines, such as mixing head, metering pump, pressure switch, pipe and hose and fittings.
