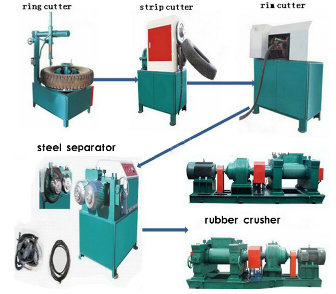

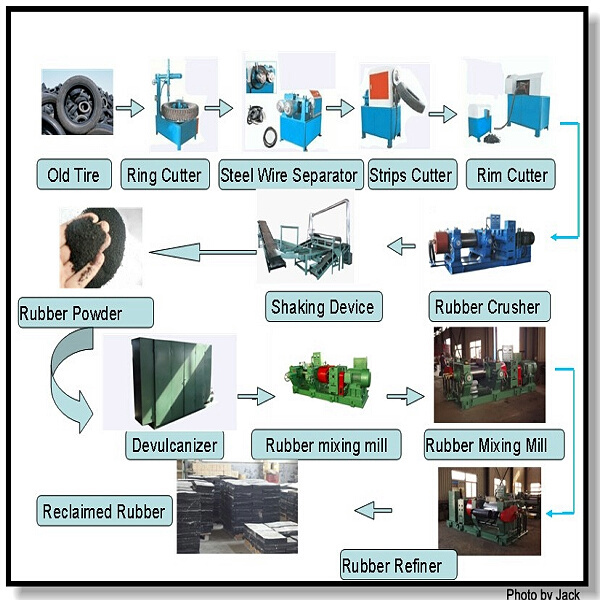

1-1.Ring cutter
Item | Specification |
motor power | 5.5 |
Speed of main screw | 46.8 r/min |
MAX Diameter of tyre | 1200mm |
Dimension | 1100*900*1700mm |
Purpose :To cut the steel ring from the tyre |
1-2.Loop machine
Item | Specification |
Motor power | 15 KW |
Linear speed of front roller | 15.5 m/min |
Ratio of speed | 1.1 |
Dimension | 1520*1150*12101mm |
Purpose:To Separate the steel ring from the rubber after 1 step. |
1-3.strip cutter
Item | Parameter |
Motor Power | 5.5kw |
Disc Diameter | 380mm |
Rotate Speed | 18.4r/min |
Dimension | 1290*870*1550 |
Purpose: To cut the old tyre intostrip |
1-4.block cutter
Item | Specification |
motor power | 11kw |
Speed of main screw | 420 r/min |
Out diameter of cutter | 200mm |
Dimension | 1130*830*1100 |
Purpose: To Cut the strip into block |
1-5.tyre crusher
Item | XKP-560 |
Diameter of front roll(mm) | 560 (smooth) |
Diameter of back roll(mm) | 510 (groove) |
Working length(mm) | 800 |
Linear speed of front roll(m/min) | 25.56 |
Ratio | 1:1.30 |
MAX gap(mm) | 15 |
capacity(kg/h) | 600-800 |
Motor power(kw) | 75 |
Dimension (l*w*h)(mm) | 5064*2284*1978 |
Weight(kg) | 18000 |
Purpose:
Crush the rubber block into rubber powder and granule.

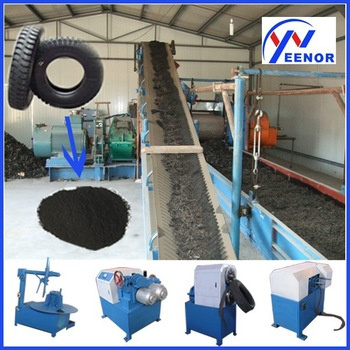

1-6.Big conveyor equipment
motor power: 2.2kw
The length of conveyor: 8000mm
The width of belt: 550mm
Speed: 40m/min
To conveyor the rubber block into crusher.
1-7.Small conveyor equipment
Motor power:1.1kw
The length of conveyor: 3m
The width of belt: 400mm
Speed: 30m/min
1-8.Big Magnet separator
motor power: 1.1kw
The width of belt: 400mm
Speed: 30m/min
Purpose: separate the steel small block from the rubber powder.
1-9.Small magnetic separator
motor power: 1.1kw
The width of belt: 400mm
Speed: 30m/min
1-10.big Shaking screen
working length: 6000mm
working width: 1000mm
motor power: 7.5kw
size: 7800*1250*600mm
Purpose:
(1) separate the rubber granule and powder, Resend the granule to crusher, and send powder to Magnet separator through small conveyor belt.
(2) separate the textile cord from rubber powder
1-11.small Shaking screen
working length: 3000mm
working width: 1500mm
motor power: 3kw
1-12.fiber separator
The machine adopts airflow separation principal, is able to efficiently separate minor fiber from the rubber granules.
Model | XFJ-1100 |
capacity | 200-500kg/h |
Diameter of impeller | 1100mm |
Number of lamina | 8 pcs |
Rotate speed of main axis | 400r/min |
Motor power | 5.5 kw |
Dimension | 1.5*1.5*6.5m(L*W*H) |
Rubber crushing machine
fiber separator
