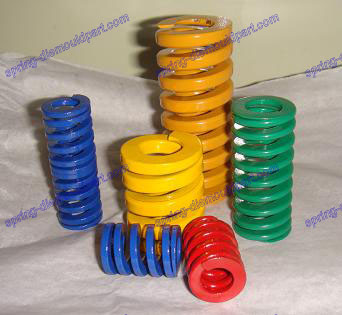

Mould Die Spring (2.5*3*100)

Mould Die Spring (2.5*3*100)
Price: NegotiableT
Trade Terms: CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Paypal
1)Die mould spring made as per ISO10243 and JIS B5012standard.
Size: Outside diameter: 10 - 100mm

2)Coulor: Green, blue, red, yellow, brown accoding the axial load from light to heavy

This spring is rectangular section wire. 50crva, 50crsi, 55crsi
Hardness after hardened HRC44-46

3)widely used in the punching moulds, metal die-casting moulds, plastic injection moulds and mechanical equipment with rigid structure.
16(OUTER DIAMETER)x 25(length)
  32
  38
  44
  51
  64
  76
  89
  102
  305

20x 25
  32
  38
  44
  51
  64
  76
  89
  102
  115
  125
  139
  152
  305

25 x 25
  32
  38
  44
  51
  64
  76
  89
  102
  115
  125
  139
  152
  178
  203
  252
  305

32 x 38
  44
  51
  64
  76
  89
  102
  115
  125
  139
  152
  178
  203
  252
  305

40 x 51
  64
  76
  89
  102
  115
  125
  139
  152
  178
  203
  252
  305

50 x 64
  76
  89
  102
  115
  125
  139
  152
  178
  203
  252
  305

63 x 76
  89
  102
  115
  125
  139
  152
  178
  203
  252
  305
Prod Model: 2.5*3*100
Markets: North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe
Usage: Auto
Shape: Cylinder
Material: Steel
Load Type: Compression
Spring Die Mould Part Industry Company Limited., found in 1997.It located in the downtown of Ningbo.It is about 3 kms to Beilun port.It takes just 3 hours drive to Shanghai through Hangzhou Bay crossing Bridge.

Spring Die Mould Part Company is the membership of Zhejiang Machinery association.That specialized in producing and selling mould accessories and various hardwares.There are 105 workers in our place, include 8 technicians.Our products such as fastener, springs ISO10243&JIS standard, HSS punch, guide post, some stamping parts, hand tools and CNC machines parts.

We have full set of testing equipments and heat-treatment furnace, that can control the quality meet or over customers' requirement.Moreover, we have our close cooperating material suppliers, own factories and logistics team.Majority have more than 10 years' experience in this field.So price and delivery are our strong points always.Our company passed certificate ISO9001-2000 in 2003.For high-precision parts, we can control the tolerance within 0.0015mm.After over 10 years work, Our products are best selling to America, Italy, Spain, India, Turkey and Egypt markets.

In the future, we will get everyone's effort to work with customers continuously, develop with customers together base on the principle of equality and mutual benefit.Pls don't hesitate to contact us for further information.
