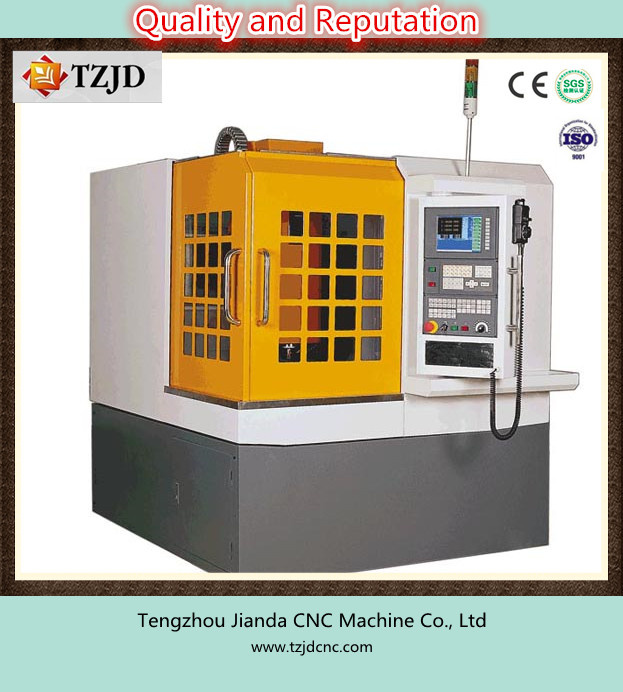

Mould Engraver Woodworking CNC Router Machine

Mould Engraver Woodworking CNC Router Machine
Price: US $ 12000-22000set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
Mould Engraver Woodworking CNC Router machine

Applicable materials
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,
PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.

Product Features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: Drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power. Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.

DescriptionParameter
TZJD-6060MB
Working Area (X*Y*Zmm)600mm*600mm*300mm
Max Engraving Speed 6000mm/min
FrameCast Steel
Spindle power(KW)1.5 KW/2.2KW/3KW/4.5KW/5.5KW/6KW/7KW
Max. Power Consumption(Without spindle)1.2KW
Spindle Speed     6000-24000rpm
Resolution0.005mm
Repeatability0.01mm
VoltageAC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motorPanasonic Servo motor
Working Dictate        G Code*.u00*.mmg*.plt
Operating systemLNC control system
Software environmentWindows98/2000/xp/7/8
InterfaceUSB
Flash memory128M(U Disk)
Software CompatabilityType3,,Ucancam,Artcam Software)
Diamerer of cutter3.175, 6mm, 12.7mm, 2mm,1mm, etc.
Running EnvironemtTemperature: 0-45
Relative humidity: 30%~75%
Machine necessaryDust cover system,
control system integration shell,
spindle cover,
Japan Panasonic/Yaskawa Servo motor,
Auto-oiling system,
Tool-sensor,
water tank system,
water-cooled system.

Prod Model: TZJD-6060MB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area: 600mm*600mm*300mm
Machine Color: Grey, Blue, White, Also as Demands
Spindle: Permenent Torque Spindle
Spindle Power: 5.5kw, 6kw, 7kw
Machine Structure: Germany Imported Ball Screw
Working Table: Bakelite Table Combined Aluminum T-Slot Extrusion
Command Languages: G Code
Software: Type3 and Artcam English Version
Control System: Taiwan Lnc/Syntec
Motor Driver: Japan Panasonic/Yaskawa Servo Motor
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Manual
Controlling Mode: CNC
Certification: BV
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.

The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

Tengzhou Jianda CNC Machine Co., Ltd  Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.



Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.



Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
