Sound in quality linear ball bearing retainer in different types and specifications for your choice, also called ball bearing cage, ball bearing bushing, ball bearing bush, ball retainer & Die parts & die fittings for Press die punch.
Our customer can avail top class ball bearing cages from us. These cages act as a separator for positioning the balls at equal distances around the bearing raceways. Known for their corrosion resistance and durability, our ball bearing cages are ideal for applications that demand:
High-speed rotation /Low vibration/ and Low noise
Some of these applications are:
Transmissions Electric motors & generators
Pumps Compressors
Gear boxes Drive elevators
Textile machinery Printing machinery Two wheeler axles
Product specification
Max. Loading capacity: 30N/mm2
Max. Sliding speed: 6m/s
Friction coefficient: 0.01~0.08
Shrink fit: 0.01~0.002mm
Material: Plastic (resin ), aluminum alloy(bushing), copper(bushing), steel(ball).
Hardness: 62~67HRC, spherical degree is 0.25UM.
Features
1. Low friction coefficient
2. Able to move in both radial and axial directions
3. High precision, working in high speed
4. Different specs, also can manufacture upon request
5. It can decrease fatigue damage causing by rolling contact and side damage on machine parts and prolong service life.
6. Sound quality steel ball retainer with excellent performance of hardness, glossiness, buildiness, abrasion resistance, long service-life.

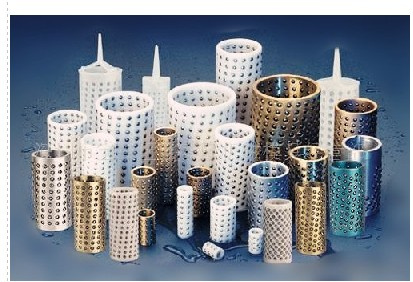

The bushing has 3 types, which is made of steel( it can made of other material, just like ceramic, plastic etc. )
NO 1: Plastic bushing (blue, white colour, etc)
NO 2: Aluminum bushing(white, cupreous colour);
NO 3: Copper bushing(copper-colored).
Also each type with the Standard Kind, the Compact Kind and the Ultra-compact Kind. The compact Kind has more steel balls than the Standard type with the same specifications, it is more reliable when comparing the service-life and abrasive resistance etc. While the Ultra-compact Kind has the most steel balls.
Also we have many other kinds of precision mould parts available for export. More than 6 years manufacturer in this line can provide you the best mould parts you want!
Advantage
1)We provide diffirent mould accessories, you can choose by diffirent prices, different type.
2)Abundant profession experiences and more than 6 years manufacturing history.
3)Excellent service and quality to our customers, and large groups of excellent technical specialists provide a total solution to your offer...
Thanks for you reviewing the information. More details, pls contact me(Ruby). I'm glad to give you the best service.
Shenzhen Civada Precision Mould Accessories Co. Ltd. is a professional manufacturer, which is located in Shenzhen City, Guangdong Province, China. We specialize in producing various kinds of die fittings. Our main products majorly include various kinds of Punch Dies and Punch Dies which are in accordance with British, American and German standards. In addition, we choose the best materials made in Europe and America. As a result, the quality of our product is very stable. We have distributed our products to the whole world, such as the USA, China, Japan, Europe and Southeast Asia.
We strive to continuously improve quality, strengthen technology, and enhance service to satisfy customers' demands. Besides, we have transferred from Swiss top technologies about precision manufacturing and German inspecting instruments to produce and test mold fittings automatically - 24 hours a day. We focus on precision mold fittings, such as Ejector Pin, Punch, Located Block, and Die Spring. For inventory, we have a complete stock. In addition, we have designed and manufactured special Punch Die. You are welcome to contact us.
