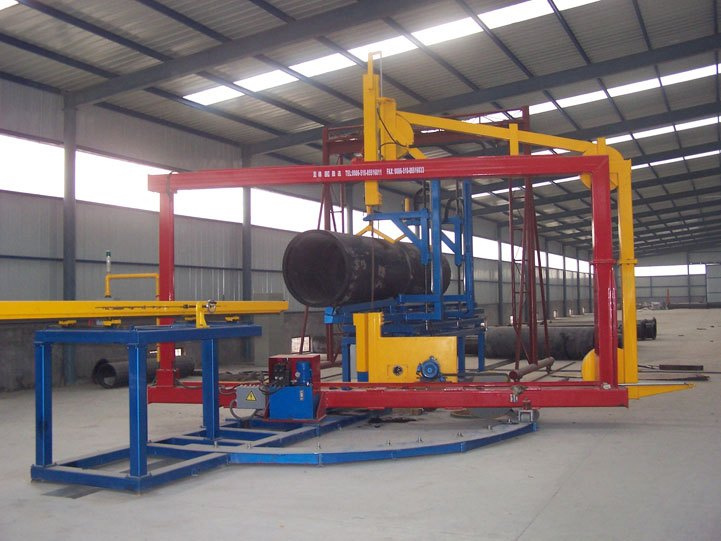

Application and features
Suitable for cutting pipes according to specified angle and dimension while making an elbow, tee or cross, which lowest the material waste and improve the welding efficiency
Cutting angle 0~67.5° Accurate angle location
Applied to solid pipes or structured wall pipes made of thermoplastic such as PE and PP, and also other pipe and fittings made of non-metal materials
A special designed integrality of body and swivel table makes them extremely stable
Self inspection and stop of the machine in case of saw blade breaks enables to guarantee operator's safety
Reliability, lower noisy, easy to handle
Complies with 98/37 and 73/23 EEC standards
| Working ranges | ≤1200mm | ≤1600mm |
| Cutting angle | 0~67.5° | 0~67.5° |
| Cutting angle error | ≤1° | ≤1° |
| Line speed | 0~250 m/min | 0~250 m/min |
| Feed speed | adjustable | adjustable |
| Working voltage | 380V 50Hz | 380V 50Hz |
| Total power | 5.85KW | 5.85KW |
| Weight | 7000Kg | 7000Kg |
WUXI SHENGDA PLASTIC PIPES WELDING MACHINE Co., Ltd. reorganized from WUXI BADA PLASTIC PIPES WELDING MACHINE FACTORY, is the earliest enterprise in China specializing in research, development and production of thermoplastic pipe connection equipment, and also one of the drafters of national standards of butt fusion welding machines.
After more than a decade of development, we have developed various series plastic pipe installing equipment for pipes up to 1600mm. Those equipment include field butt fusion machine, workshop fitting fusion machine, band saw, and special assistant tools for PE pipe construction, etc. We also hold patent right of part of relevant techniques. Our products are widely used by domestic and international pipe and fitting manufactory, gas and water distribution companies, construction units, and so on. Years of manufacture have experienced us in technical development and brought up an excellent professional team in technical development, business management, as well as production and marketing, and we have established friendly cooperation relationship with domestic scientific research institution, pipe and fitting manufactory, PE pipe users, construction units, which keep us always ahead in product development, technique reform and products upgrade in domestic.
We succeeded in passing assessment of ISO9001: 2001 in 2003 and CE attestation in 2006. These have powerfully guaranteed the high product quality and continuous improvement of products.
Our everlasting pursuit is to produce excellent plastic pipe fusion equipment and build up the brand of "Bada".
