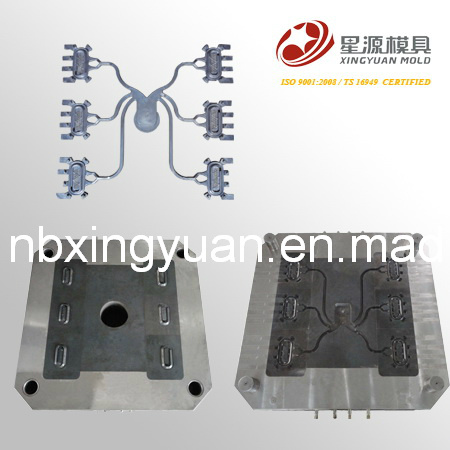

High pressure injection mould
Customer: A American die caster
General info: A one-cavity die, moulding in 1200T machine.
Cavity inserts to be DIEVAR with 46-48Rcor equivalent.
Mold base to be 4140 with 28-32RC or equivalent.
All ejectors or core pins to be Punch manufactured or equivalent.
All bearing block, slide guide block to be P20 pre-harden with 18-22RC.
Mould construction lead-time: 8 weeks.
Packaging: Iron, Wooden, or Customized.
Xingyuan mold is a professional die casting factory, who specilized in mould design and manufacturing, die casting production and finish machining. We export our moulds and castings to Italy, Belgium, danmark, Germany, Japan, USA, Brazil, etc.
We have experience of mould and casting set-service for many renowned companies, like dfm, bosch, Volkswagen, fhi, subaru, etc.
Engineering software:
PRO/e, ug, solidworks, moldflow(EDM), jscast( mold flow analysis )
Standard workshop covers an area of 7500 m2, which equiped with facilities:
CNC machining centers;
Die spotting machine;
3-d coordirating instrument;
Wire-cut EDM;
Casting machine(200t-800t);
Various milling machines, lathes, grinders, radial drill, welding equipment to support the production operations in manufacturing work.
To find a reliable factory in China who could provide you most cost efficiency and best quality, pls. Choose xingyuan as your partner.
