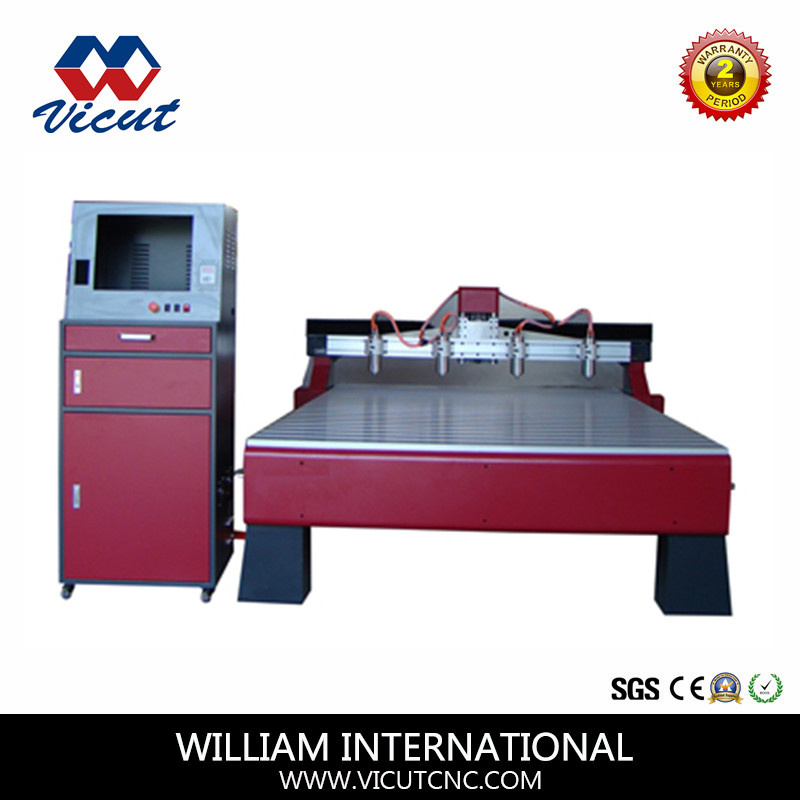

Multi-head CNC Wood Router (4 Heads Series)
This series are widely used in Antique furniture with relief carving, wood carving, furniture processing, instruments making, 3D light box making, Aluminum composite panel, funding mould decorative doors and windows processing etc. We have many choices for different size according to your needs.
Machine Details Show:
1. Base Frame: The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. Water Cooling Spindle: High accuracy water cooling spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc. We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Series of tools are available, for example, diameter 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Enhanced Carrying Pole: The spindles are mounted on carrying pole which is made of thick aluminum, on which we put also reinforcing plate, the structure offers better impact resistance and eliminate the shaking to the most.
4. Ball Screw and gear rack: Use TBI ball screw 25mm diameter and high accuracy gear rack. The combination for ball screw and gear rack makes machine working more accurate and stable.
5. Steel Band: As a solid and level foundation, we put milled thick steel band under each guide and rack.
6. Linear square guide: XYZ axis use quality PMI 25MM linear square guide with high rigidity, resist vibration and shock, with damping characteristics.
7. NC Studio Controller: PC based NC Studio Controller with friendlier human/machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control. Better anti-interference performance due to control signal adopting differential signal input/output, featured as power failure protection function, linear interpolation, circular interpolation, intelligent look-ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.
8. Stepper Motor Driver: High-power subdivided stepper motor with outstanding wearability and resistance to powerful and fast machining, it offers long-term maintenance-free solution.
9. Aluminum table: We use quality aluminum alloy and can be installed transverse or vertical to facilitate different requirements.
10. Central oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
11. Photoelectric Limit Switch: Un-touching, more sensitive and durable than traditional mechanical switch, maintenance-free for long term use.
12. Foot Pads make it easier to level the machine accurately
Optional parts:
1. PVC on Aluminum table: Black 7mm PVC on top of aluminum profile table, protect the table from cutting scratching.
2. Servo Motor: AC Panasonic Servo motor for more smooth motion and triple working speed, and they require no regular maintenance.
3. Mist sprayer: It sends oil mist to machining surface, it is important for tool cooling and lubricating.
4. Dust skirts: Switchable structure with dense skirts for your convenience to load tools, easy to remove the dust completely.
5. NC Studio Handle Wheel: Better anti-jamming and allowing long distance transmission of signal, with a 3m hand wheel cable; Accurate pulse output.
Resolution: 100P/R; You can control the machine movement by adjust the hand wheel; That makes control operation more easy and convenient.
6. Tool Sensor: For Automatic tool length calibration and registration, it allows for easy and accurate "Z" zero position for single and multiple tool changes through the program, saves time & error-free.
| Model | VCT-1518W-4H | VCT-1525W-4H | VCT-1725W-4H |
| Working Size | 1500×1800×150mm
(4.9×5.9×0.49ft) | 1500×2500×150mm
(4.9×8.2×0.49ft) | 1700×2500×150mm
(5.6×8.2×0.49ft) |
| Spindle Power | 2.2KW×4PCS |
| Driver | stepper (servo motor is optional) |
| Tool Diameter | 4,6, 8, 12mm |
| Structure | Cast Square Tube |
| Transmission | XYZ high accuracy ball screw (gear rack is optional) |
| XYZ Guiding Rails | PMI square rails |
| Machining Accuracy | <0.03/300mm |
| Maxi Engraving Speed | 8000mm/m |
| Spindle Speed | 6000~24000rpm |
| Data Transmission | connect with PC directly (original NC Studio controller) |
| Format of instructions | G code or HPGL |
| Voltage | AC220V/50HZ or 380V/60Hz |
| Net Weight | 800KG | 1100KG | 1200KG |
| Packing size | 2450x2100x1900mm | 3200x2100x1900m | 3200x2250x1900mm |
