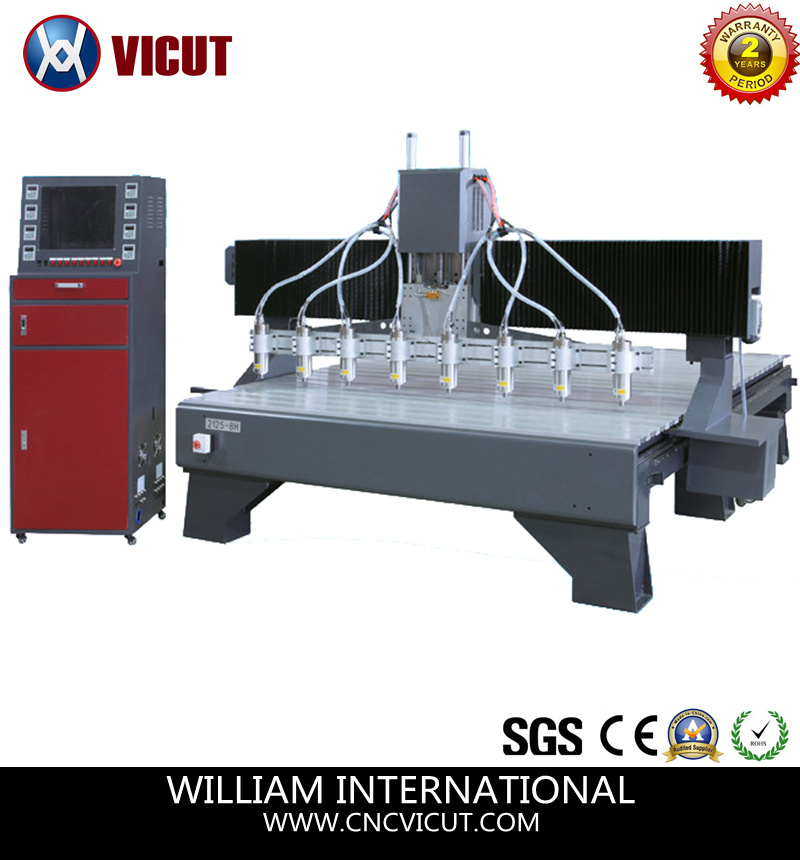

Multi-head CNC Woodworking CNC Wood Carving RouterMulti-head CNC Woodworking CNC Wood Carving Router
are perfectly used for working on large size material, antique furniture carving, wood carving, furniture processing, instruments making ,3D light box making , Aluminum composite panel ,funding mould decorative doors and windows processing etc.

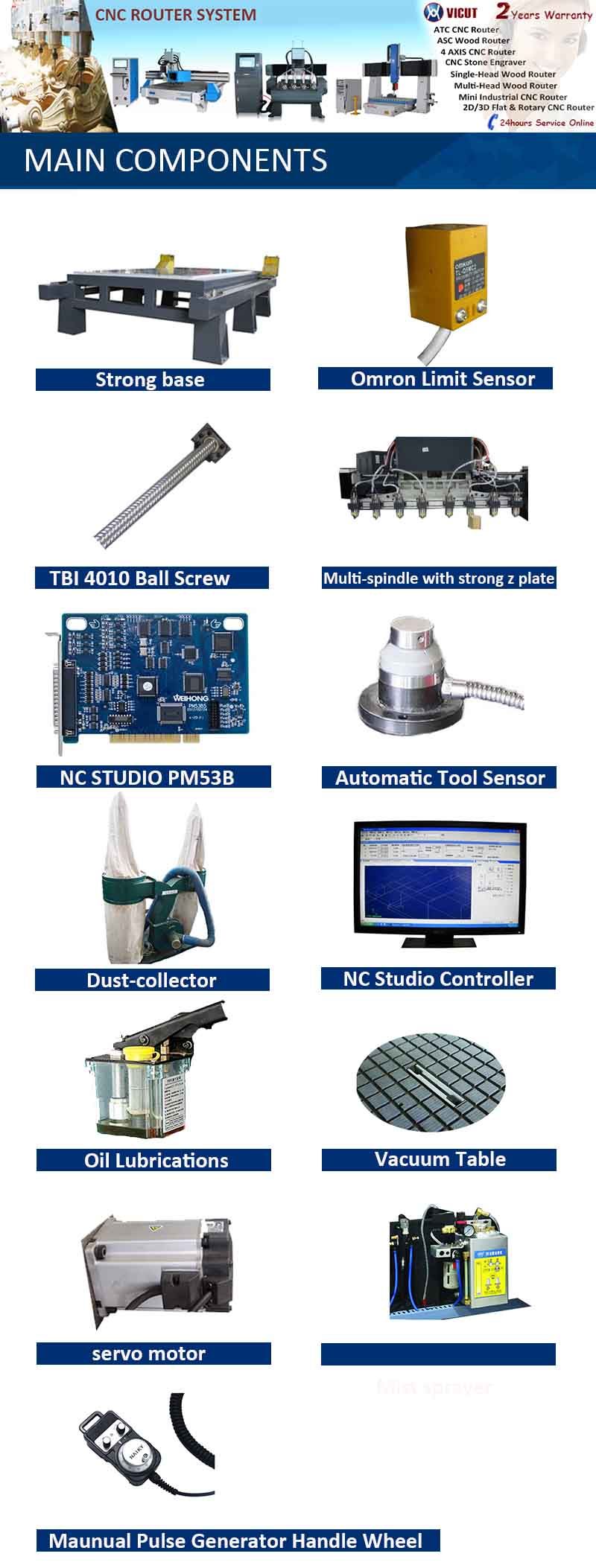

DETAIL DISCRIPTION :
1.Base Frame:The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2.Water Cooling Spindle:Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc.We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V,3Phase-50-60Hz.Series of tools are available, for example, diameter 3.175mm,4mm,6mm,8mm and 12.7mm.
3.Enhanced Carrying Pole:The spindles are mounted on carrying pole which is made of thick aluminum, on which we put also reinforcing plate, the structure offers better impact resistance and eliminate the shaking to the most.
4.Ball Screw and gear rack:Use TBI ball screw for Z axis, anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.XY axis use high accuracy gear rack.The combination for ball screw and gear rack makes machine working more accurate and stable.
5.Steel Band:As a solid and level foundation, we put milled thick steel band under each guide and rack.
6.Linear square guide:Quality 25MM linear square guide with high rigidity, resist vibration and shock, with damping characteristics.
7.NC Studio Controller:PC based NC Studio Controller with friendlier human& machine interface/HMI, fully executed with computer.It well realizes high-speed and high-precision motion control.Better anti-interference performance due to control signal adopting differential signal input& output, featured as power failure protection function, linear interpolation, circular interpolation, intelligent look-ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.
8.Electric Cabinet:All the electrical components are housed and wired in a mobile, doubled-doored electrical enclosure.This allows for easy access and service when needed.Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
9.Servo Motor:AC Panasonic Servo motor for more smooth motion and triple working speed and they require no regular maintenance.
10.Aluminum Table:We use quality aluminum alloy and can be installed transverse or vertical to facilitate different requirements.
11.Central oil Lubricator:Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
12.Photoelectric Limit Switch:Un-touching, more sensitive and durable than traditional mechanical switch, maintenance-free for long term use.
13.Foot Pads:Make it easier to level the machine accurately.
Optional parts:
1.PVC on Aluminum Table:Black 7mm PVC on top of aluminum profile table, protect the table from cutting scratching.
2.Mist Sprayer:It sends oil mist to machining surface, it is important for tool cooling and lubricating.
3.Dust skirts:Switchable structure with dense skirts for your convenience to load tools, easy to remove the dust completely.
CNC Woodworking machine/CNC Router Parameter :
Model | VCT-2530W-8H | VCT-2125W-8H | VCT-2325W-2Z-8H | VCT-2030W-2Z-8H |
| Working Size | 2500 x 3000 x 200mm
(8.2'x9.8'x0.67') | 2100 x 2500 x 200mm
(6.9'x8.2'x0.67') | 2300 x 2500 x 200mm
(7.5'x8.2'x0.67') | 2000 x 3000 x 200mm
(6.6'x9.8'x0.67') |
| Spindle Power | 2.2KW x 8PCS |
| Driver | Panasonic servo motor 1KW |
| Tool Diameter | 4,6, 8,12mm |
| Structure | Cast square tube |
| Transmission | XY axis gear rack, Z axis high accuracy TBI ball screw |
| XYZ Guiding Rails | PMI square rails |
| Machining Accuracy | <0.03/300mm |
| Maxi Engraving Speed | 15000mm/m |
| Spindle Speed | 6000-24000rpm |
| Data Transmission | Connect with PC directly (original 3 axis NC Studio controller) |
| File Format | G code or HPGL |
| Voltage | AC220V/50HZ or 380V/60Hz |
| Net Weight | 2500KG | 1800KG | 2000KG | 2200KG |
| Packing size | 4200x2280x2200mm
(21CBM) | 3500x2280x2200mm
(16CBM) | 3500x2280x2200mm
(16CBM) | 4000x2280x2200mm
(21CBM) |
