Introduction

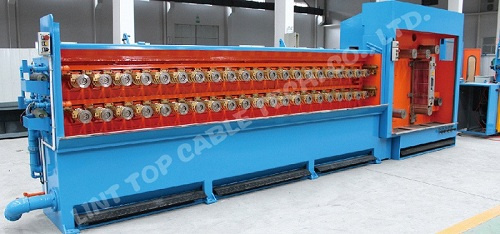

The machine is used for drawing multi-wire such as fine wire and intermediate wire. Nowadays, our multi-wire drawing machines for 2-wire, 4-wire, 8-wire, 16-wire, 32-wire etc, are widely used in cable & wire field.
Features
1. Driven by high precise helical gears, particular oil lubrication mechanism, dual motors drive.
2. The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design, in this way, the lubrication is more sufficient and it saves space, moreover, it makes operation more convenient.
3. Annealing contact copper rings, nickel tubes are made from special alloy, it can ensure a longer service life.
4. The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.
5. A special mechanism is designed to meet requirements of drawing bare copper wires, tinned copper wires and silver plated copper wires.
Technical Specification
Machine head | 2-head | 4-head | 8-head | 16-head |
Inlet diameter | 0.80mm-1.60mm | 1.60mm-2.00mm | 1.50mm-2.00mm | 1.50mm-2.00mm |
Outlet diameter | 0.15mm-0.40mm | 0.15mm-0.50mm | 0.15mm-0.50mm | 0.15mm-0.40mm |
Number of wires | 2 | 4 | 8 | 16 |
Mechanical speed | Max.30m/s | Max.25m/s | Max.30m/s | Max.30m/s |
Number of dies | Max.24 | Max.24 | Max.22 | Max.22 |
Drawing capstan diameter | 150mm | 150mm | 100mm | 100mm |
Finished capstan diameter | 150mm | 150mm | 100mm | 100mm |
Annealing contact pulley | 200mm | 200mm | 140mm | 140mm |
Annealing current | 600A DC | 2000A DC | 2000A DC | 2500A DC |
Annealing power | Max.30KW | Max.120KW | Max.110KW | Max.120KW |
Bobbins | PDN630/DIN630 | PDN630/DIN630 | PDN630/DIN630 | PDN630/DIN630 |
Main capacity | 60KVA | 120KVA | 300KVA | 400KVA |
We Lint Top Cable Technology Co., Ltd, is experienced in exporting wire and cable machine to North Africa, South America, Southeast Asia, ets. The main machine including: Wire drawing machine, wire stranding machine, coiling and packing machine, testing machine, etc.
