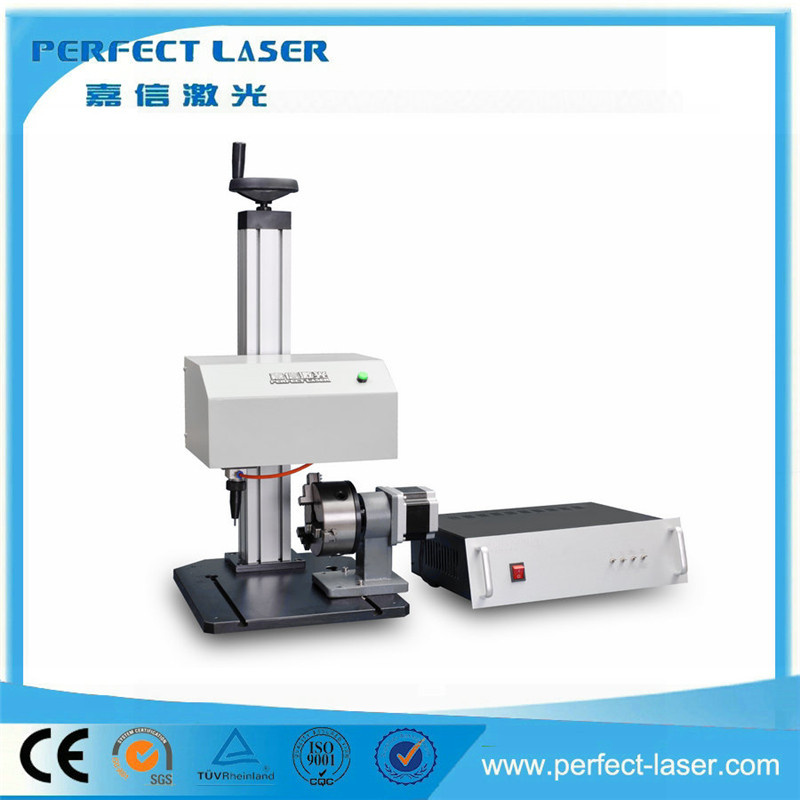

Nameplate DOT Peen Marking Machine
DOT Peen Marking Machine Product Description:
PERFECT PEQD-series DOT peen marking machine (also call pin marking machine/stylus marker) is a kind of pneumatic marking machine that works by the vibration caused by the compressed air and the mechanical device. This type machine is used to mark on various metals and other hard plastic, such as steel, aluminum, and acrylic. The DOT peen marking machine is an industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal / no-metal materials) permanently.
DOT Peen Marking Machine Features:
1. The marking pin/ needle adopt imported hard alloy, and is made up by precision mould and molding for once. The rigidity of marking needle can reach-92HRA. Its' excellent processing ability during work ensures the accuracy of high-speed marking & can make perfect marks on the work-pieces.
2. Perfect Laser's DOT peen marking machine adopts American MAC "High-Frequency Valve". The vibration lifespan can reach 0.1-0.2 billion times, so as to ensure the long and stable operation of the machine.
3. Adopt Japan OMRON "positioning switch", which can guarantee high accuracy& steadily performance.
4. Adopt Germany import "linear-moving guide rail", can automatically lubricate & air-proof as well as dust-proof. Therefore, it guarantees the equipment with long-time stable performance & high accuracy.
5. This DOT peen marking machine is operated by WINDOWS software. The interface is friendly and easy. With a particular "PathPpre-setting" function, the equipment will be much easy to use during processing of the work-pieces. The function "self-inspection for common malfunction" makes a convenient & quick maintenance for operators.
6. Adopt "marking steel-sheath system", which own-exploited by PERFECT LASER, had solved the problem of big-noise that frequently occurred in DOT peen marking machine during marking processing. What's more, with the advantages of little abrasion rate & only require about 0.2Mpa air pressure, so our machines are economical to avoid unnecessary wasting in energy & cost.
7. The lifetime could exceed 10 years. The average MTTF could exceed 15000 hours. This machine is free of maintenance and low running cost.
8. Perfect Laser's DOT peen marking machine can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.
9. This DOT peen marking machine can support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows.
| Item | Desktop Dot peen marking machine |
| Model | PEQD-100 |
| Marking Area: | 150× 100mm | 200× 100mm | 300× 200mm | 400× 300mm | customized |
| Marking Depth: | 0.01~2mm |
| Marking Speed: | ≤ 50mm/s (for characters height of 3mm / 3-4 numbers /second) |
| Air Pressure | 0.2-0.6Mpa |
| Z Axis Lifting Range: | 0-300 mmor customized |
| Marking Accuracy: | 0.01 mm |
| Pin Hardness: | HRC 73 |
| Power Supply: | 220V, 50HZ |
| Air Pressure: | 0.2-0.6 Mpa |
| Machine Power: | ≤ 400 W |
| Working Environment: | -5~40 |
| Whole Machine Weight: | 60 Kgs |
| Measurement: | 0.3 m 2 |
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional
We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
Reliable Quality
Approved by ISO9001 and European CE certified, have excellent quality and reliable quality. We have full experience in R&D, manufacturing, sales, exporting and after-sales services.
24 hours Technical Support
Perfect Laser offer you the overall pre-sales service, including free pre-sales consulting, free sample making, factory-visiting is available for you any time. We offer 24 hours after-sales service.
Any kind of technical support are available for users.
Flexible Payment
With products exported to over 180 countries and regions, we have adequate funds circulation, we accept flexible payment terms to reduce your financial pressure.
Customer-Oriented
Perfect Laser always hold the banner of matching the needs of users of services throughout the course of service. We committed to grow together with customers and partners.
