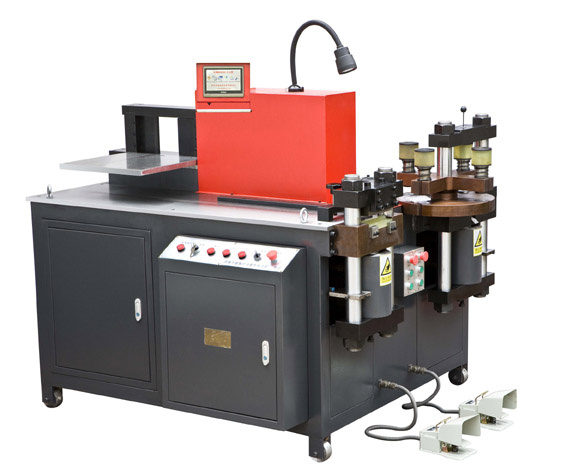

MX-303TS NC BUSBAR PROCESSING MACHINE

This machine is special for processing aluminum and copper busbars used in electric power, high/low voltage electric apparatus and busway industries. It combines punching, cutting and bending functions together as well as some other functions such as embossing, twisting, flatting, pressing tie-in, etc.
I Main features:
1.1 Angle bending accuracy: +/- 1°
1.2 Special punching mould, no pressing marks to the workpiece surface
1.3 Special turret punch structure, with 4 punching heads, one time can punch 4 kind of holes without stopping machine to change tools
1.4 Cutting device adopts patent double-column structure, smooth cut, no waste, no burr
1.5 Double worktable for bending station, real separate working
1.6  PLC control bending, bending angle can be pre-set and saved
II Main technical data:
2.1 For punching:
  Max. punching pressure: 300kN
  Hole diameter: 4.3-25mm
  Max. thickness: 12mm
  Max. width: 160mm
  Punching heads: 4 sets mounted on the machine (from 4.3~25mm)
2.2  For cutting:
  Max. cutting thickness: 12mm
  Max. cutting width:160mm
2.3 For bending:
  Max. bending pressure: 300KN
  Max. bending width:160mm
Max. bending thickness: 12mm
Equipped with two bending tools: R5 and R10
2.4 For vertical bending:
  Max. bending width: 120mm (10mm thick copper)
  Min. bending angle: 90°
2.5  Dimension: 1700 x 1350 x 1500mm
2.6  Weight: about1390kg
2.7  Main driving motor power: 4kW x 3
III Main configuration
3.1 Main driving motors: from Taiwan
3.2 Oil pumps: from Taiwan
3.3 Electromagnetic valves and overflow valves: from Taiwan
3.4 Relays: Schneider
3.5 Contactors: Schneider
3.6 Other electric parts: from China
3.7 PLC: Panasonic from Japan
3.8 Touch screen: 7" big size from domestic
IV Accessories
4.1 Punching moulds: 8 sets (sizes can be selected)
4.2 Cutting blade: one piece
4.3 Horizontal bending moulds: two sets
4.4 Vertical bending moulds: one set
4.5 Embossing mould: one set
4.6  Tool kit: one
4.7 Foot switches: 3 pieces
