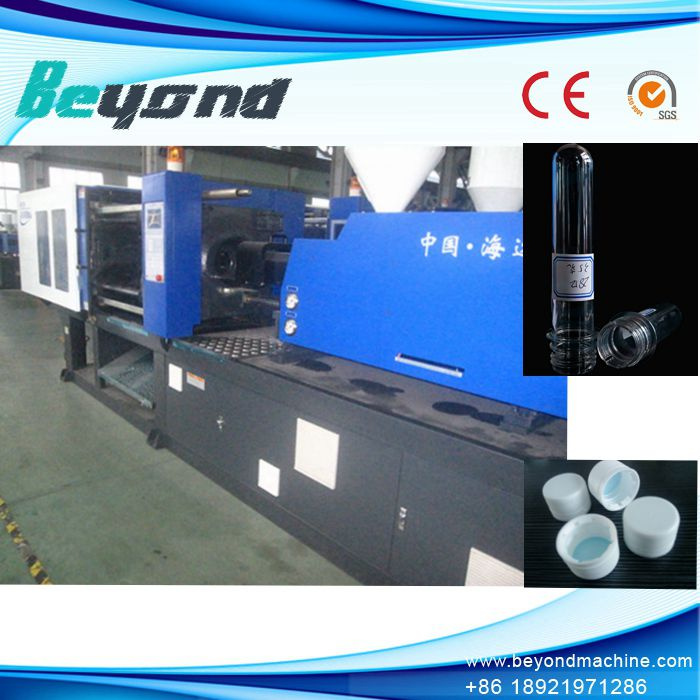

new automatic plastic injection moulding machine[BY-1680]
Specification
| Item | unit | A | B | C |
| Screw Diameter | mm | 42 | 48 | 50 |
| Shot Volume(Theoretical) | cm3 | 318 | 390 | 415 |
| Injection Weight(PS) | g | 346 | 452 | 490 |
| Injection Pressure | Mpa | 225 | 172 | 158.4 |
| injection rate | g/s | 108 | 128 | 158 |
| Plasticizing ability (PS) | g/s | 15.8 | 20 | 24.7 |
| Screw Speed | r/min | 0-185 |
| Heater Power | KW | 7.5 |
| Clamp Tonnage | KN | 1680 |
| Space Between Tie Bars | mm | 460*460 |
| Max. Mold Height | mm | 500 |
| Min. Mold Height | mm | 180 |
| Move mould trip | mm | 420 |
| Hydraulic ejection trip | mm | 130 |
| Max. Pump Pressure | Mpa | 16 |
| Pump Motor Power | kw | 15 |
| Machine Dimensions (L×W×H) | m | 5.1*1.4*1.9 |
| Machine Weight | T | 5 |
Packaging & Shipping
Packaging: International standard export package;
Terms: T/T, 30%down payment, and the balance 70% prior to the delivery out of factory. L/C, 30% down payment, and 70% L/C at sight
Shipping: 30 working days after receiving 30% deposit of total amount of contract or irrevocable L/C at sight.
