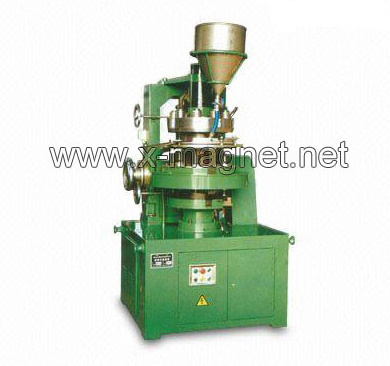

New Design Hot Sale Dry Powder Rotary Molding Press
General Description
1. YX series rotary dry powder molding presses are dedicated designed with compacting structure, precision machining, high production, the consistency of each product manufactured by different working positions are ensured
2. The different positions' structure is designed based on the three coaxial disks from up to down.
3. Those molding presses are quite suitable for bulk manufacturing of small compacting pieces
Features:
1. High production efficiency, low error rate
2. Simple to operate and less labor intensity is needed
3. Dual-directional feeding with same pressure from each side, the consistency of compacting pieces is good
4. Mainly applicable for bulk dry powder molding and producing of ferrite, electrical ceramic, powder metallurgy
| Model | YX200 | YX290 | YX300 |
| reverting rotary dia. (mm) | 200 | 290 | 300 |
| Compacting position | 8.9 | 10, 12 | 9, 10, 12 |
| Formed Rough Dia. (mm) | Φ 12 | Φ 12 | Φ 20 |
| Die Mold Dimension(mm) | Φ 40× 40 | Φ 40× 40 | Φ 50× 75 |
| Pressure(t) | 3 | 5 | 7 |
| Max. Feeding Height(mm) | 33 | 38 | 70 |
| Guide Track Specification | 15, 25, 35 | 20, 26, 32, 38 | 26, 34, 42, 50, 58, 64, 72 |
| Working Table Rotary Speed(r/min) | 15 | 5~20 | 5~15 |
| Motor Power(kW) | 1.5 | 4 | 5.5 |
| Overall Dimension(L× W× H)mm | 580× 550× 1500 | 810× 790× 1600 | 850× 850× 1700 |
| Weight(t) | 0.45 | 1 | 1.3 |
| Transmission Mode | Motor Brake | Electrical ClutchElectrical Brake |
| Working Voltage | 380V/50Hz |
| Lubrication | Forced-lubricating |
| Model | YX400 | YX500 |
| reverting rotary dia. (mm) | 400 | 500 |
| Compacting position | 8.9 | 8.9 |
| Formed Rough Dia. (mm) | Φ 40 | Φ 50 |
| Die Mold Dimension(mm) | Φ 90× 80 | Φ 100× 80 |
| Pressure(t) | 15 | 25 |
| Max. Feeding Height(mm) | 78 | 78 |
| Guide Track Specification | 28, 38, 48, 58, 68, 78 | 28, 38, 48, 58, 68, 78 |
| Working Table Rotary Speed(r/min) | 8/12 | 6/9 |
| Motor Power | 9/12 | 12/17 |
| Overall Dimension(L× W× H)mm | 1100× 1050× 2250 | 1250× 1200× 2350 |
| Weight(t) | 3.5 | 5.1 |
| Transmission Mode | Electrical ClutchElectrical Brake |
| Working Voltage | 380V/50Hz |
| Lubrication | Forced-lubricating |
For more detail info, please feel free to visit our website or inquire us at any of your convenience
www.magnetequip.com
